A/C - Loose Center Vent Adjustments

BODY
BO009-00
REVISED

April 28, 2000

Title:
LOOSE CENTER HVAC VENT ADJUSTMENT

Model:
'98 - '99 CBU Camry

TSB Revision Notice:
There is updated information in this bulletin.

Introduction
A repair procedure has been made available to remedy customer complaints regarding loose vertical adjustment of the center venison 1998 1999 CBU Camry.

Applicable Vehicles
^ 1998 through 1999 model year Japan built Camry.

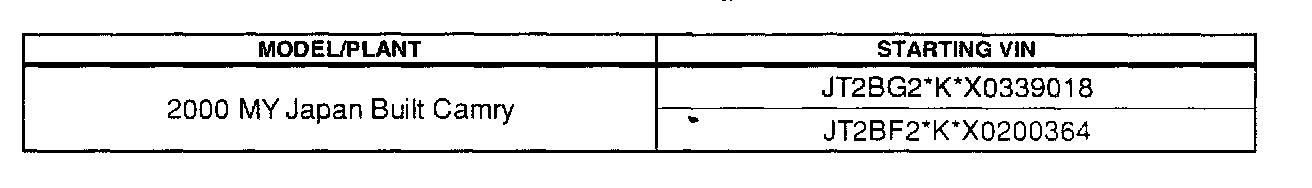

Production Change Information

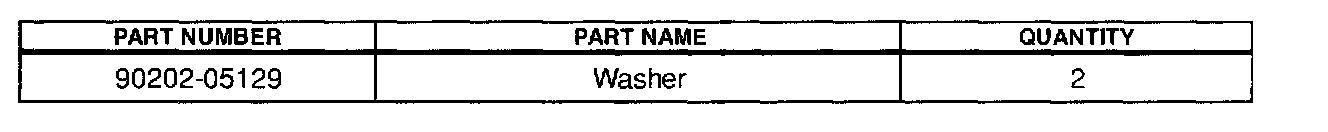

Parts Information

Repair Procedure








1. Remove the left vent barrel by gently prying using a wide flat tool with smooth edges. Be careful not to damage the vent assembly.

2. Install a washer (P/N 90202-05129) on the shaft inside the vent duct.

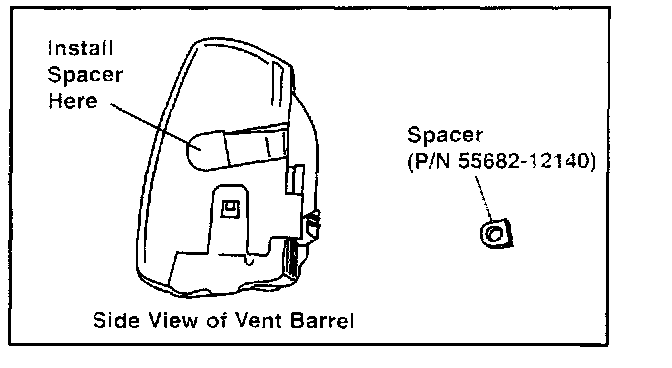

3. Reinstall the vent barrel by carefully pushing it into position until it locks onto the shafts on the sides of the duct. Be sure the spacer and/or washer do not fall down into the vent duct.

NOTE:
The spacer (P/N 55662-12140) can be ordered, if lost.

4. Confirm that the vent vertical adjustment is tighter and moves smoothly.

5. Repeat steps 1 through 4 for the right center vent.

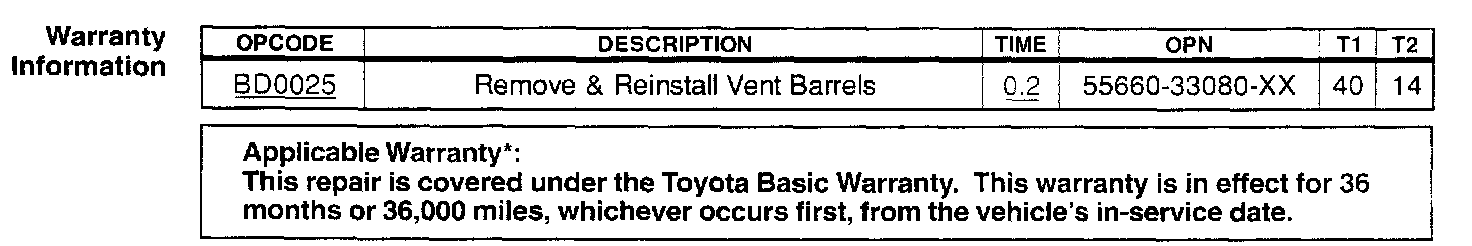

WARRANTY INFORMATION
