Windows - Door Glass Displaced

BODY
BO012-99

Title:
DOOR GLASS DISPLACEMENT FIELD FIX

Models:
'98 - '99 TMMK Camry

September 3, 1999

Introduction

On some 1998 and 1999 Camry Vehicles, the door glass may be displaced from the front door glass run if the door is closed forcefully with the windows partially down. A field fix has been developed in order to remedy this condition.

Applicable Vehicles

^ 1998-1999 TMMK Camrys built before 4T1BG * * K * XU553205
4T1BF * * K * XU084313
4T1BG * * K * XU903993
4T1BF * * K * XU932180

Parts Information

PREVIOUS PART NUMBER CURRENT PART NUMBER PART NAME

N/A 67212-AAO10 Self-Adhesive Stopper





Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint

Repair Procedure

Refer to 1998 Camry Repair Manual (Vol. 2) Pages BO-11-14.

1. Remove the front door trim to gain access to the window components.

2. Inspect the front and rear lower frames and the door glass run for damage as a result of the glass being displaced.

^ In cases of slight deformation of window frames, reform as necessary. If significantly deformed or damaged, replace the frame.

^ Replace the window run if cut, torn, mutilated, etc.

3. Replace any damaged parts.

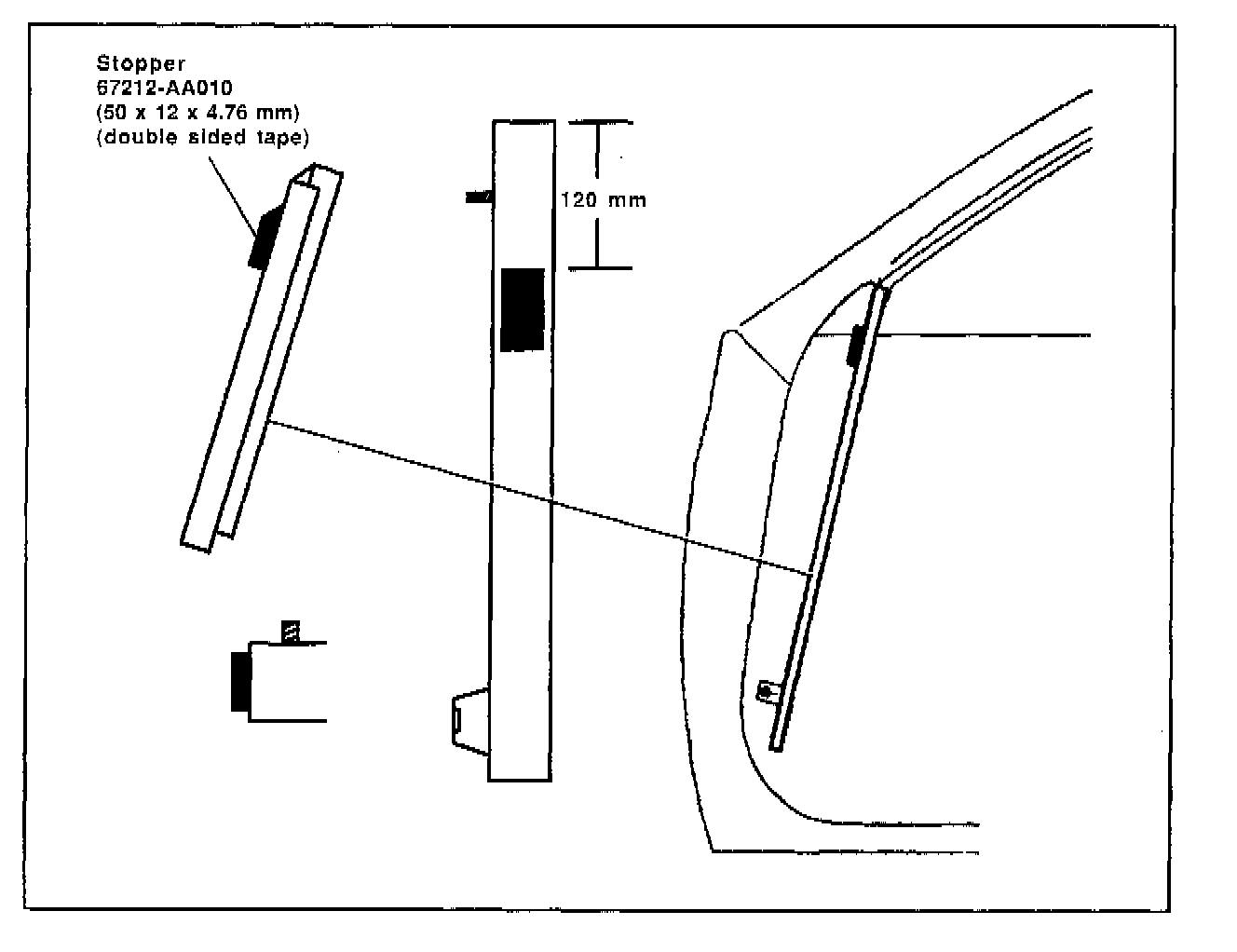

4. Remove front lower frame from the door and attach the self-adhesive rubber stopper (P/N 67212-AAO1O) 120 mm from the top of the frame as shown above.

NOTE:
To insure proper adhesion of the self-adhesive rubber stopper, the surface of the frame must be cleaned to remove any foreign material.

5. Reinstall the front lower frame, door glass run, and door trim.
