Automatic Transmission/Transaxle: Tools and Equipment

PREPARATION

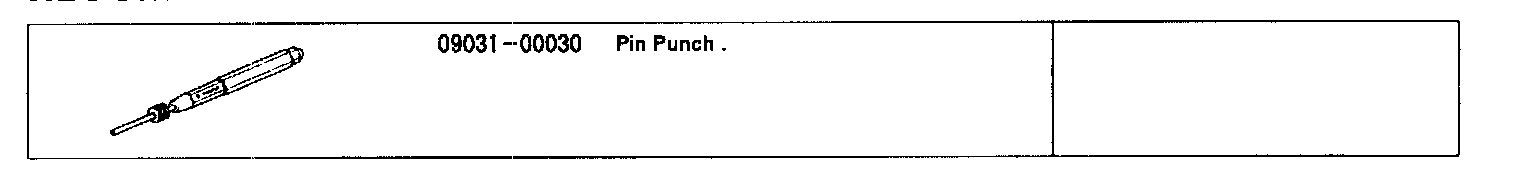

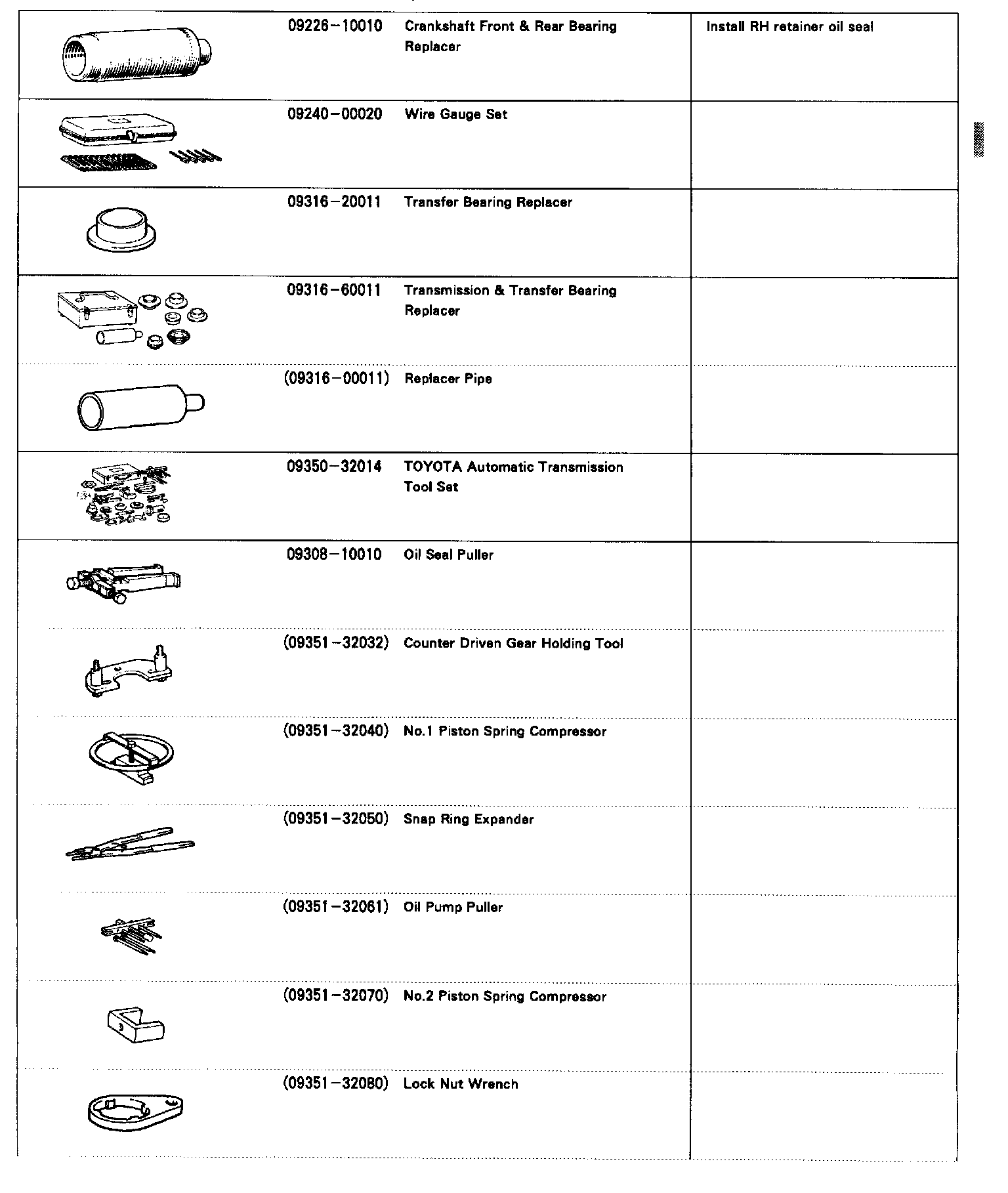

SST (Special Service Tools)





Recommended Tool

Equipment
Feeler gauge: Check major clearance.
Vernier calipers: Check length of second coast brake piston rod.
Dial indicator with magnetic base: Check piston stroke and end play of the output shaft.
Dial indicator: Check inside diameter of major bushing.
Straight edge: Check side clearance of oil pump.
Torque wrench

Lubricant
Automatic transaxle fluid:
Dry fill: 6.75 liters (7.10 US qts. 5.94 Imp. qts.)ATF D-II DEXRON III (DEXRON II)
Drain and refill: 2.5 liters (2.6 US qts. 2.2 Imp. qts.)
Differential oil: 0.85 liters (0.89 US qts. 0.75 Imp. qts.) ATF D-II or DEXRON III (DEXRON II)

SSM (Special Service Materials)
08826-00090
Seal Packing 1281: Differential LH retainer
THREE BOND 1281 or equivalent (FIPG): Differential RH retainer
08833-00070
Adhesive 1324: Differential RH retainer set bolt
THREE BOND or equivalent
