B0102

CIRCUIT DESCRIPTION

The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component,
See DESCRIPTION AND OPERATION.
Description and Operation
DTC B0102/11 is recorded when a ground short is detected in the D squib circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE

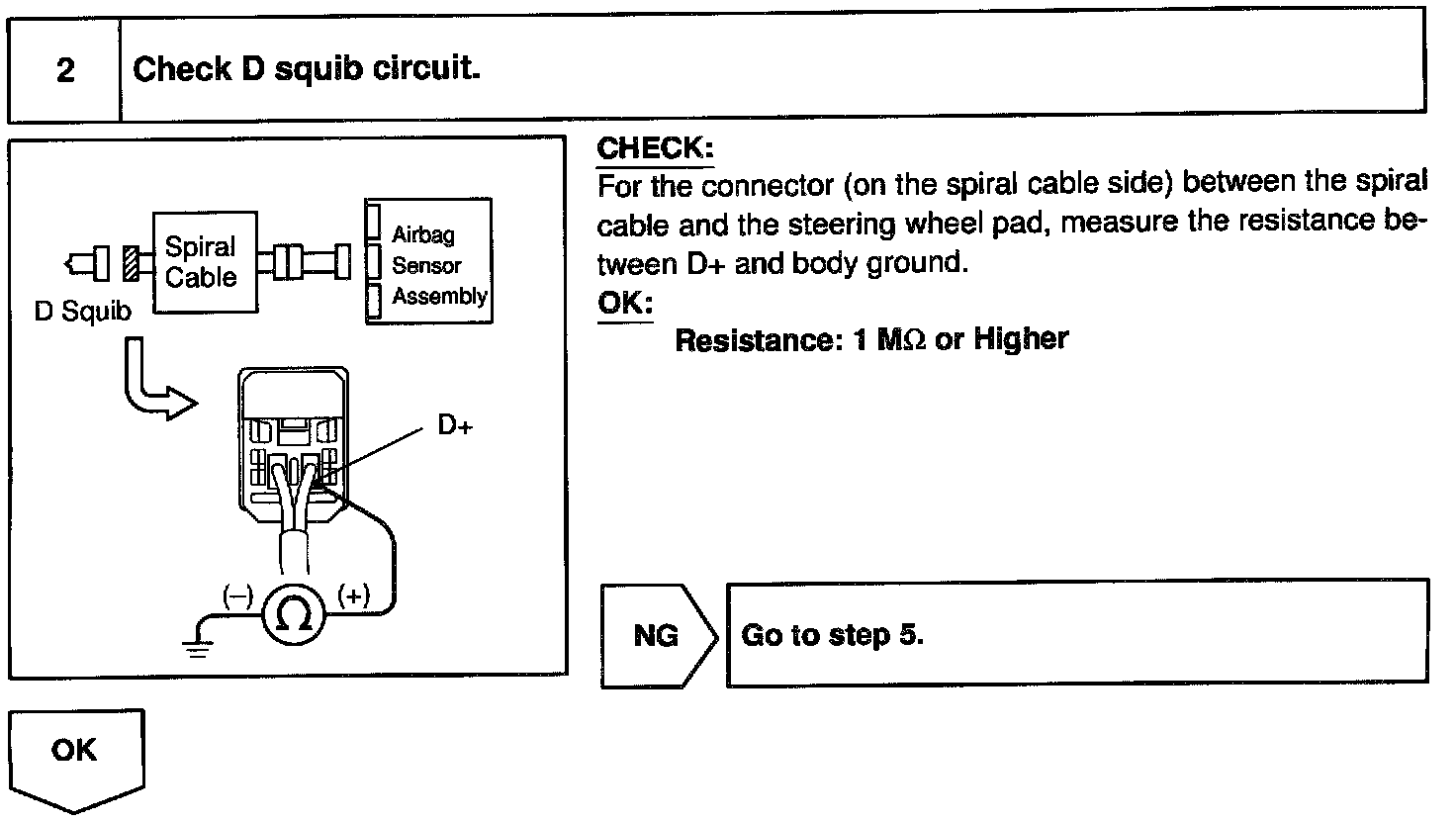

Step 1:

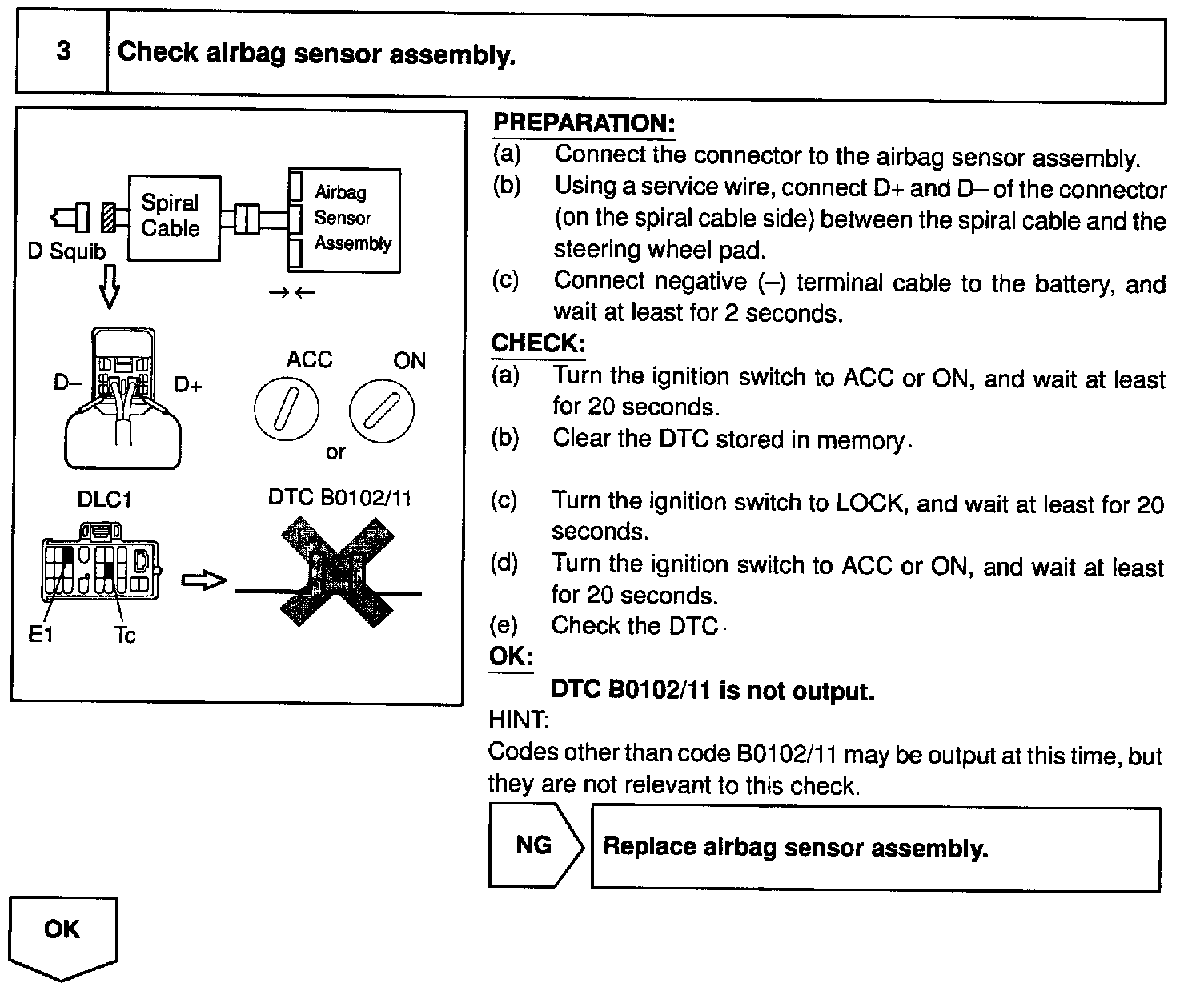

Step 2:

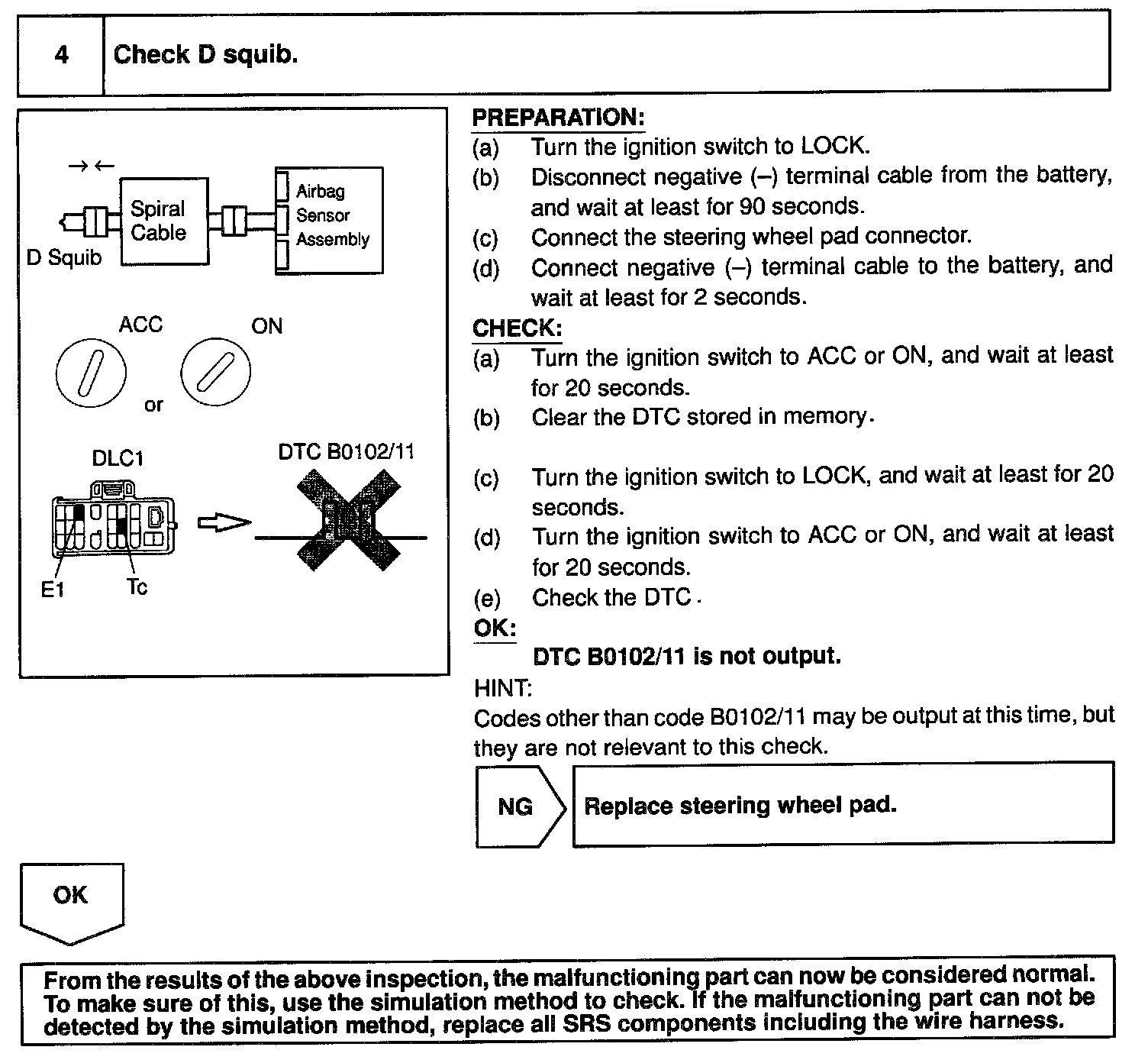

Step 3:

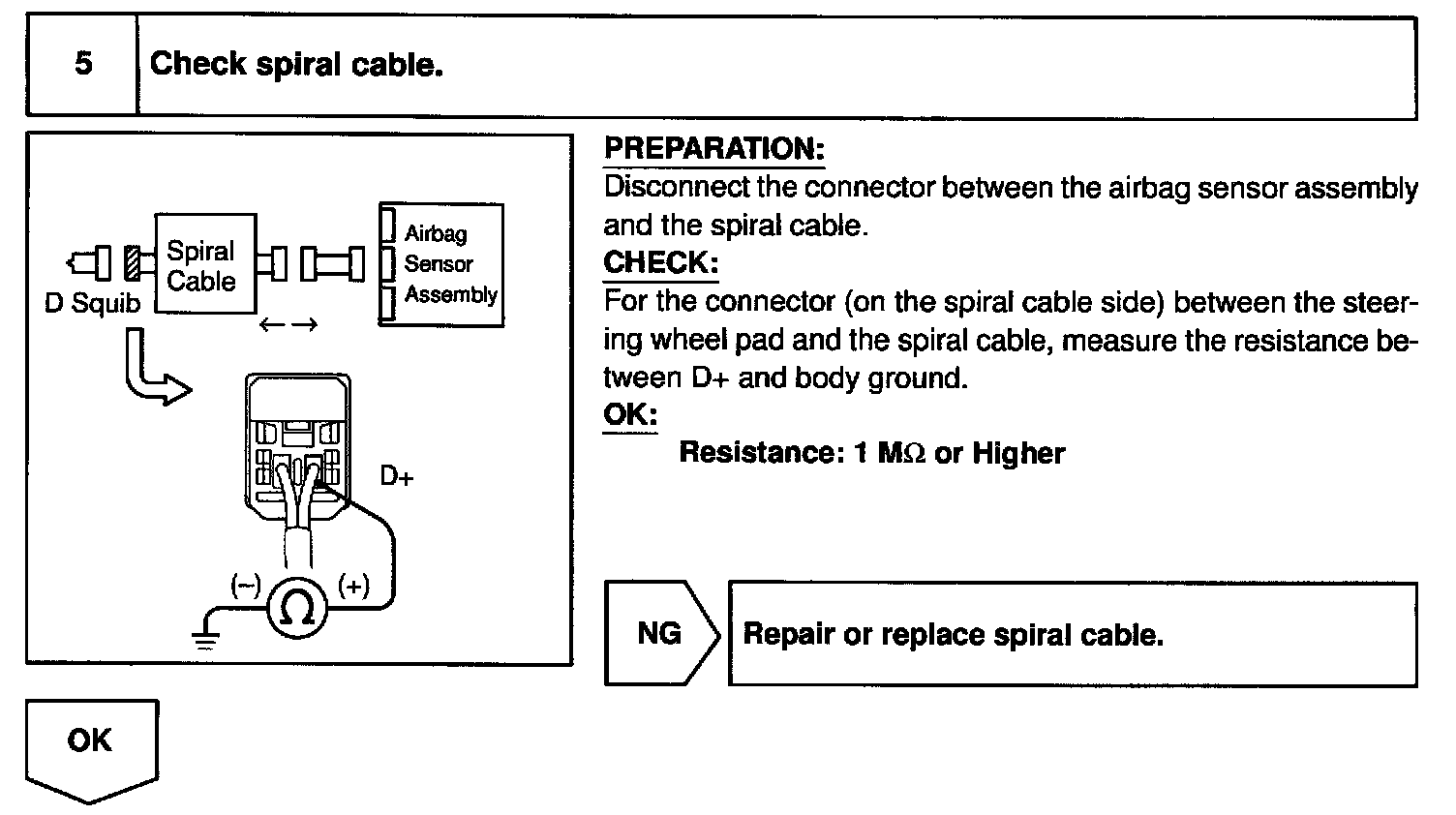

Step 4:

Step 5:

Step 6:
