B0103

CIRCUIT DESCRIPTION

The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each components,
See DESCRIPTION AND OPERATION.
Description and Operation


DTC B0103/12 is recorded when a B+ short is detected in the D squib circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE

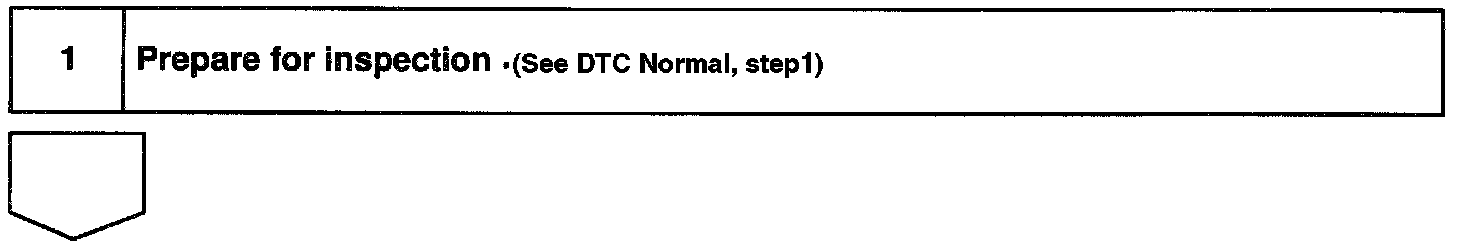

Step 1:

Step 2:

Step 3:

Step 4:

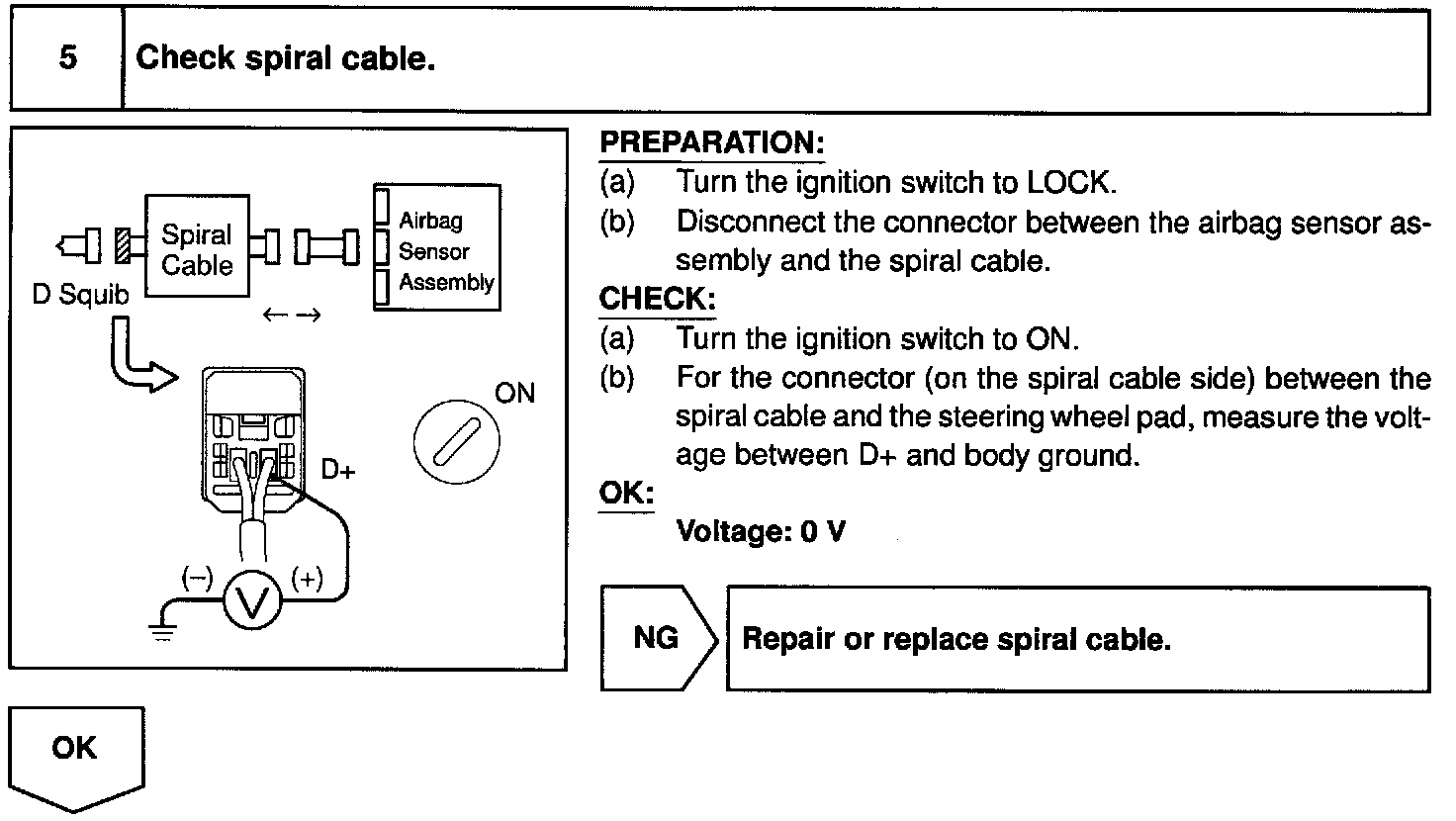

Step 5:

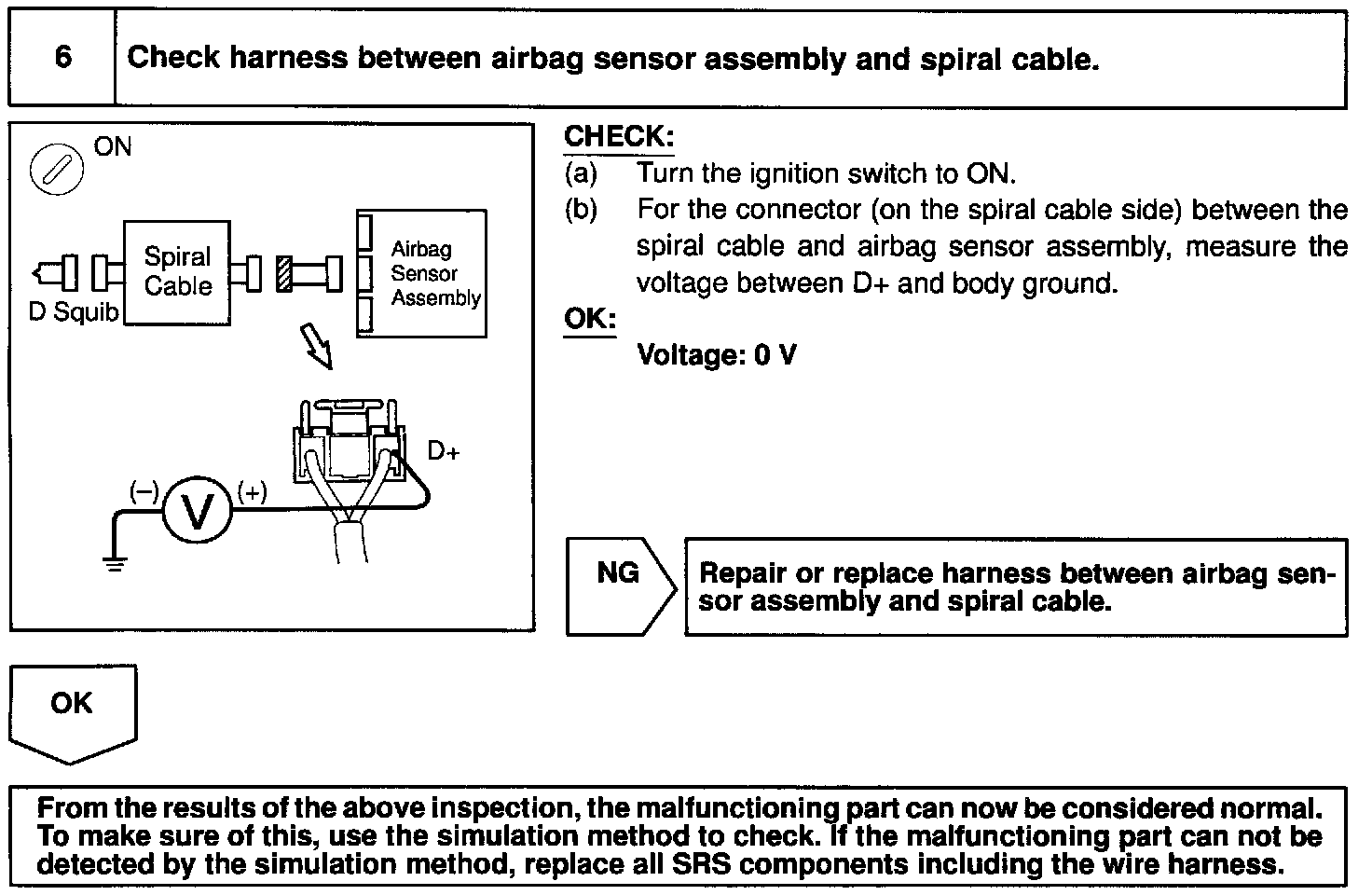

Step 6:
