C0273

CIRCUIT DESCRIPTION
The ABS motor relay supplies power to the brake actuator pump motor. While the ABS & BA & TRAC & VSC are activated, the ECU switches the motor relay ON and operates the brake actuator pump motor.

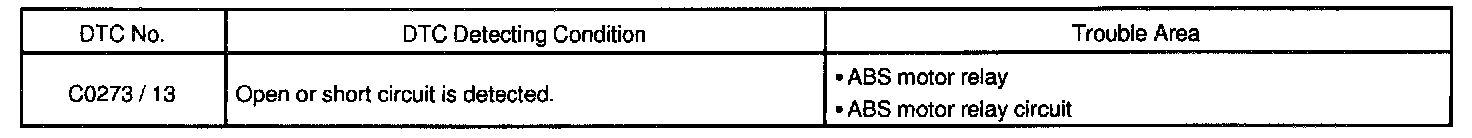

DETECTING CONDITIONS

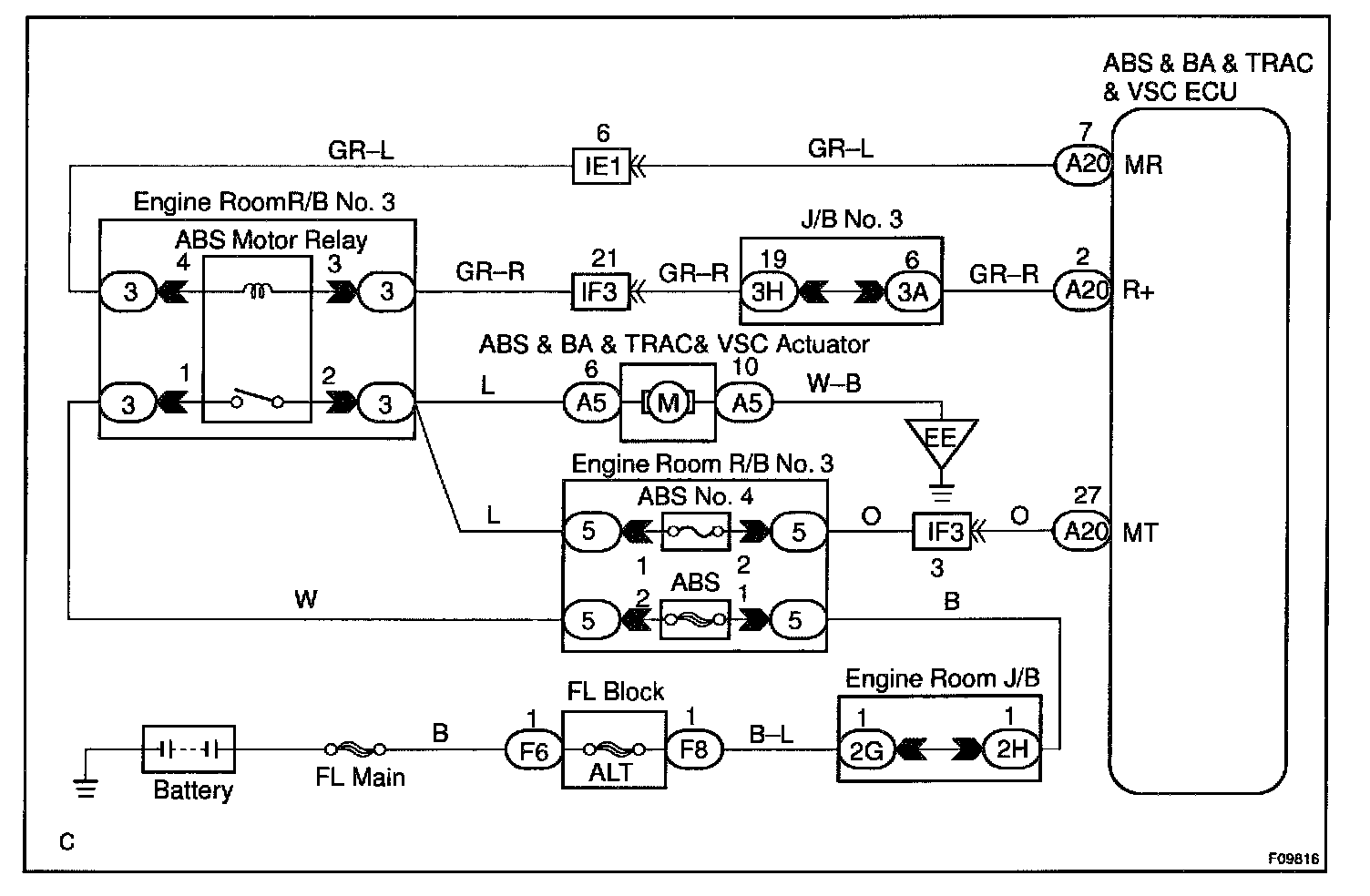

WIRING DIAGRAM

Step 1:

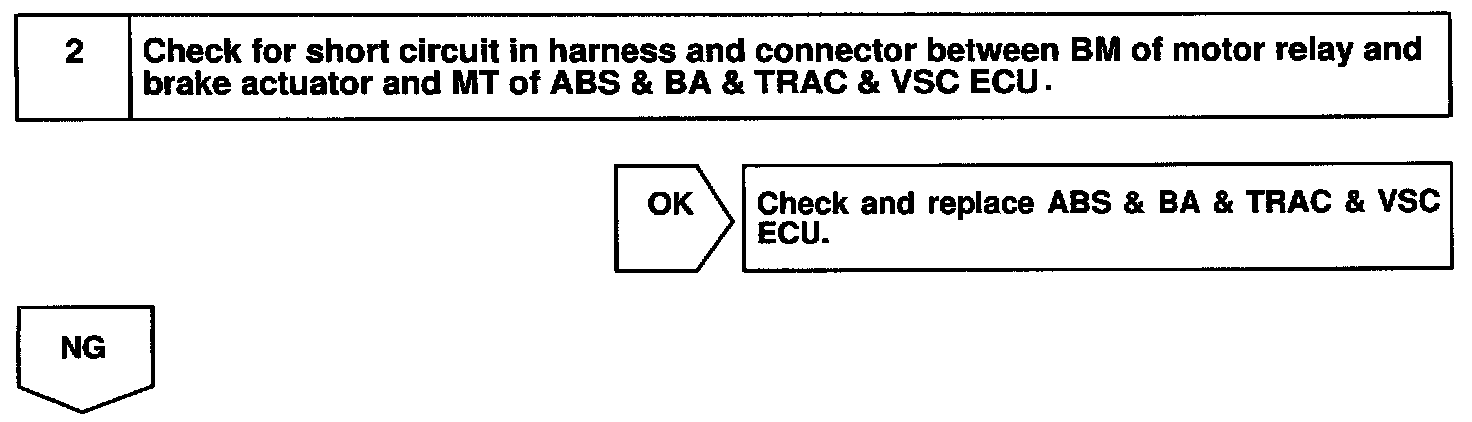

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

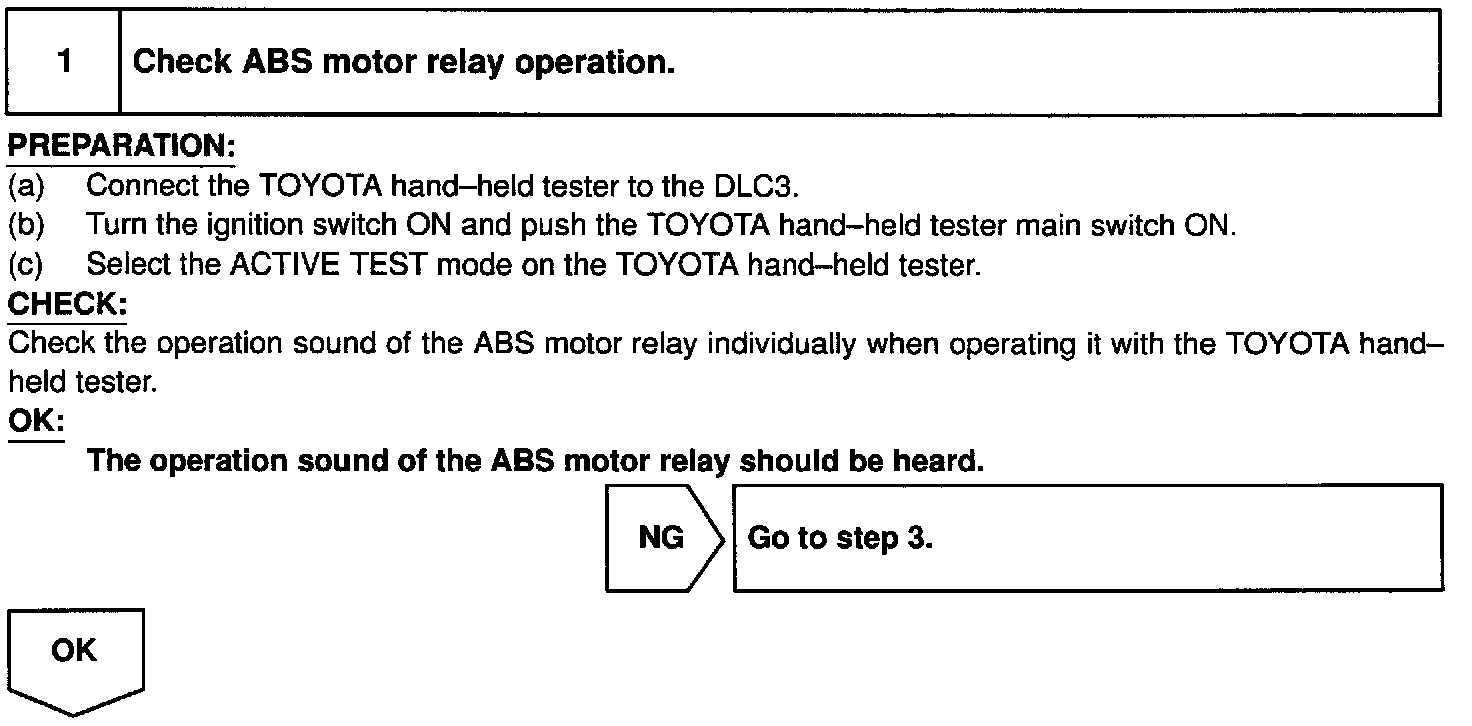

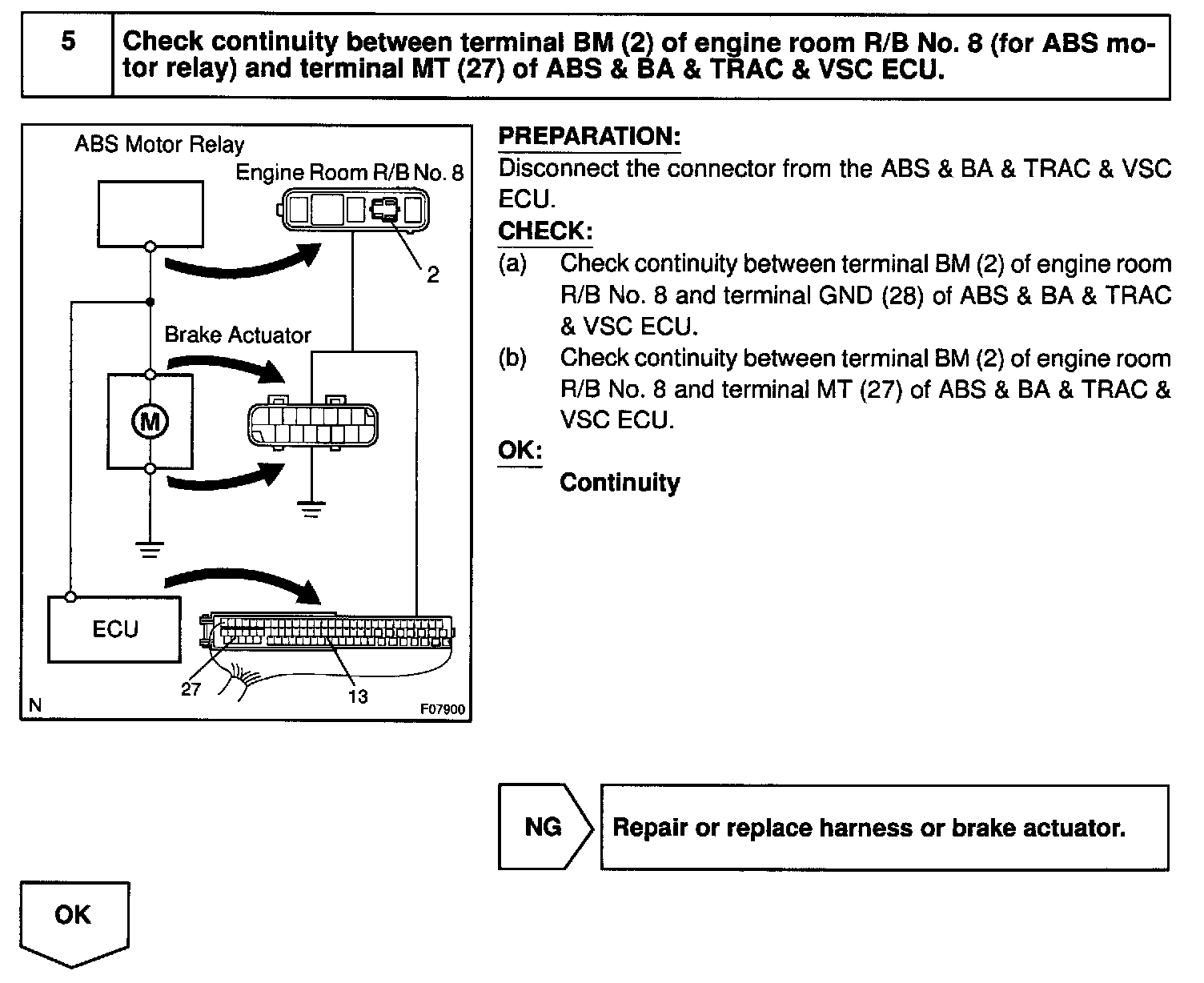

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the TOYOTA hand-held tester and start from step 2 in case of not using the TOYOTA hand-held tester.
