C0278

CIRCUIT DESCRIPTION
This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.




DETECTING CONDITIONS

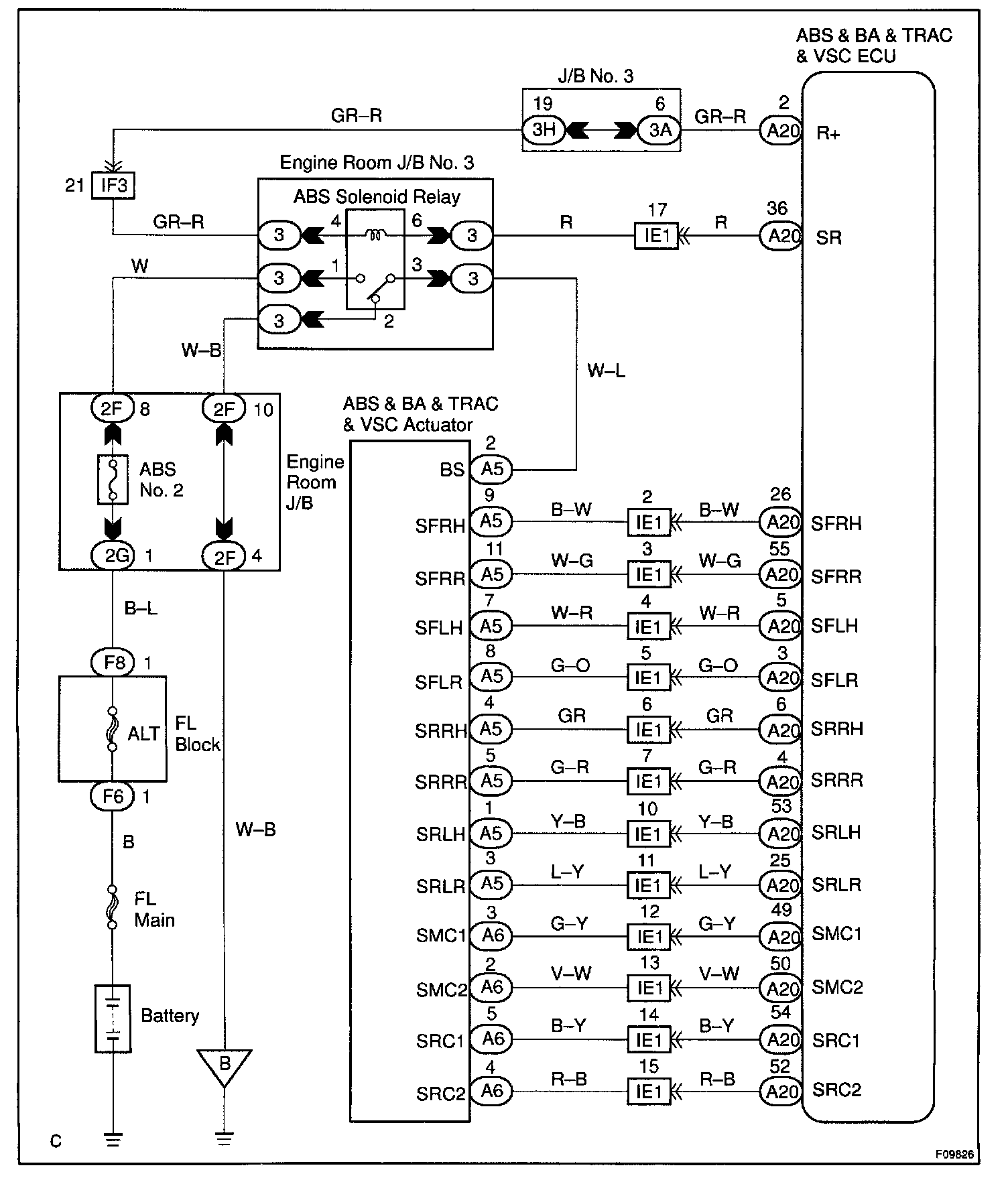

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

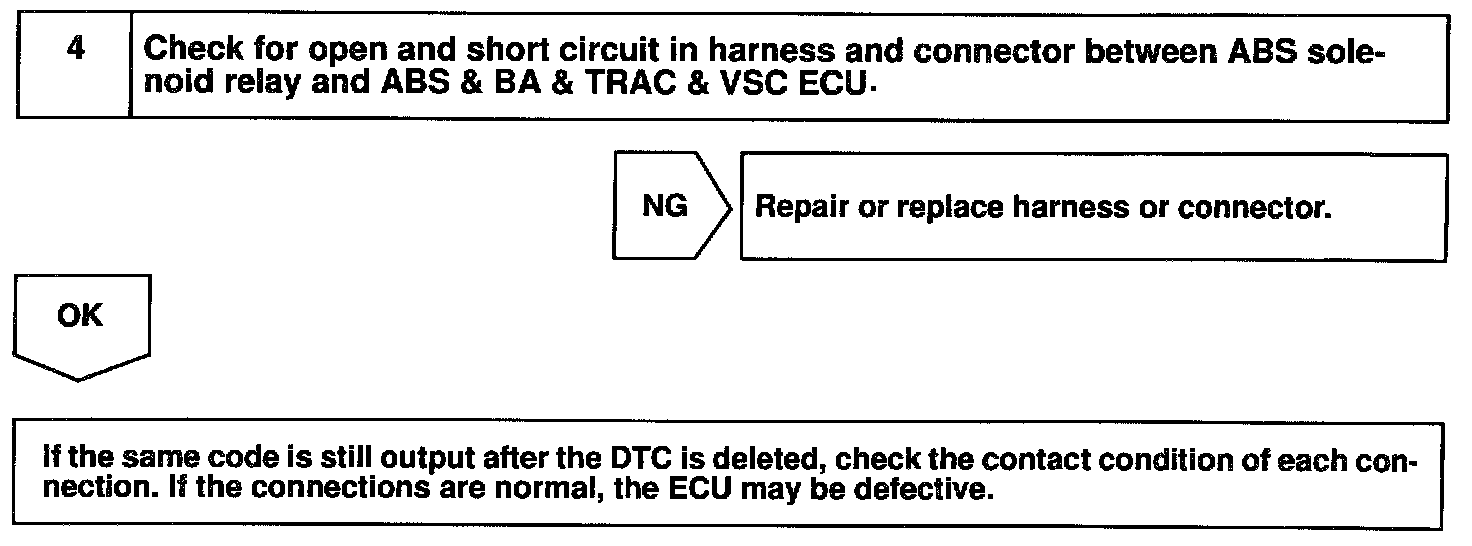

INSPECTION PROCEDURE
