C1246

CIRCUIT DESCRIPTION

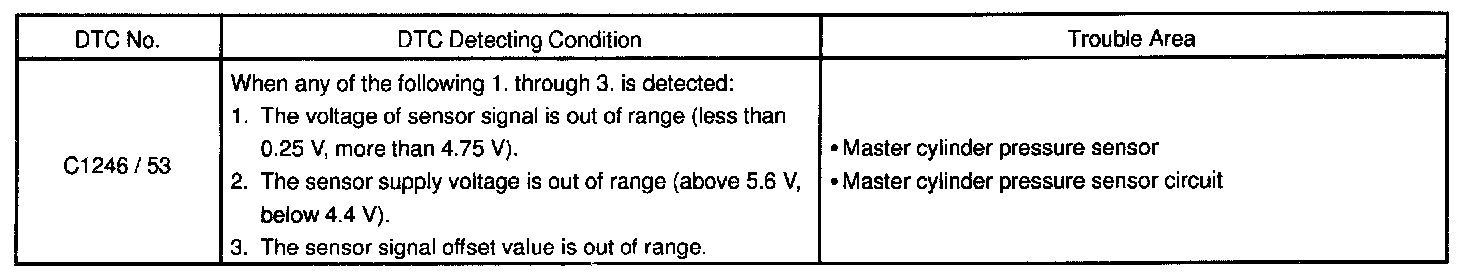

DETECTING CONDITIONS

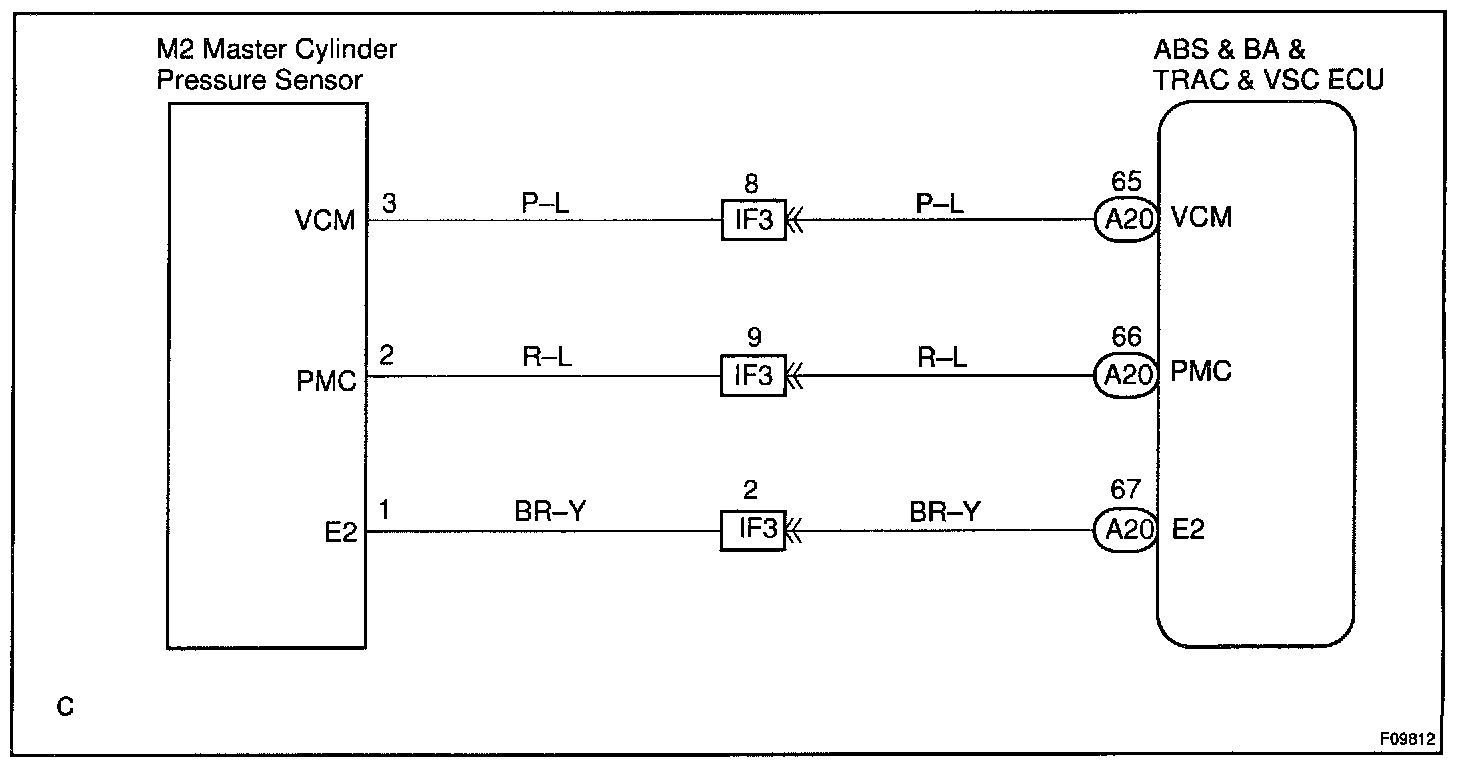

WIRING DIAGRAM

Step 1:

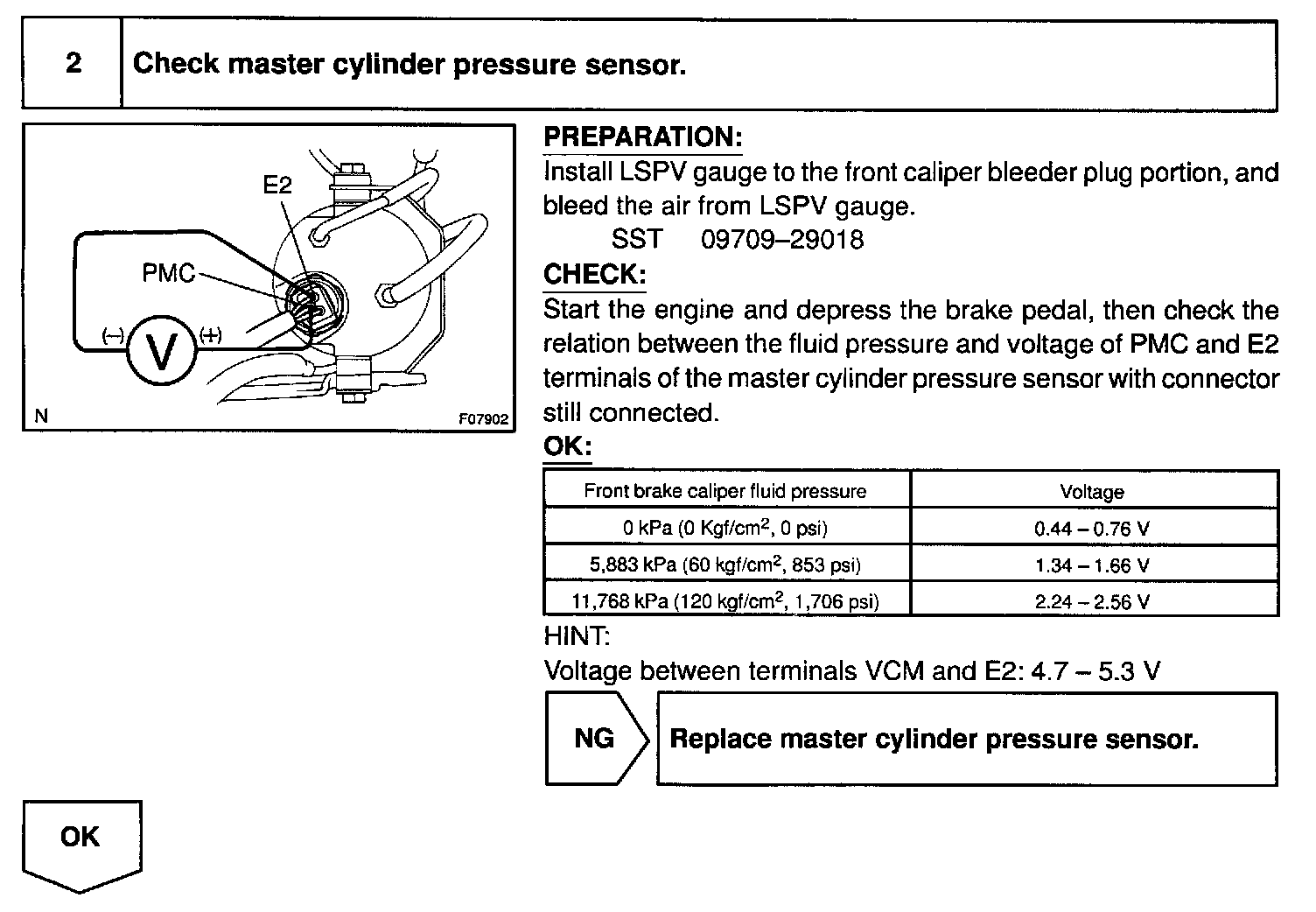

Step 2:

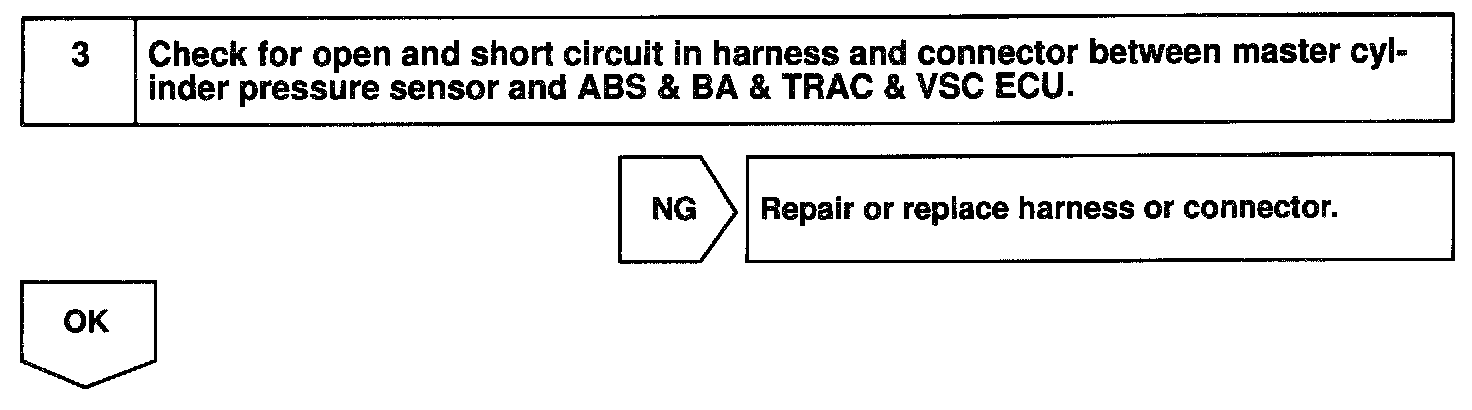

Step 3:

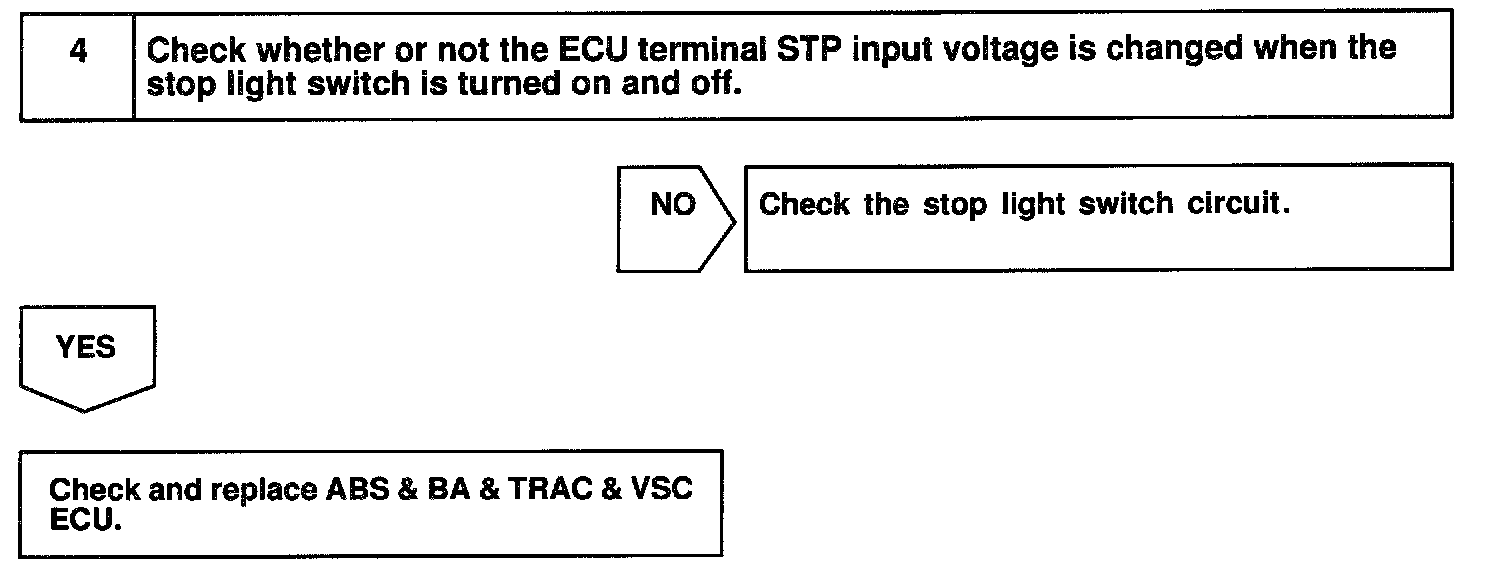

Step 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1, in case of using the TOYOTA hand-held tester and start from step 2, in case of not using the TOYOTA hand-held tester.
