C1301

CIRCUIT DESCRIPTION
The circuit is used to send TRAC & VSC control information from ABS & BA & TRAC & VSC ECU to the translate ECU (VSC+, VSC-), engine control information and steering angle information from translate ECU to ABS & BA & TRAC & VSC ECU




DETECTING CONDITIONS




WIRING DIAGRAM

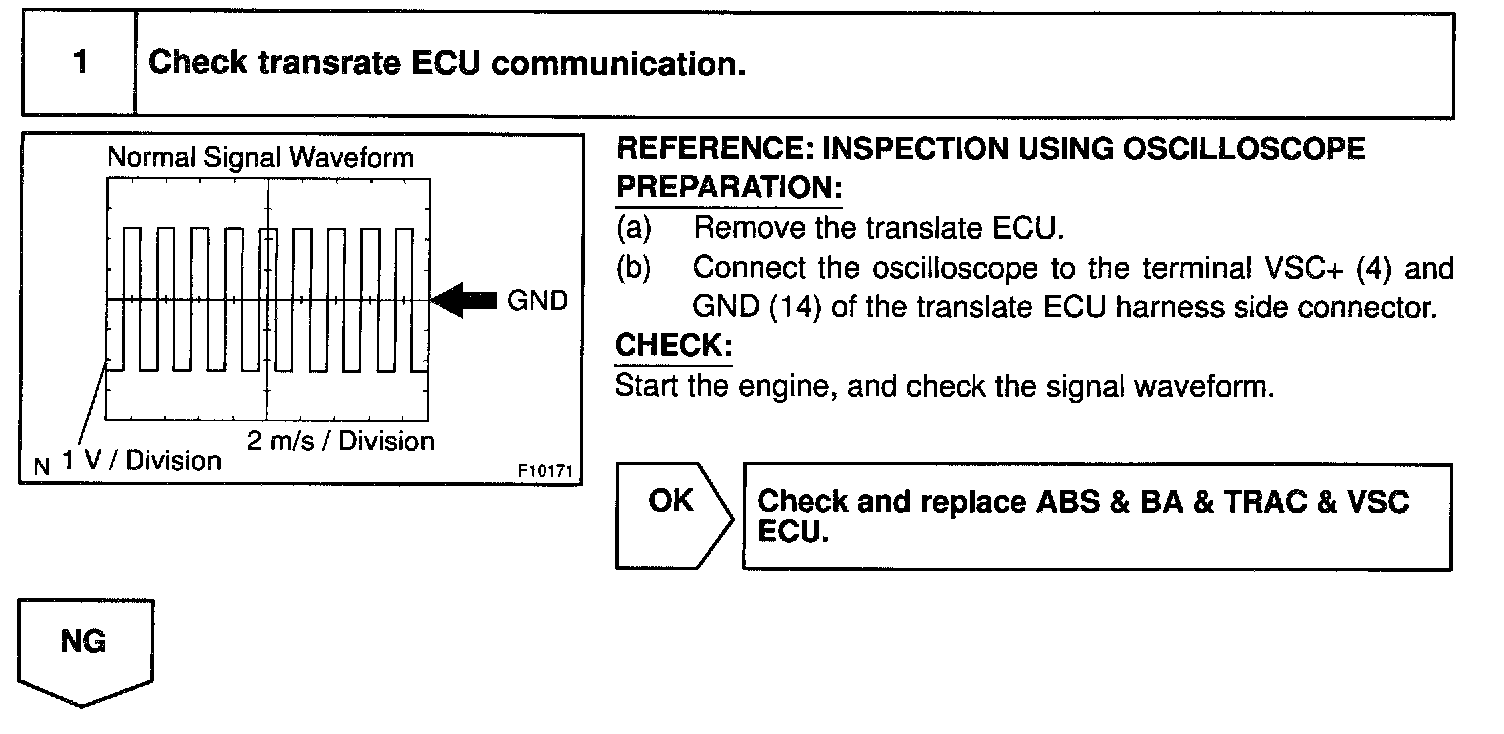

Step 1:

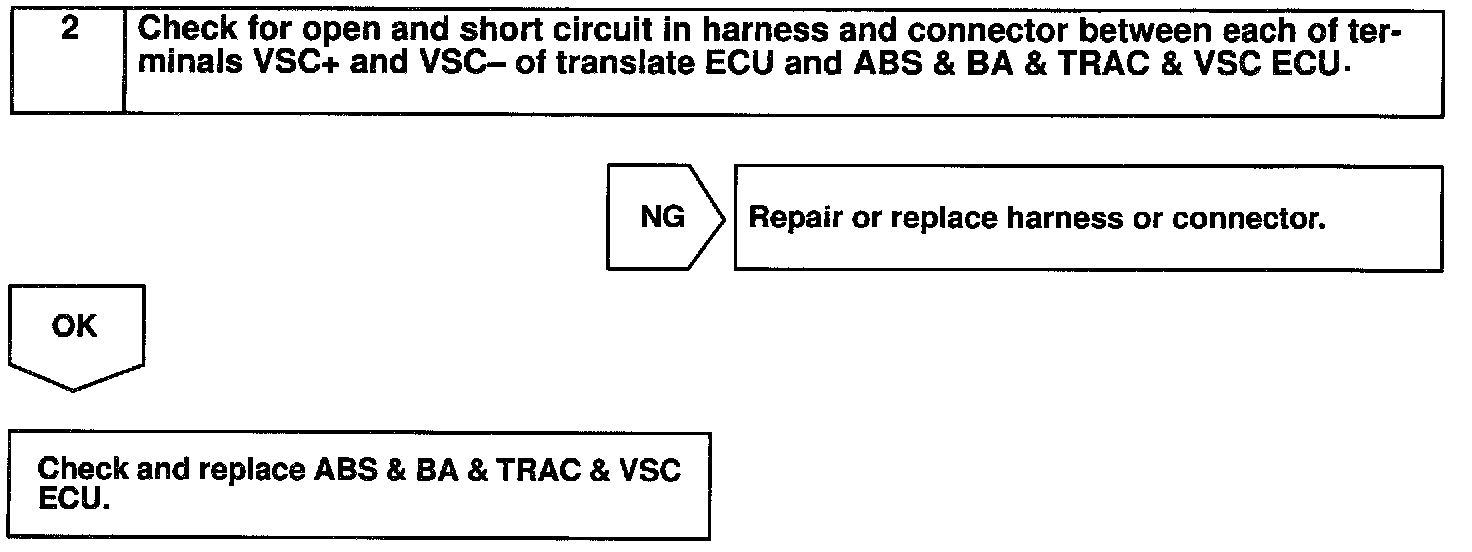

Step 2:

INSPECTION PROCEDURE
