Air Conditioning System

CIRCUIT DESCRIPTION




A photo diode in the solar sensor detects solar radiation and sends signals to the A/C control assembly.

Detection Item:

Wiring Diagram:

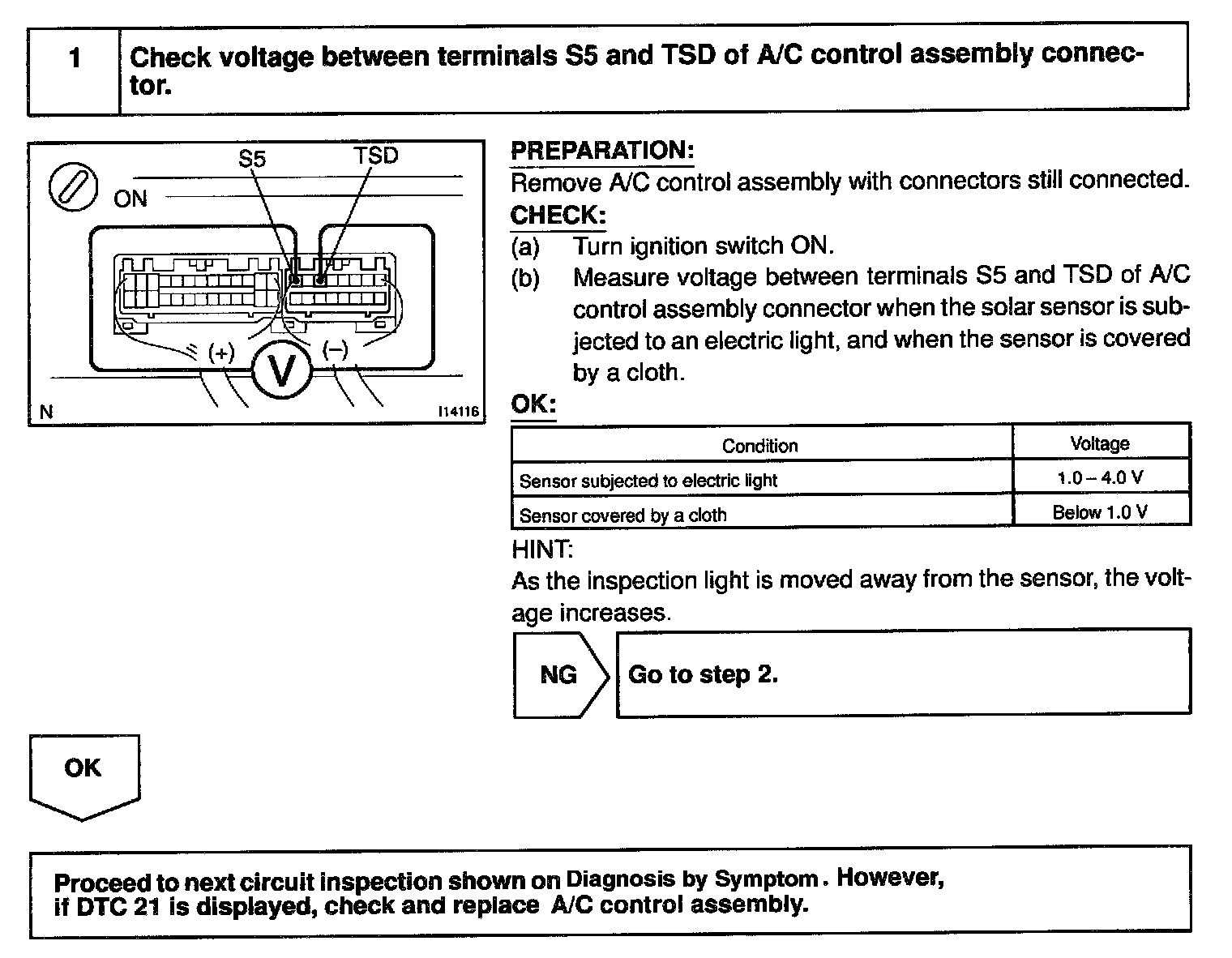

Step 1:

Steps 2 - 3:

INSPECTION PROCEDURE
