Column Shift

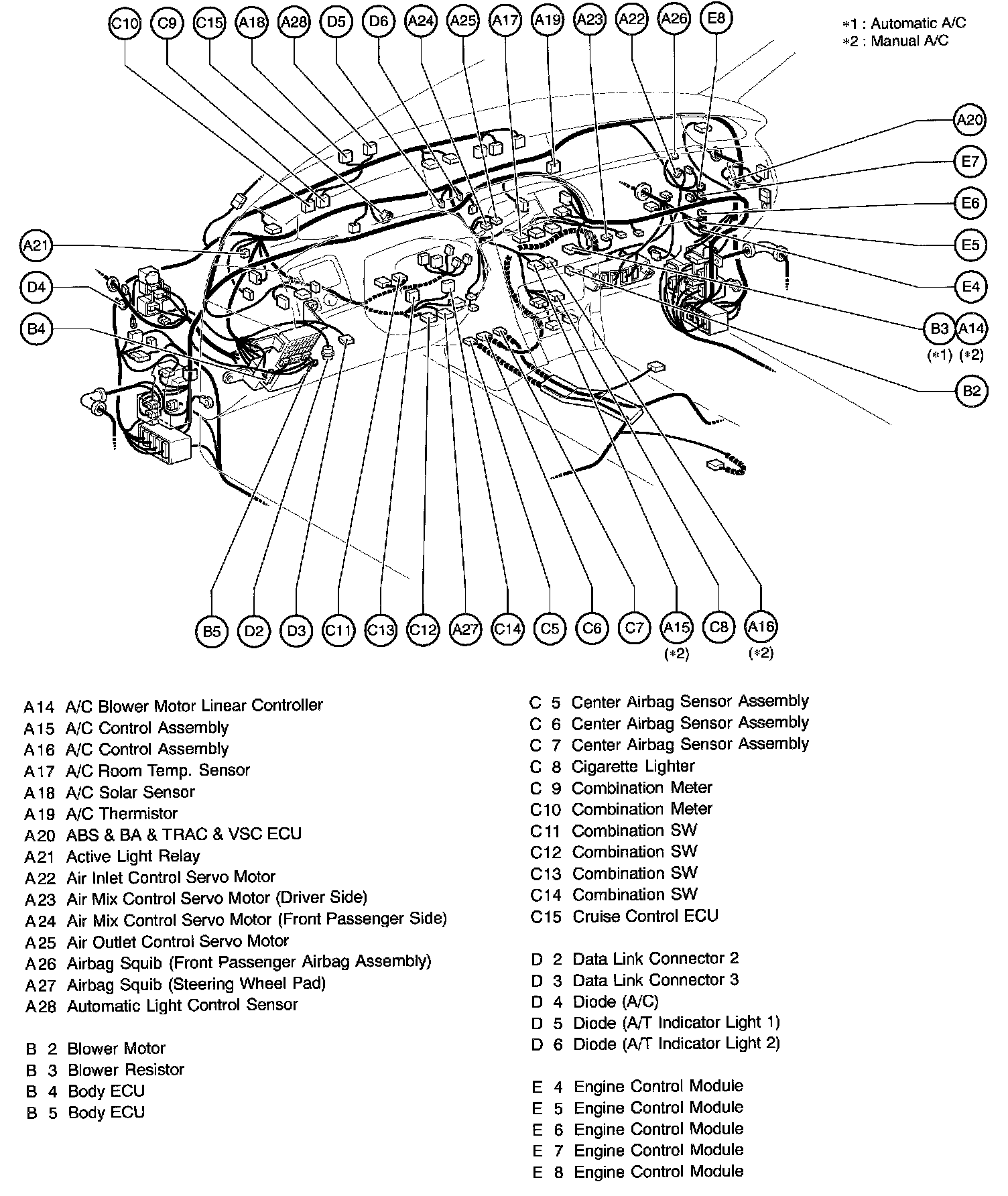

A14 A/C Blower Motor Linear Controller
A15 A/C Control Assembly
A16 A/C Control Assembly
A17 A/C Room Temp. Sensor
A18 A/C Solar Sensor
A19 A/C Thermistor
A20 ABS & BA & TRAC & VSC ECU
A21 Active Light Relay
A22 Air Inlet Control Servo Motor
A23 Air Mix Control Servo Motor (Driver Side)
A24 Air Mix Control Servo Motor (Front Passenger Side)
A25 Air Outlet Control Servo Motor
A26 Airbag Squib (Front Passenger Airbag Assembly)
A27 Airbag Squib (Steering Wheel Pad)
A28 Automatic Light Control Sensor

B 2 Blower Motor
B 3 Blower Resistor
B 4 Body ECU
B 5 Body ECU

C 5 Center Airbag Sensor Assembly
C 6 Center Airbag Sensor Assembly
C 7 Center Airbag Sensor Assembly
C 8 Cigarette Lighter
C 9 Combination Meter
C10 Combination Meter
C11 Combination SW
C12 Combination SW
C13 Combination SW
C14 Combination SW
C15 Cruise Control ECU

D 2 Data Link Connector 2
D 3 Data Link Connector 3
D 4 Diode (A/C)
D 5 Diode (A/T Indicator Light 1)
D 6 Diode (A/T Indicator Light 2)

E 4 Engine Control Module
E 5 Engine Control Module
E 6 Engine Control Module
E 7 Engine Control Module
E 8 Engine Control Module

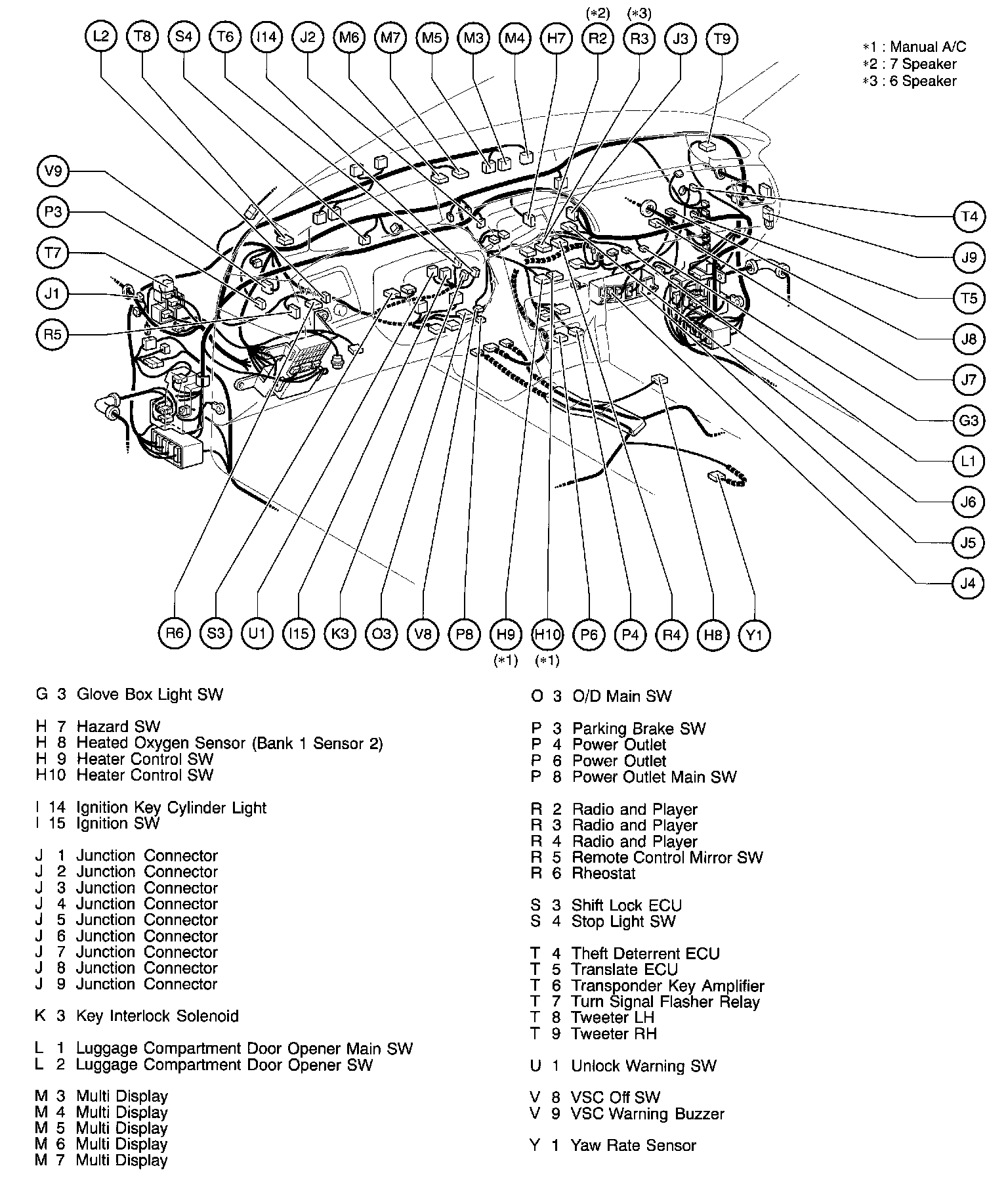

G 3 Glove Box Light SW

H 7 Hazard SW
H 8 Heated Oxygen Sensor (Bank 1 Sensor 2)
H 9 Heater Control SW
H10 Heater Control SW

I 14 Ignition Key Cylinder Light
I 15 Ignition SW

J 1 Junction Connector
J 2 Junction Connector
J 3 Junction Connector
J 4 Junction Connector
J 5 Junction Connector
J 6 Junction Connector
J 7 Junction Connector
J 8 Junction Connector
J 9 Junction Connector

K 3 Key Interlock Solenoid

L 1 Luggage Compartment Door Opener Main SW
L 2 Luggage Compartment Door Opener SW

M 3 Multi Display
M 4 Multi Display
M 5 Multi Display
M 6 Multi Display
M 7 Multi Display

O 3 O/D Main SW

P 3 Parking Brake SW
P 4 Power Outlet
P 6 Power Outlet
P 8 Power Outlet Main SW

R 2 Radio and Player
R 3 Radio and Player
R 4 Radio and Player
R 5 Remote Control Mirror SW
R 6 Rheostat

S 3 Shift Lock ECU
S 4 Stop Light SW

T 4 Theft Deterrent ECU
T 5 Translate ECU
T 6 Transponder Key Amplifier
T 7 Turn Signal Flasher Relay
T 8 Tweeter LH
T 9 Tweeter RH

U 1 Unlock Warning SW

V 8 VSC Off SW
V 9 VSC Warning Buzzer

Y 1 Yaw Rate Sensor
