VSC (w/ Traction Control)

NOTE: This article contains corrected data processed from TSB# PG001-05.

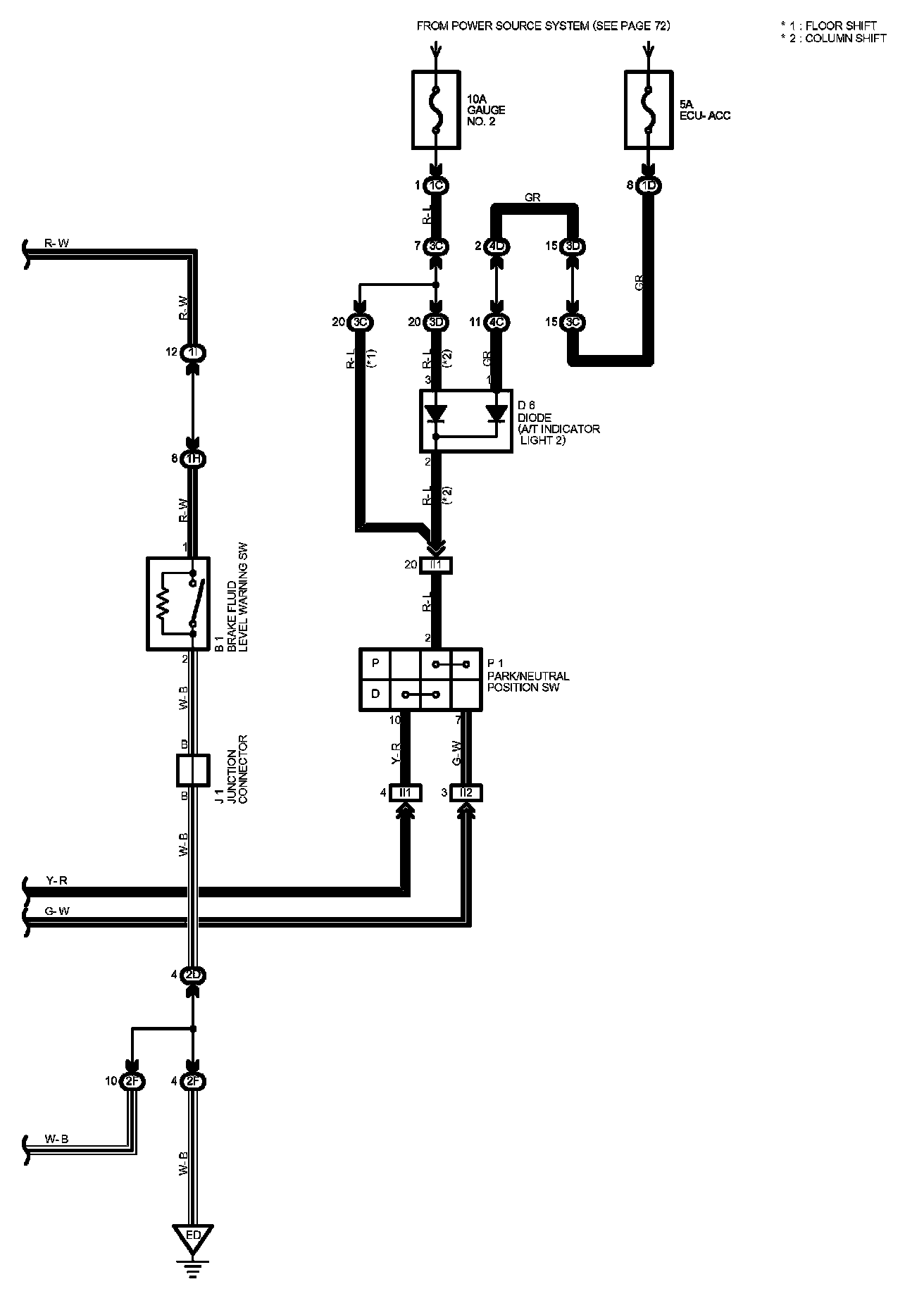

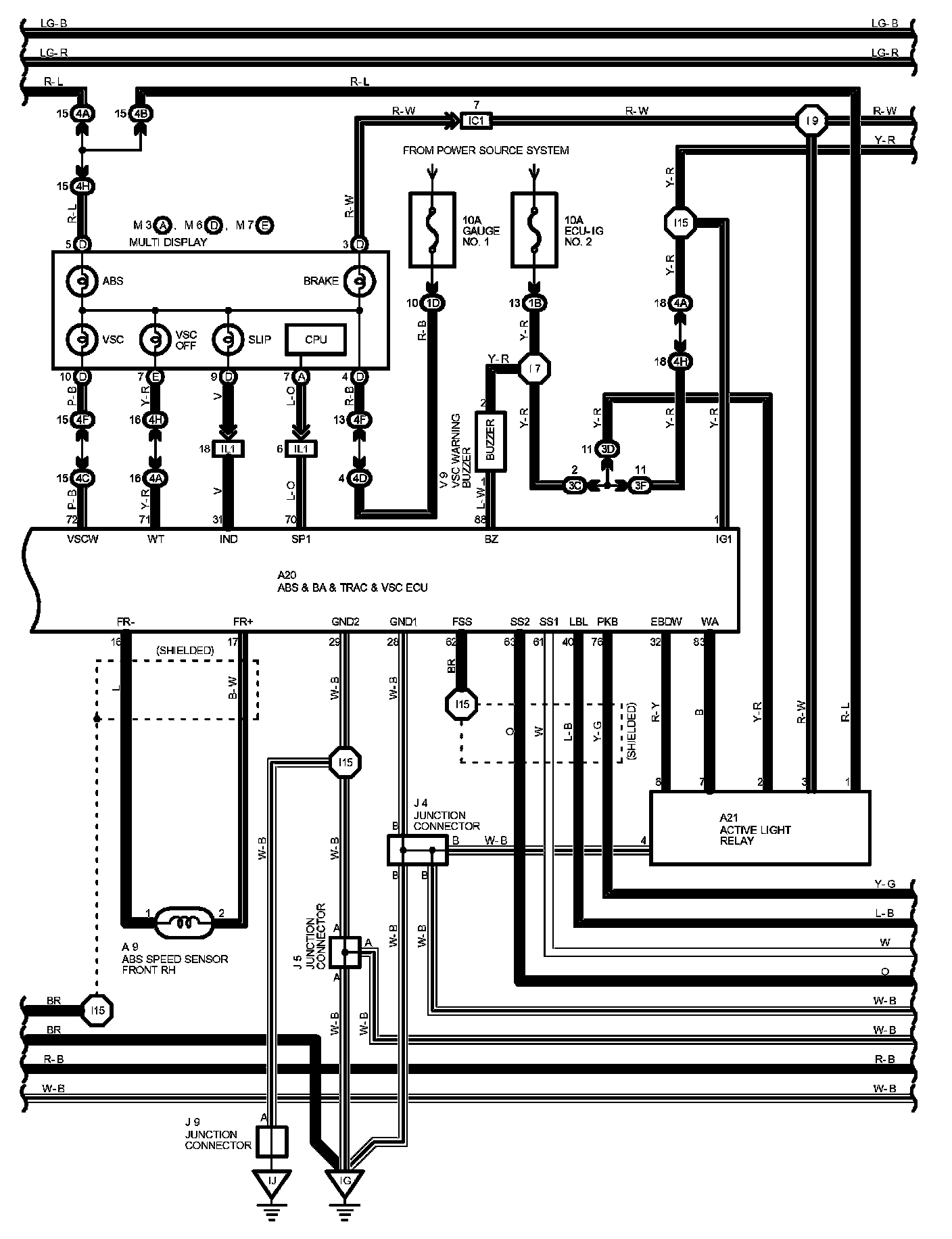

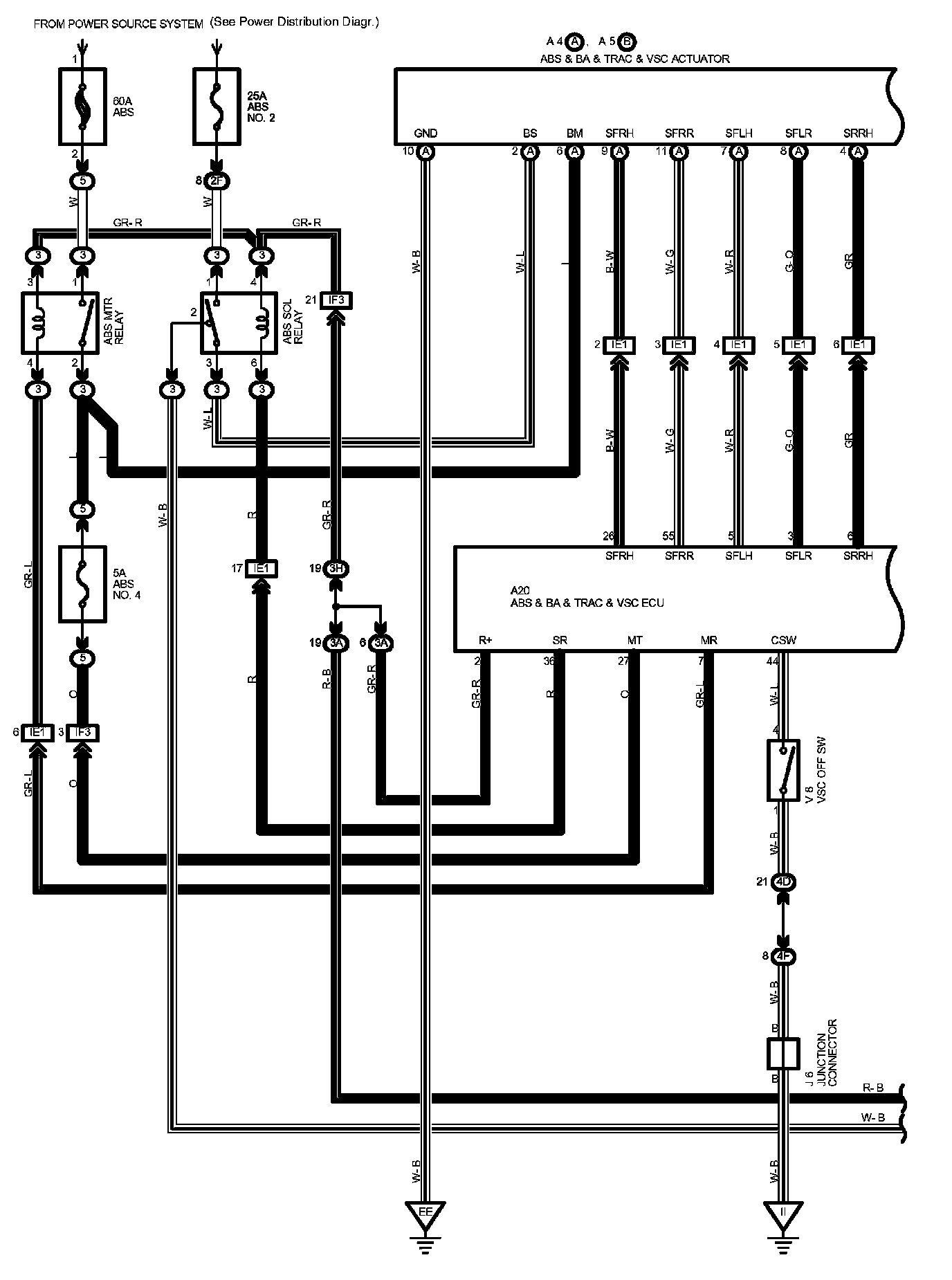

VSC (w/ Traction Control) Part 1:

VSC (w/ Traction Control) Part 2:

VSC (w/ Traction Control) Part 3:

VSC (w/ Traction Control) Part 4:

VSC (w/ Traction Control) Part 5:

VSC (w/ Traction Control) Part 6:

Diagram Legend Part 1:

Diagram Legend Part 2:

Diagram Legend Part 3:
