Water Pump

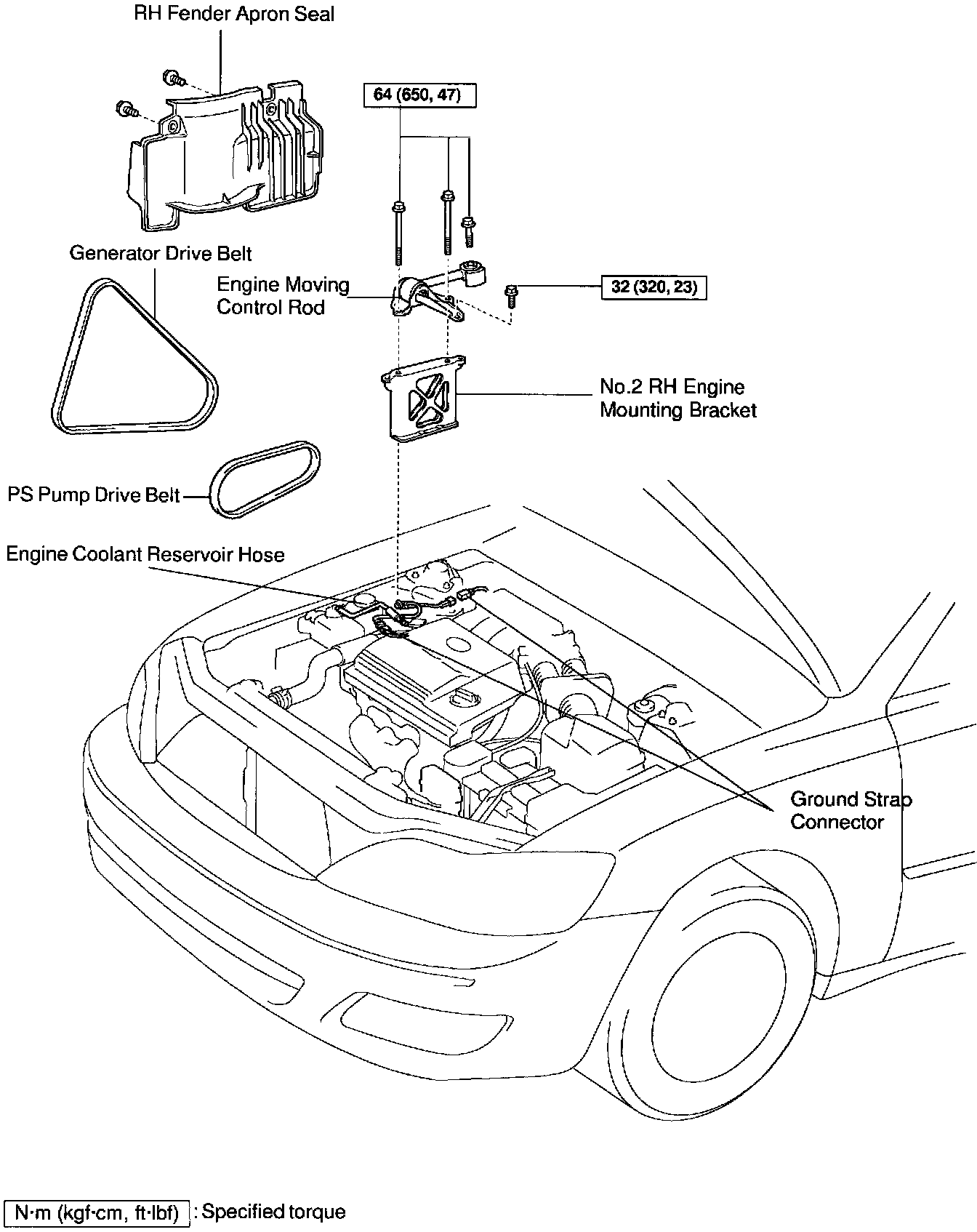

Front Engine Motor Mount And Drive Belts:

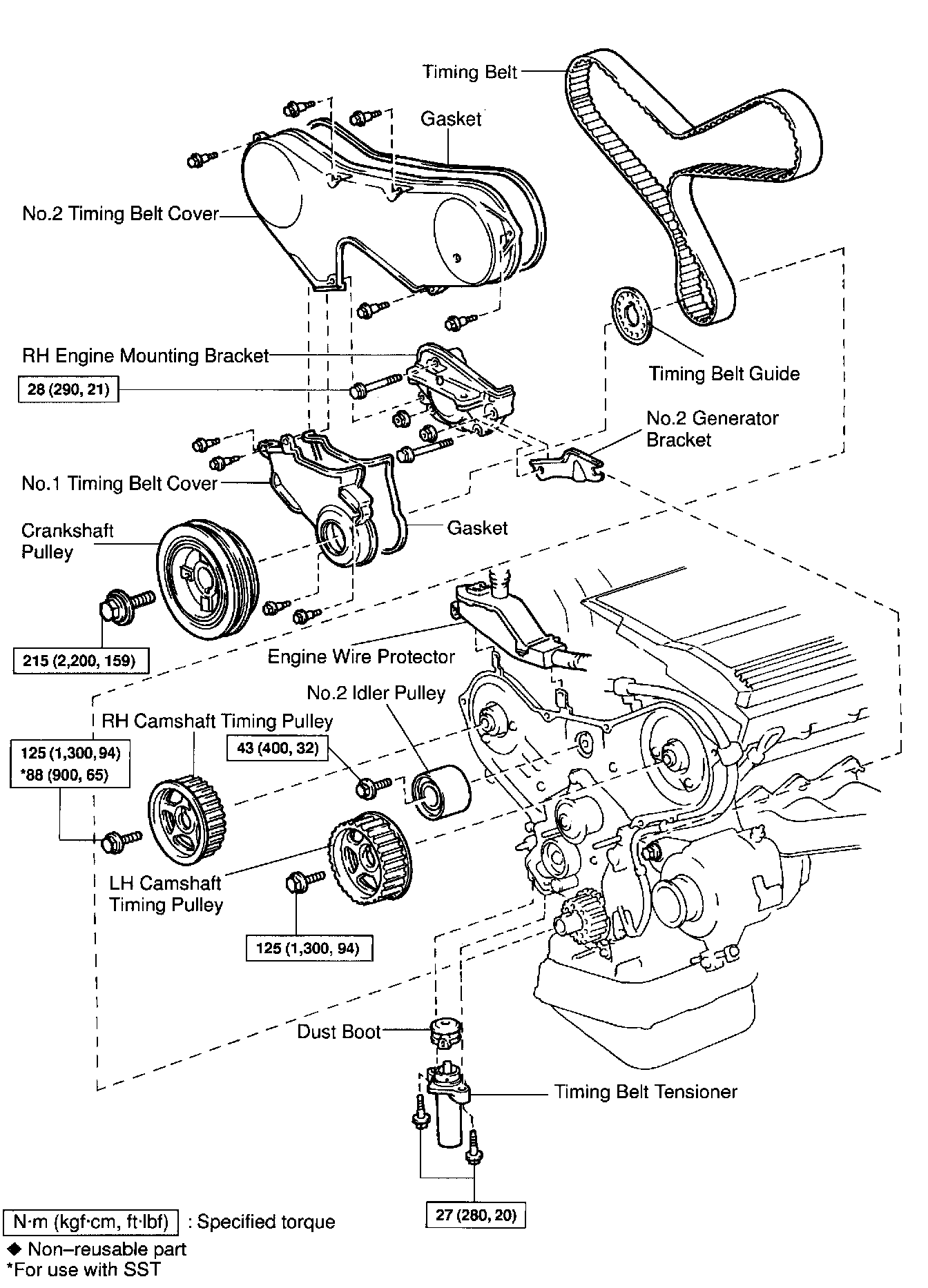

Timing Belt Components:

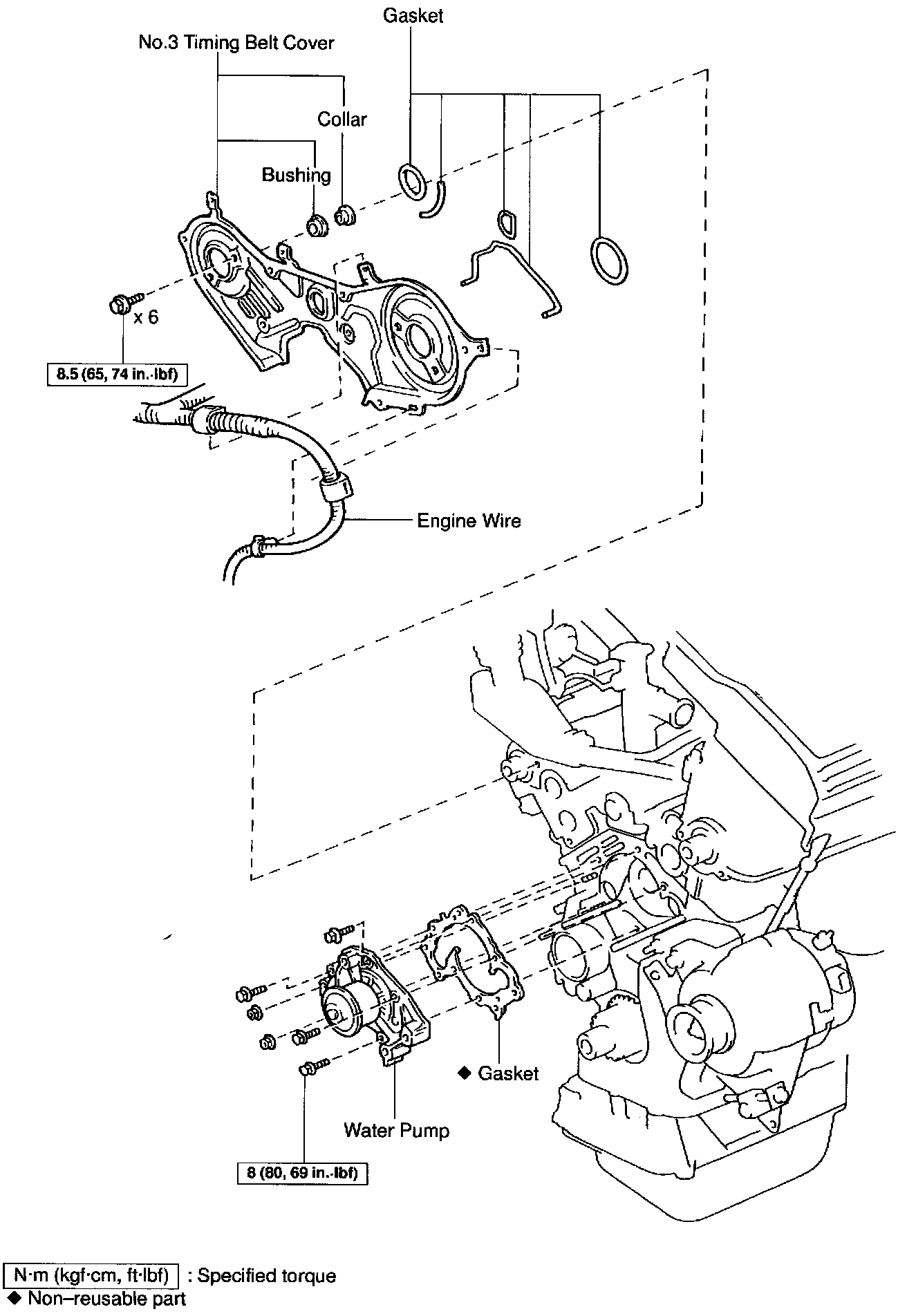

Water Pump:






WATER PUMP COMPONENTS
