Compressor Clutch Relay: Testing and Inspection

INSPECTION

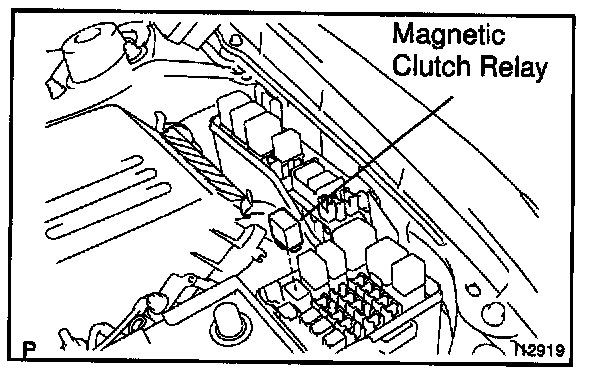

1. REMOVE MAGNETIC CLUTCH RELAY FROM NO.2 J/B







2. INSPECT MAGNETIC CLUTCH RELAY (Marking: MG CLT CONTINUITY)
If continuity is not as specified, replace the relay.
