Pinout Values and Diagnostic Parameters

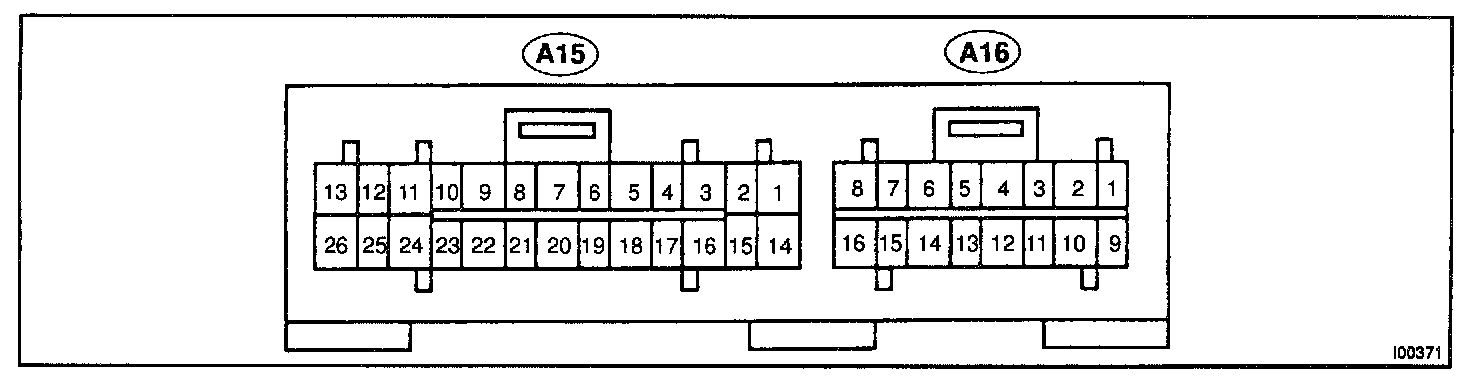

ECU Views - (A15 , A16):
ECU Pinouts - (A15 , A16) (Part 1 Of 2):
ECU Pinouts - (A15 , A16) (Part 2 Of 2):

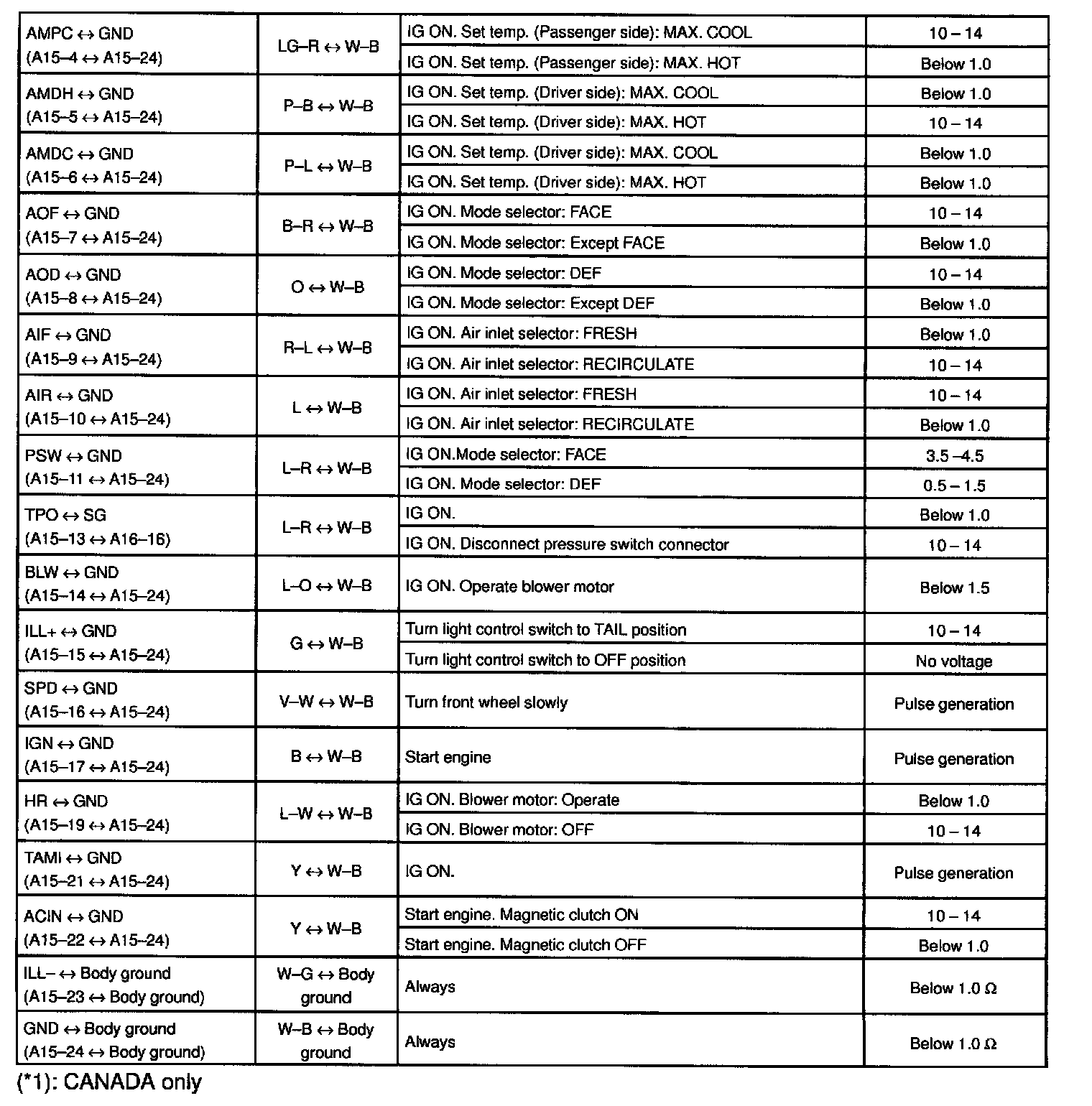

ECU TERMINAL VALUES
