Ground Circuits

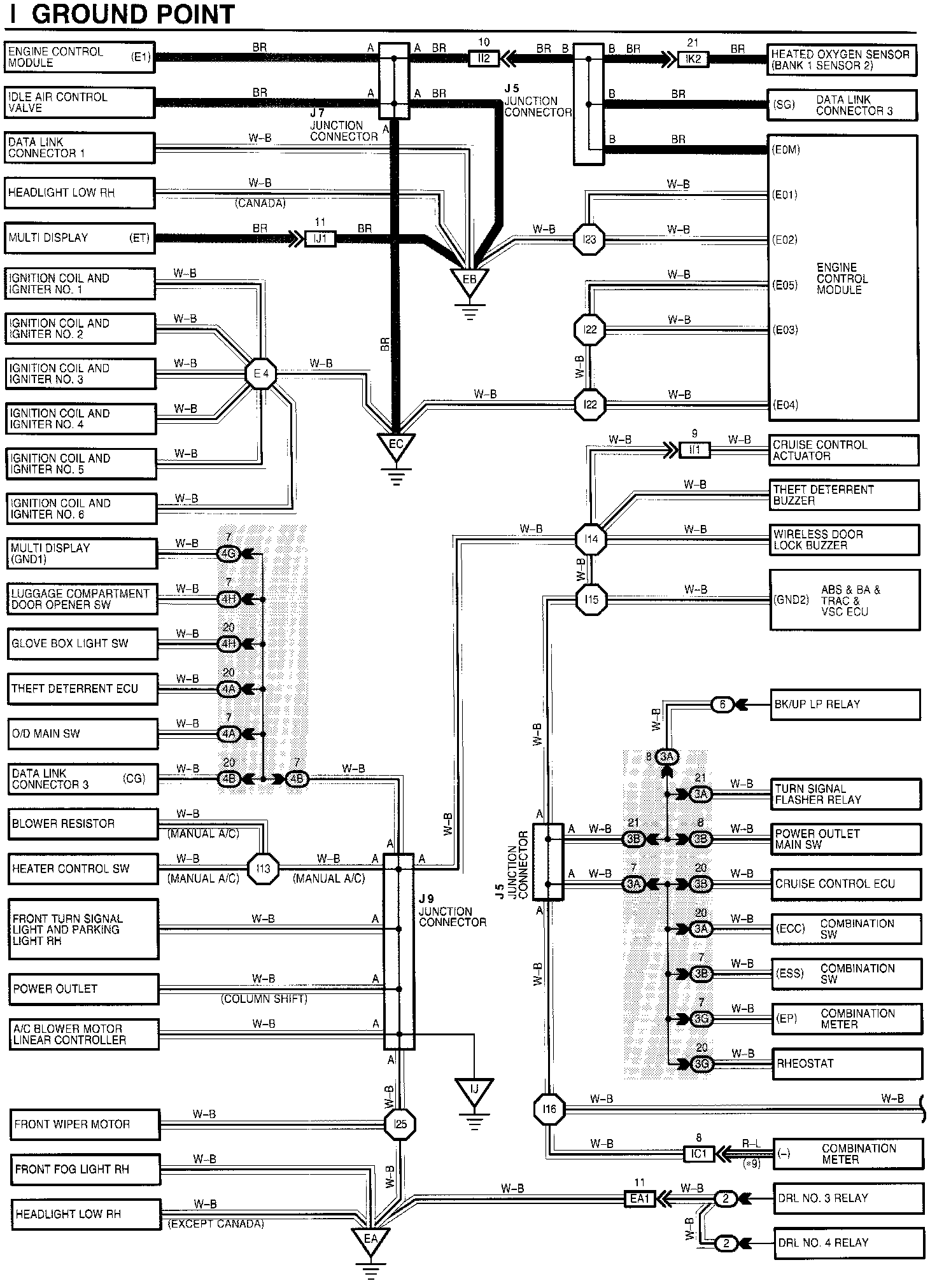

Ground Point (Part 1 Of 4)
ABS & BA & TRAC & VSC ECU
A/C Blower Motor Linear Controller
Blower Resister
BK/UP LP Relay
Combination Meter (-)
Combination Meter (EP)
Combination SW (ESS)
Combination SW (ECC)
Cruise Control Actuator
Data Link Connector 1, 3
DRL No.3 - 4 Relay
Engine Control Module
Front Turn Signal Light And Parking Light RH
Front Wiper Motor
Front Fog Light RH
Glow Box Light SW
Headlight Low RH
Heater Control SW
Heated Oxygen Sensor (Bank 1 Sensor 2)
Idle Air Control Valve
Ignition Coil And Igniter No.1 - 6
Luggage Compartment Door Opener SW
Multi Display
O/D Main SW
Power Outlet
Power Outlet Main SW
Rheostat
Theft Deterrent ECU
Theft Deterrent Buzzer
Turn Signal Flasher Relay
Wireless Door Lock Buzzer





Ground Point (Part 2 Of 4)
ABS Actuator And ECU(GND 1)
ABS Actuator And ECU(GND 2)
ABS & BA & TRAC & VSC ECU (GND 1)
ABS SOL Relay
ABS & BA & TRAC & VSC Actuator
Active Light Relay
A/C Control Assembly
A/C Single Pressure SW
A/C Dual Pressure SW
Body ECU
Brake Fluid Level Warning SW
Center Airbag Sensor Assembly
Cigarette Lighter
Combination SW (E)
Combination SW (EL)
Engine Hood Courtesy SW
Fan No. 2 Relay
Front Fog Light LH
Front Turn Signal Light And Parking Light LH
Headlight Low LH
HTR Relay
Inner Mirror
Key Interlock Solenoid
Moon Roof Control SW
Moon Roof Control ECU
Personal Light
Radiator Fan Motor
Translate ECU
Unlock Warning SW
Vanity Light RH
Vanity Light LH
Water Temp, SW No. 1





Ground Point (Part 3 Of 4)
Air Outlet Control Servo Motor
Body ECU
Buckle SW LH
Driver Door ECU
Door Control Receiver
Door Lock Motor Rear LH
Fuel Pump
Lumbar Support Control SW (Driver's Seat)
Power Outlet
Power Window Control SW Rear LH
Power Seat Control SW (Driver's Seat)
Power Seat Control ECU
PWR Point Relay
Remote Control Mirror LH
Remote Control Mirror SW
Rear Interior Light LH
Shift Lock ECU
Seat Heater
Transponder Key Amplifier
Voltage Inverter
VSC OFF SW
Washer Level Warning SW

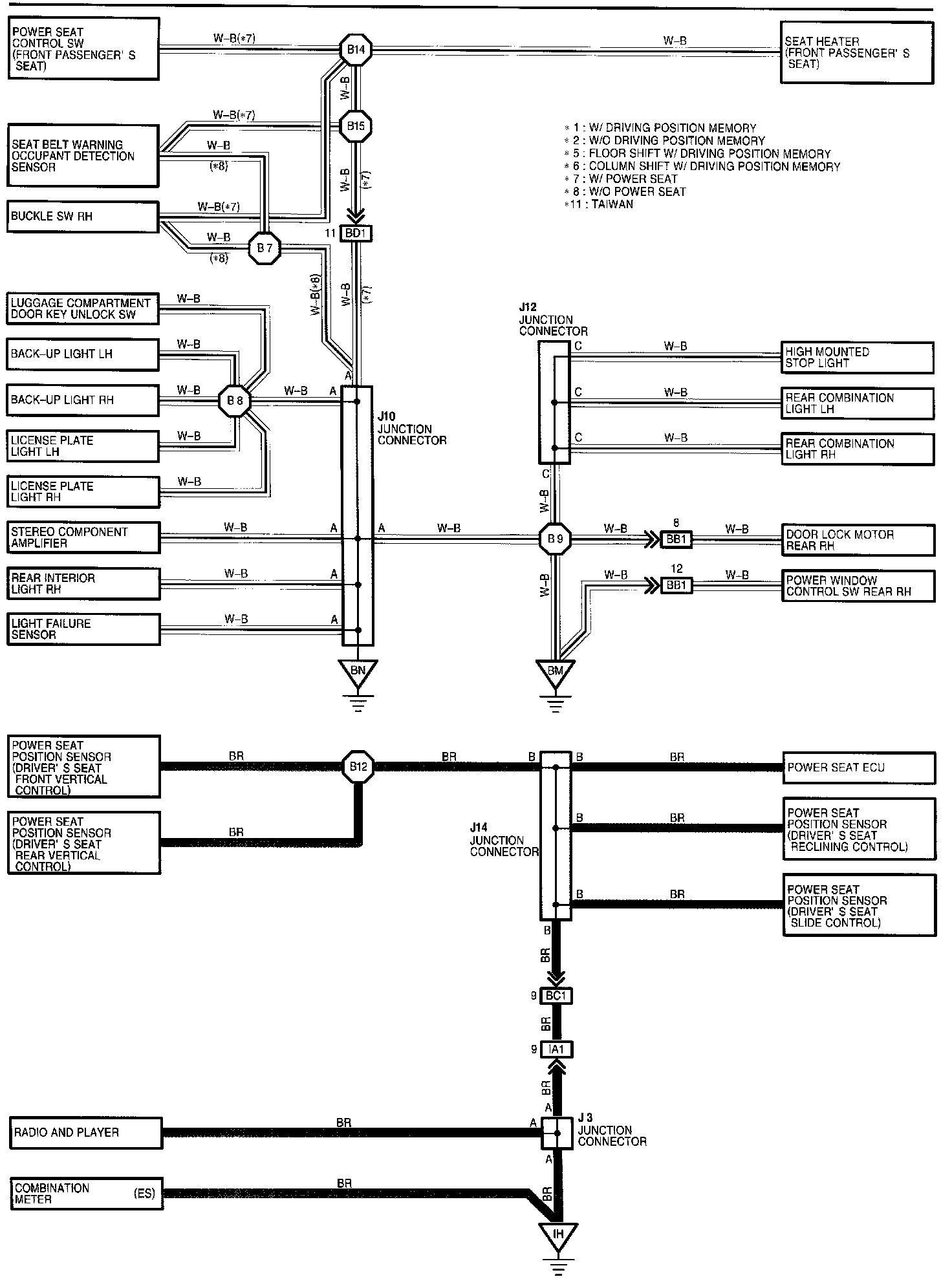

Ground Point (Part 4 Of 4)
Buckle SW RH
Back-Up Light LH
Back-Up Light RH
Combination Meter
Door Lock Motor Rear RH
High Mounted Stop Light
License Plate Light LH
License Plate Light RH
Light Failure Sensor
Luggage Compartment Door Key Unlock Unlock SW
Power Seat Control SW (Front Passenger Seat)
Power Seat Position Sensor (Driver's Seat Front Vertical Control)
Power Seat Position Sensor (Driver's Seat Rear Vertical Control)
Power Seat Position Sensor (Driver's Seat Slide Control)
Power Seat Position Sensor (Driver's Seat Reclining Control)
Power Seat ECU
Power Window Control SW Rear RH
Seat Heater (Front Passenger's Seat)
Seat belt Warning Occupant Detection Sensor
Stereo Component Amplifier
Rear Interior Light RH
Rear Combination Light RH
Rear Combination Light LH
Radio And Player
