Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION
When the cruise control cancel switch is turned ON, the cruise control does not operate.

Wiring Diagram:

Step 1:

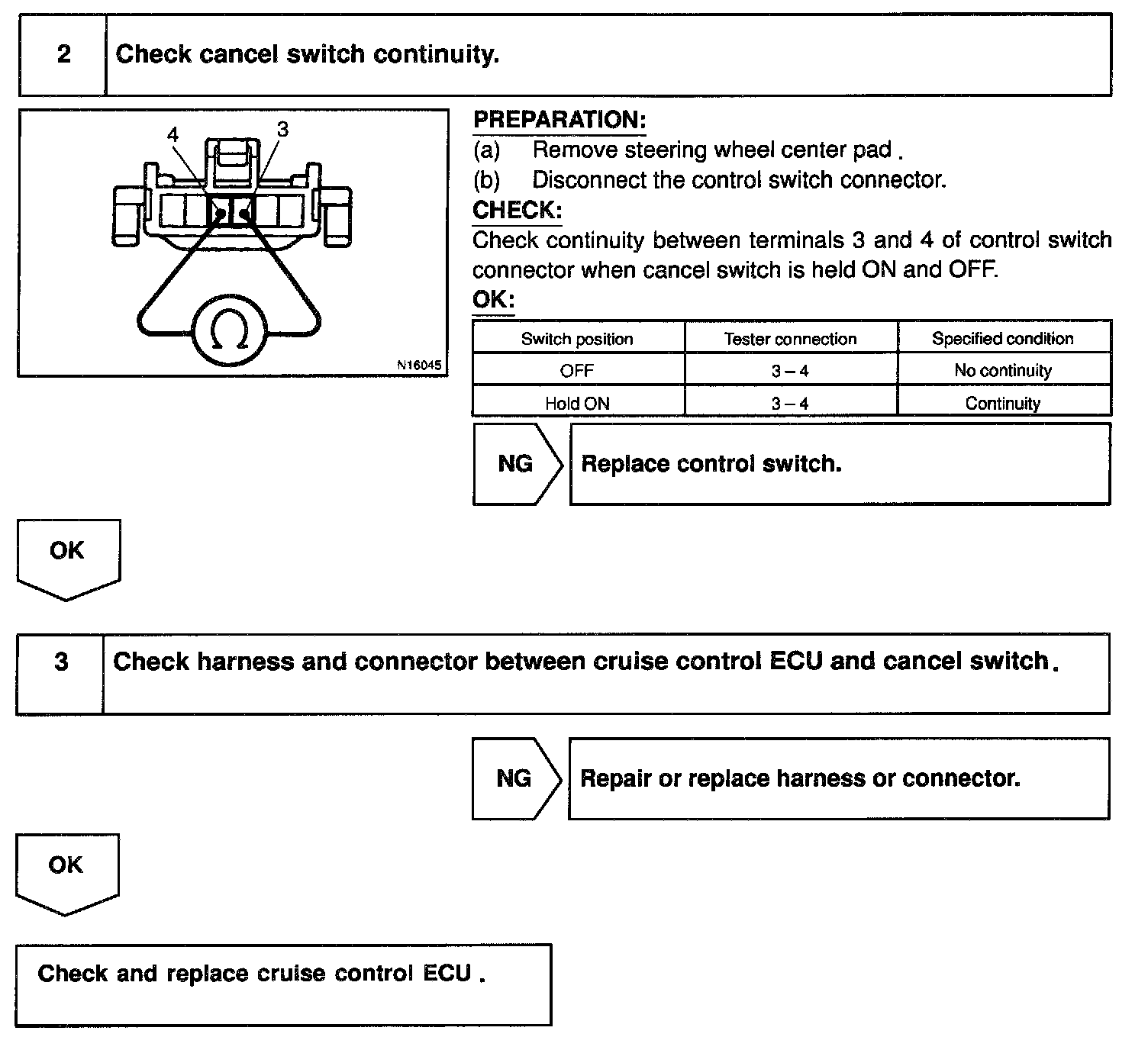

Steps 2 - 3:

INSPECTION PROCEDURE
