Canada - Doors - Lock Linkage Loose

Bulletin
0806

Issue Date
2000-09-12

Reference
BC-00-004

Model
Avalon

Year Range
2000

Market
Canada

Component
BC

Subject:
DOOR LOCK LINKAGE LOOSE

In case of loose/broken snap (door lock control link), which may cause rattle noise in door, replace with modified snap.

AFFECTED VEHICLE: 2000 model year Avalon produced before the VIN below.

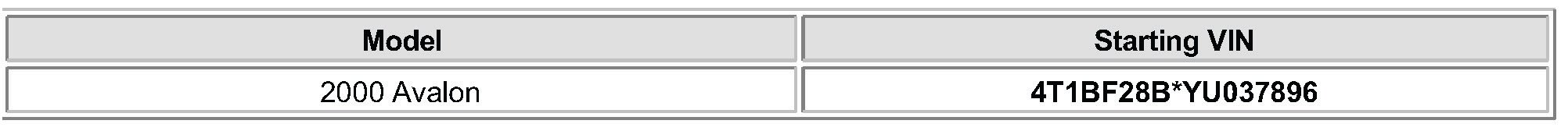

PRODUCTION CHANGE INFORMATION:

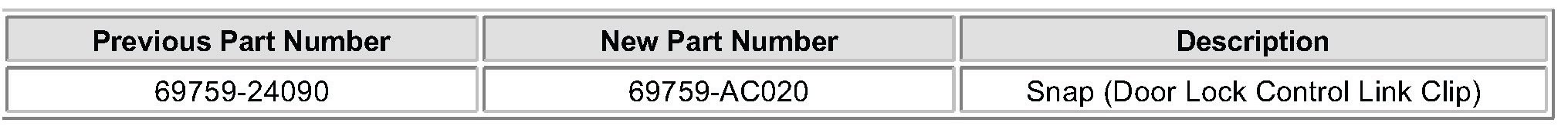

PART INFORMATION:

REPAIR PROCEDURE:





Refer to the 2000 Avalon Repair Manual, pages BO-8 through BO-13.

1. Replace the loose snap (door lock control link clip) with the new snap (P/N69759-AC020).

2. After replacement, confirm the following:
- The door locks and unlocks with the key.
- The inside release handle opens the door from locked and unlocked condition.
- A rattle noise does not occur when opening or closing the door.

- The outside release handle opens the door.
- The lock knob locks/unlocks the door.

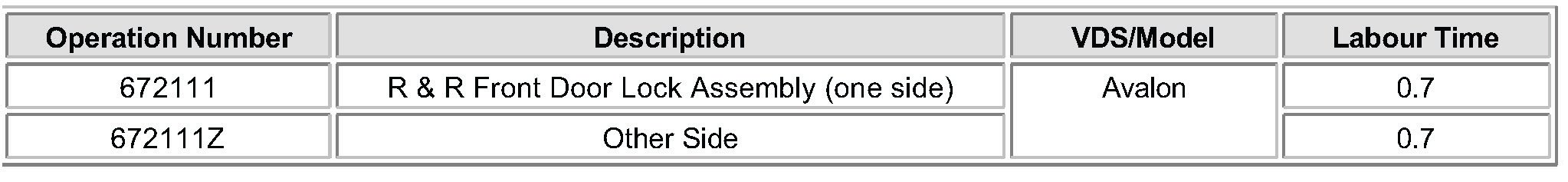

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
