Canada - Exterior Trim - Rear Door Garnish Loose or Falls Off

Bulletin
0903

Issue Date
2000-12-30

Reference
BC-00-031

Model
Avalon

Year Range
2000

Market
Canada

Component
BC

Subject:
REAR DOOR GARNISH LOOSE

A new service part has been developed with improved attachment points and is available for situations in which the rear door garnish becomes loose or falls off.

APPLICABLE VEHICLES:
2000 model year Avalon.

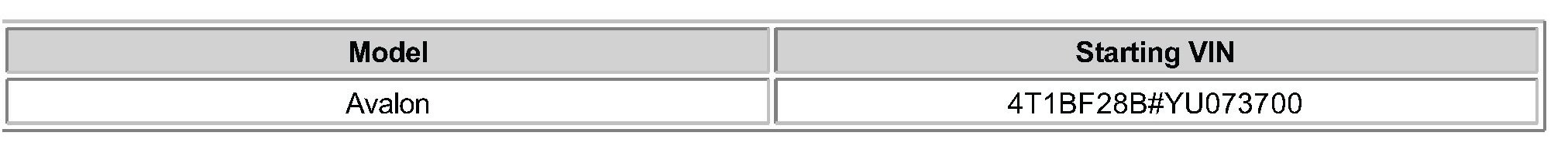

PRODUCTION CHANGE INFORMATION:

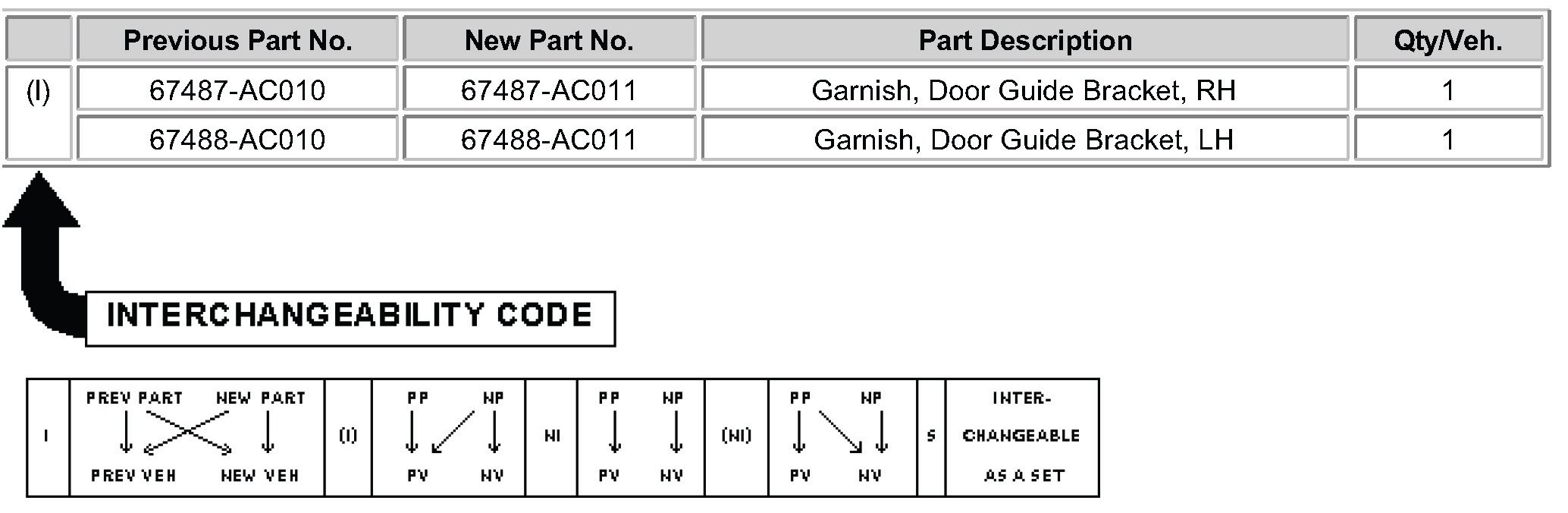

PART NUMBER INFORMATION:

REPAIR PROCEDURE:





Refer to 2000 MY Avalon Repair Manual page BO-17.

Replace the loose or missing garnish with the new part.

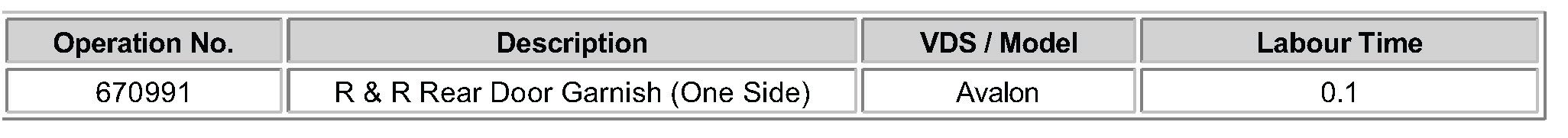

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
