Canada - Front Suspension - Squeaking Noise

Bulletin
0849

Issue Date
2000-09-27

Reference
SR-00-004R

Model
Sienna

Year Range
1998~2000

Market
Canada

Component
SR

Subject:
STEERING RACK END NOISE (REVISED)

Some 1998-2000 model year Sienna vehicles may experience a squeaking noise from the front suspension. To improve this condition, production parts have been changed.





APPLICABLE VEHICLES:

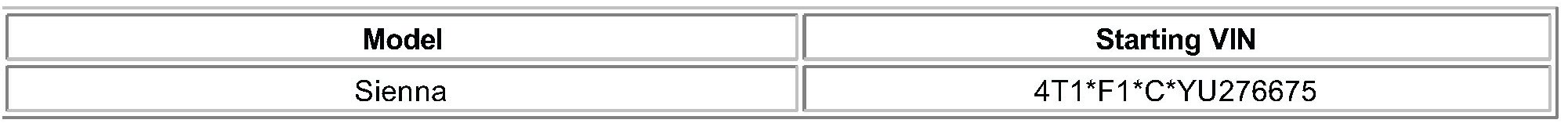

1998-2000 model year Sienna vehicles produced before the following VIN:

PARTS INFORMATION:





HINT:

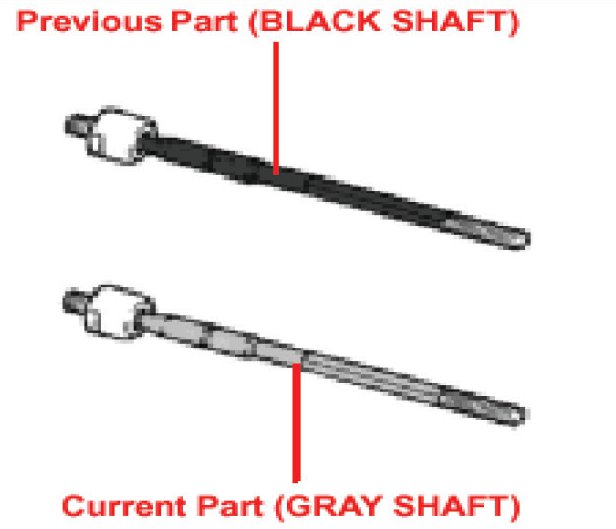

A quick reference in differentiating between the previous and new parts is that the previous Rack End Shaft is Black and the current part is Gray.

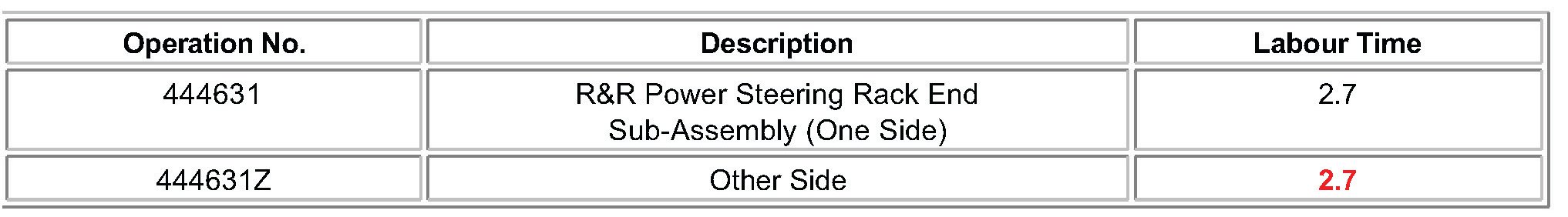

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
