Canada - Paint - Model Year 2000 Paint Colours

Bulletin
0765

Issue Date
1999-12-17

Reference
BO-99-003

Model
Avalon, Celica, Echo, Sienna, Tundra

Year Range
2000

Market
Canada

Component
BO

Subject:
EXTERIOR PAINT COLOURS

The following information outlines exterior body colour codes used on the 2000 Model Year Avalon, Celica, Echo, Sienna and Tundra. These colour codes may be found on the certification regulation label, which is located on the driver's side door jamb. In addition, we have included colour codes on bumper/cladding, body moulding and fender flares for Sienna and Tundra.

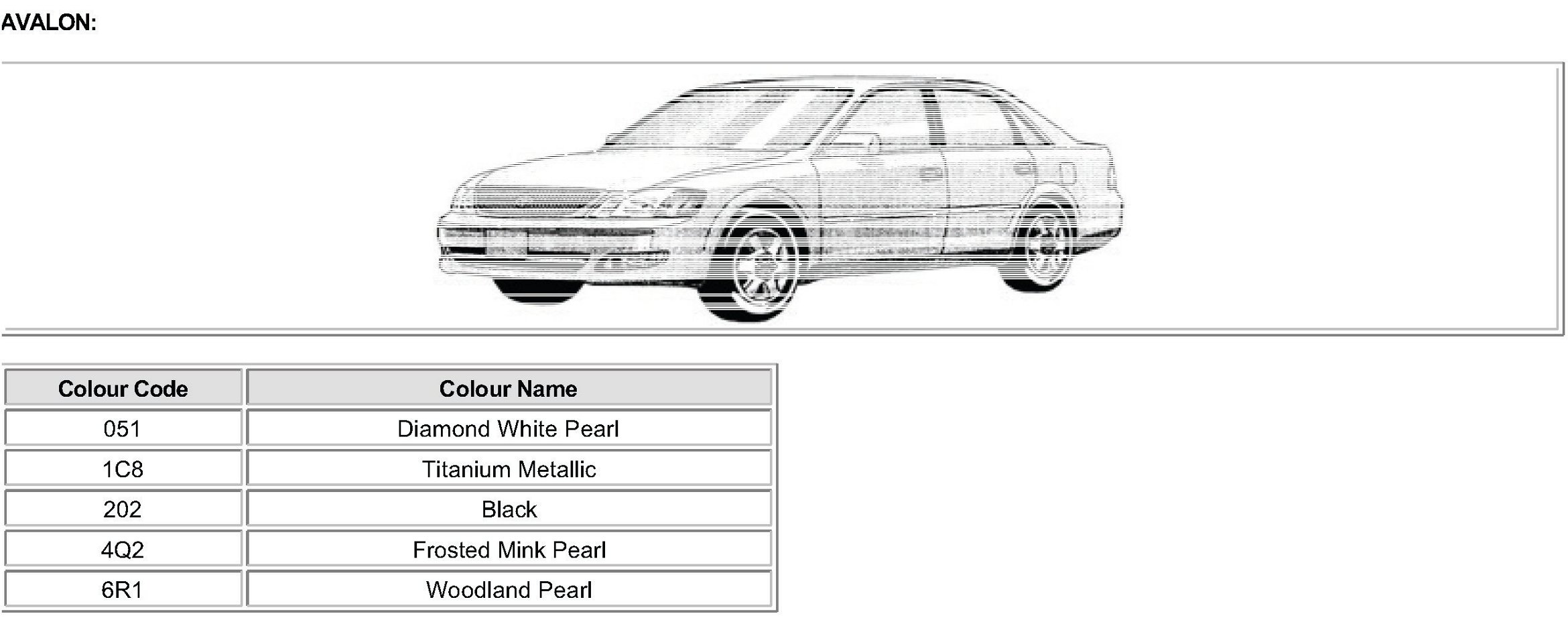

AVALON:





CELICA:

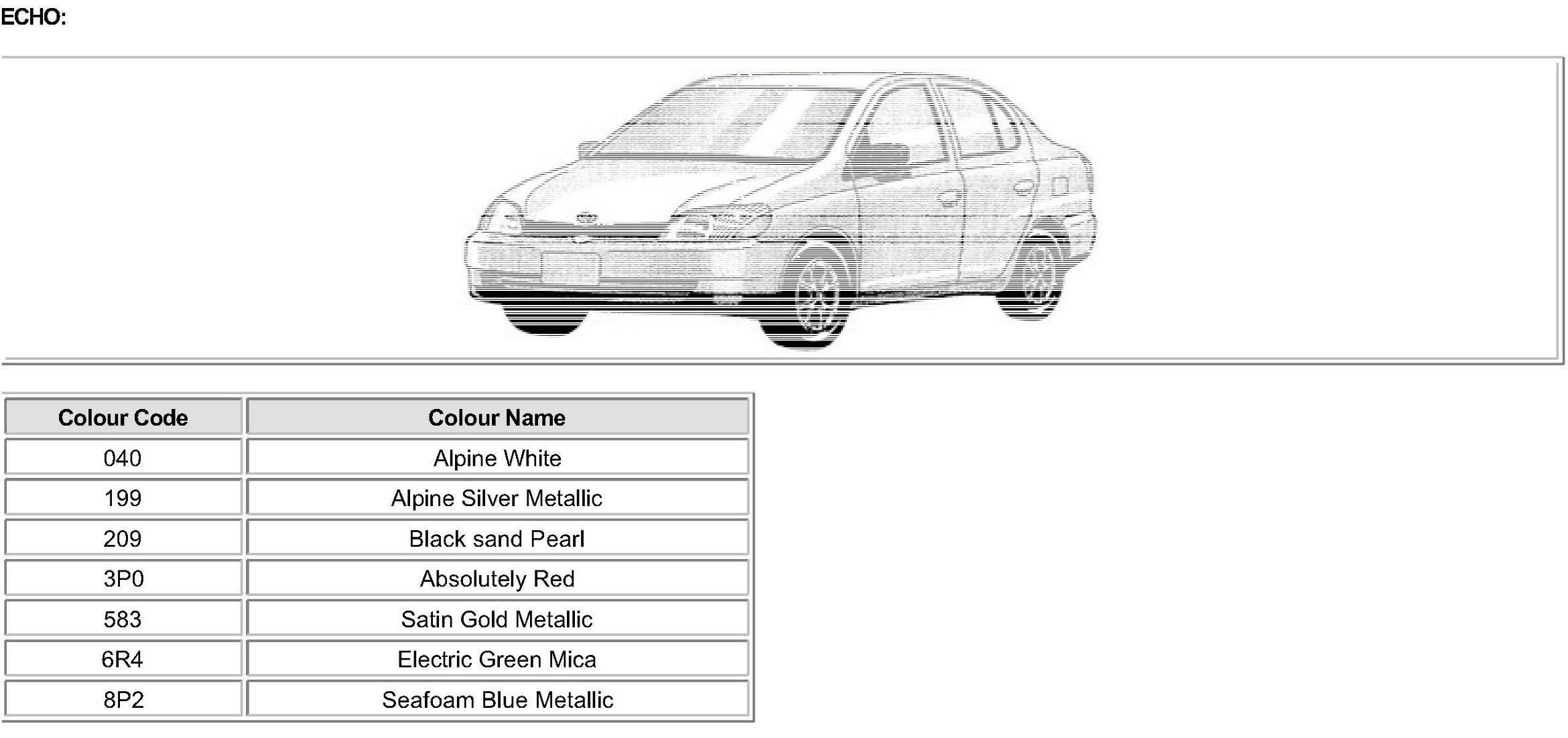

ECHO:





SIENNA:

REPAIR PROCEDURE:
- Since heat deformation of the cladding occurs more easily than with bumpers, repair and refinishing of cladding panels is not recommended. If original parts are to be refinished, please observe the following precautions during the refinish/drying process:

1. To prevent cladding warpage, hold the cladding panels firmly in place and keep the drying temperature below 50� C (122� F).
2. Since the cladding and bumpers are made of flexible plastic urethane material, use a 2-part urethane finish paint system with plasticizer for all bumper/cladding repairs.





TUNDRA:





Two-Tone Colour Combination:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
