Canada - Suspension - Front Support Noise

Bulletin
0782

Issue Date
2000-01-27

Reference
FS-99-002R

Model
Avalon, Camry

Year Range
1997 ~ 2000

Market
Canada

Component
FS

Subject:
FRONT SUSPENSION SUPPORT NOISE

REVISION: PLEASE DISCARD PREVIOUS BULLETIN # 0747, REF. FS-99-002







To eliminate a 'thump' type noise from the Front Suspension Support on rough (washboard) road surfaces, the shape of the rubber bushing for the suspension support has been changed. This Technical Service Bulletin is directed towards 1997 ~ 1999 Model Year Avalon and 1997 ~ 2000 Camry.

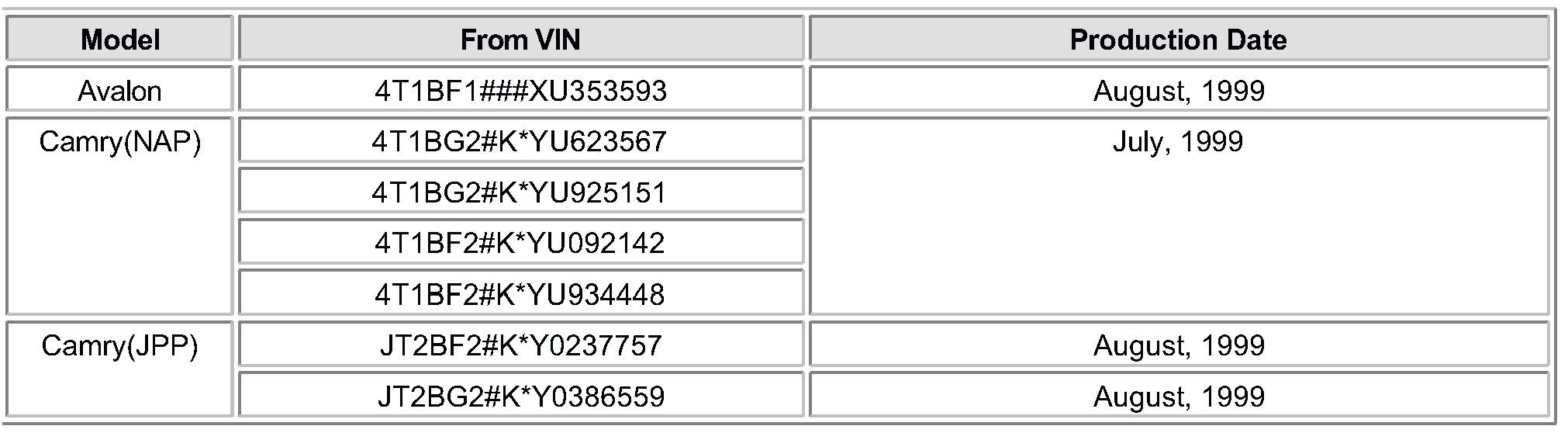

PRODUCTION EFFECTIVE:

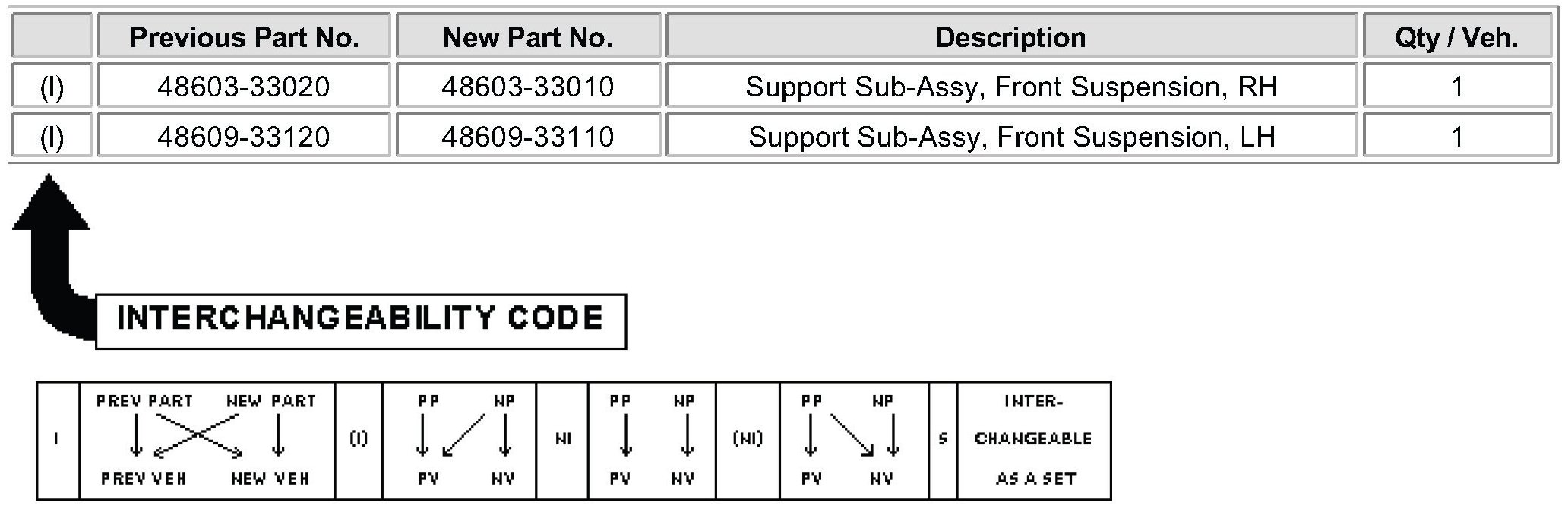

PART NUMBER INFORMATION :

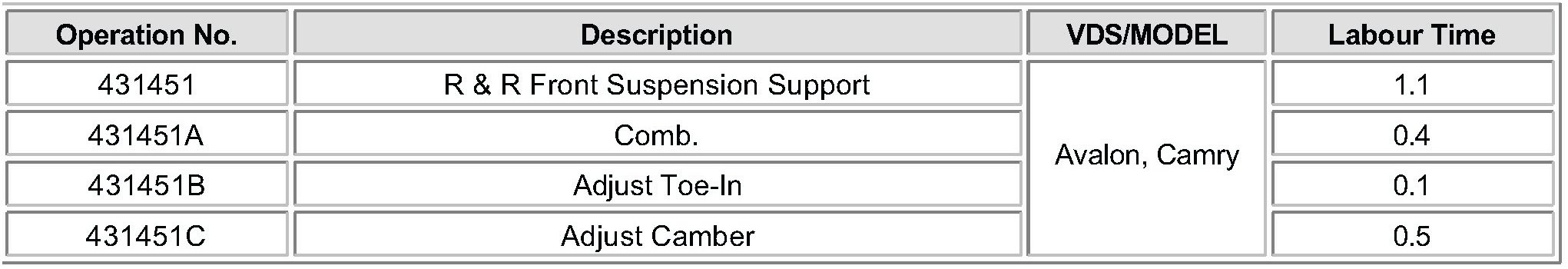

REPAIR TIME:


NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
