Canada - Suspension - Rear Lower Arm Installation Update

Bulletin
1089

Issue Date
2002-07-03

Reference
GI-02-015

Model
Avalon, Solara

Year Range
2000 ~ 2002

Market
Canada

Component
GI

Subject:
REPAIR MANUAL SUPPLEMENT: INSTALLATION OF THE NO. 2 LOWER SUSPENSION ARM

This bulletin provides a revised repair procedure for the No. 2 lower suspension arm on the 2002 model year Solara and 2000 - 2002 Avalon vehicles.

APPLICABLE VEHICLES:
- 2002 model year Solara vehicles.
- 2000-2002 model year Avalon vehicles.

REPAIR PROCEDURE:

Install No. 2 Lower Suspension Arm

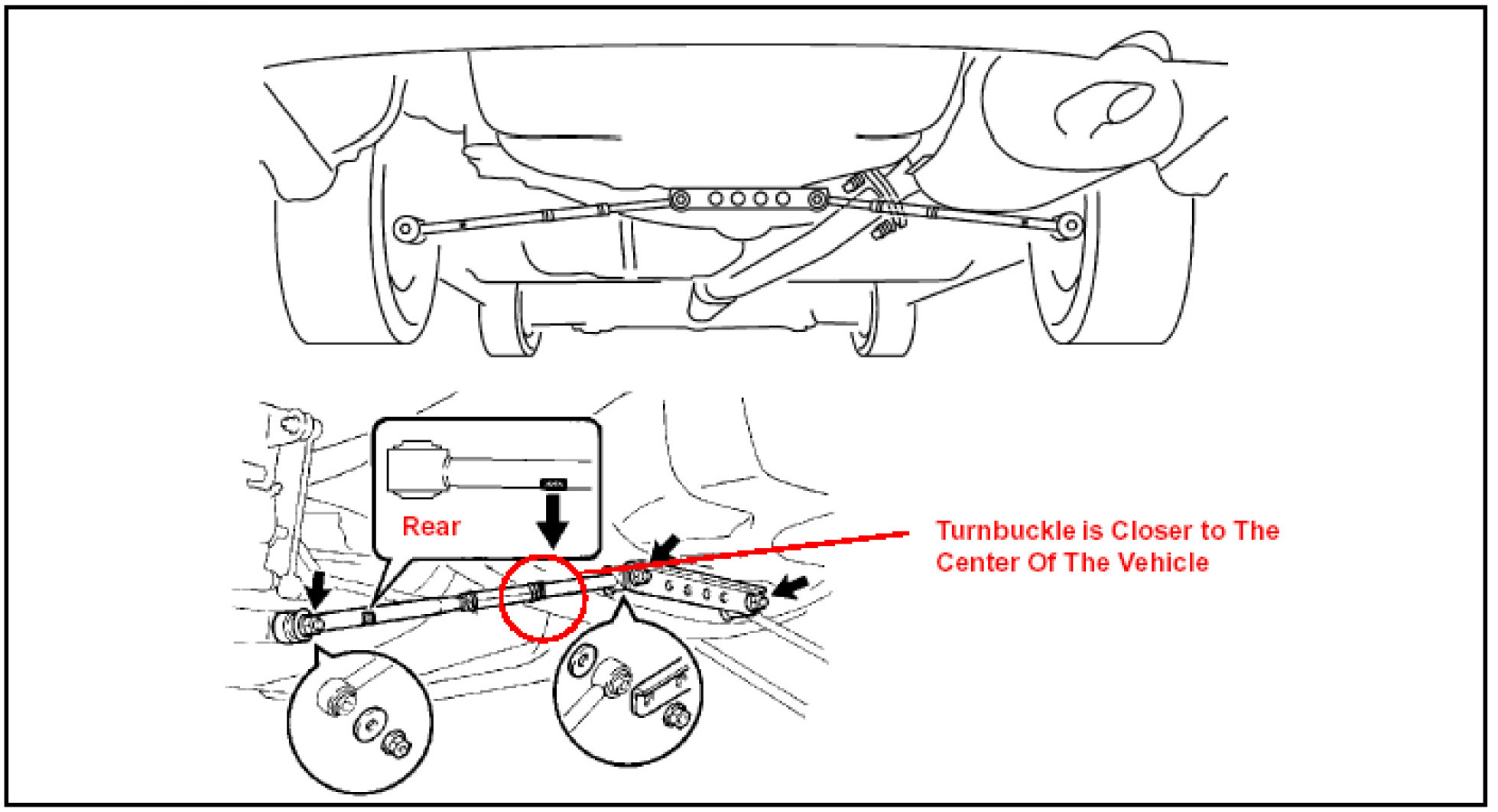

A. Install the No. 2 lower suspension arm.







NOTE:
- Orient the No. 2 lower suspension arm so that the turnbuckle is closer to the center of the vehicle.
- Ensure the paint mark faces the rear of the vehicle.

B. Install the washers and nuts in the proper location (See illustration above).
Torque: 181 N-m (1850 kgf-cm, 134 ft-lbf)

NOTE:
Torque the nut after stabilizing the suspension by jouncing the vehicle.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
