Exterior Trim - Rear Door Garnish Loose or Falls Off

Body
BO033-00

December 1, 2000

Title:
REAR DOOR GARNISH LOOSE

Models:
'00 Avalon

Introduction
A new service pant has been developed with improved attachment points and is available for situations in which the rear door garnish becomes loose or falls off.

Applicable Vehicles
^ 2000 model year Avalon vehicles.

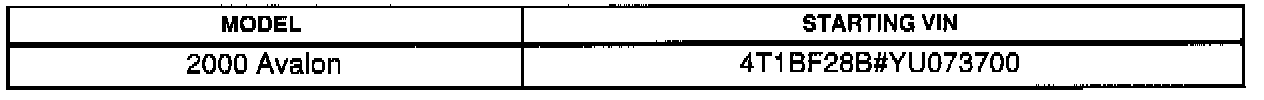

Production Change Information

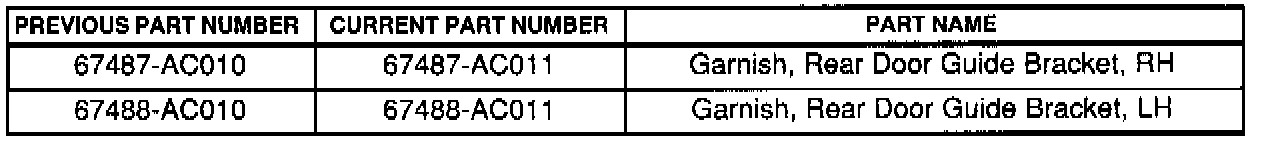

Parts Information

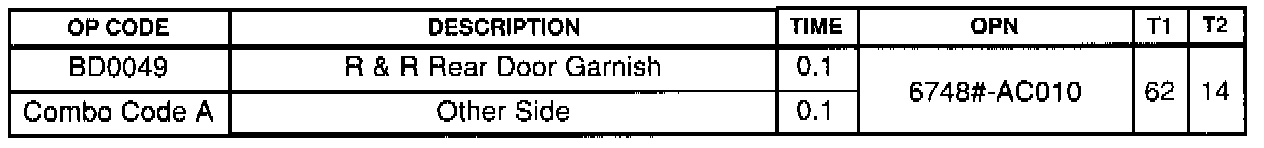

Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint

Repair Procedure
Refer to 2000 MY Avalon Repair Manual page BO-17.





Replace the loose or missing garnish with the new part (current part number)
