Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
ECU View - C18:

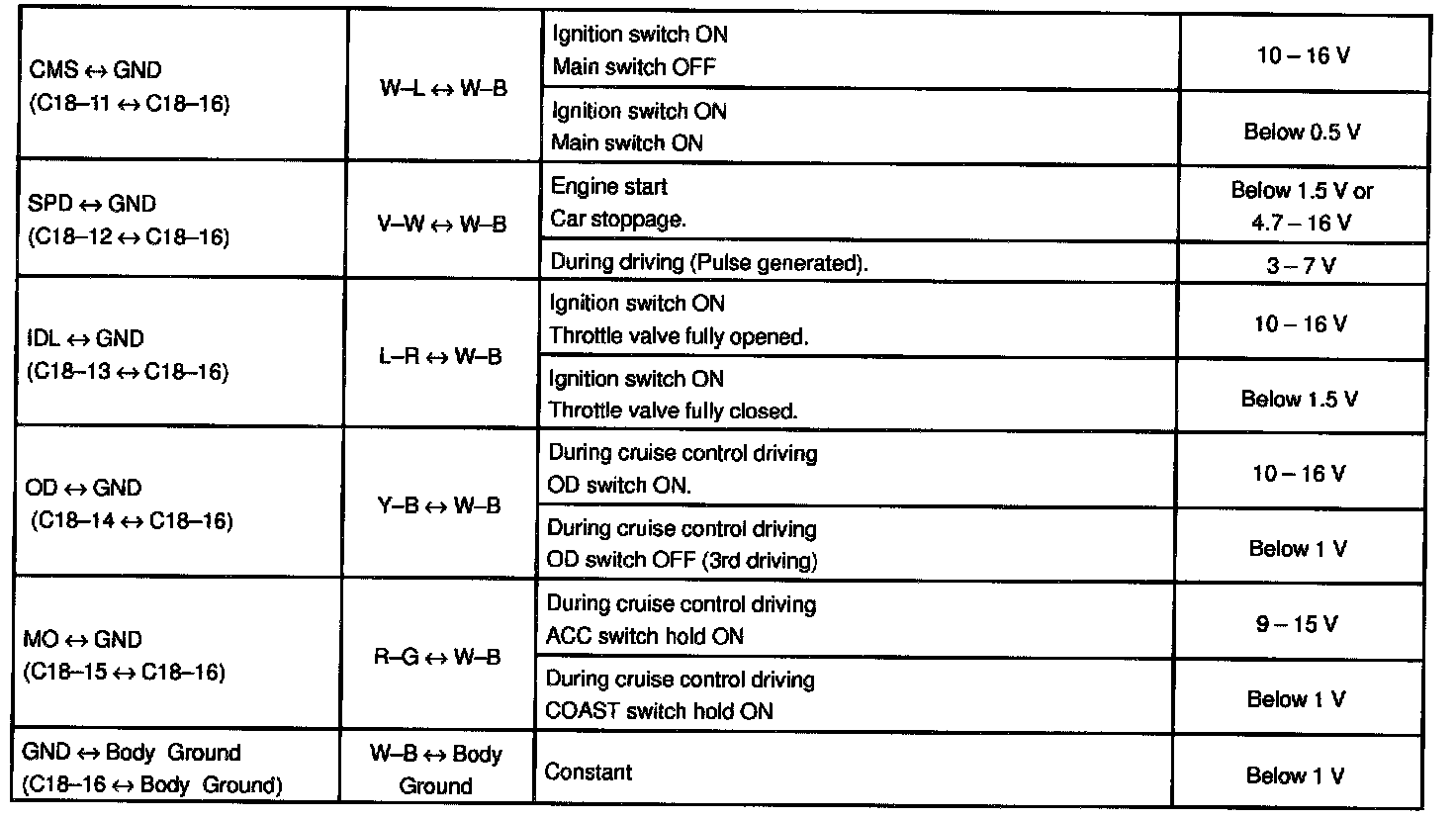

ECU Pin-outs - C18 (Part 1 Of 2):
ECU Pin-outs - C18 (Part 2 Of 2):
