Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2000
>>
Camry Solara SEV6 V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Code Lists
Connector Code Lists

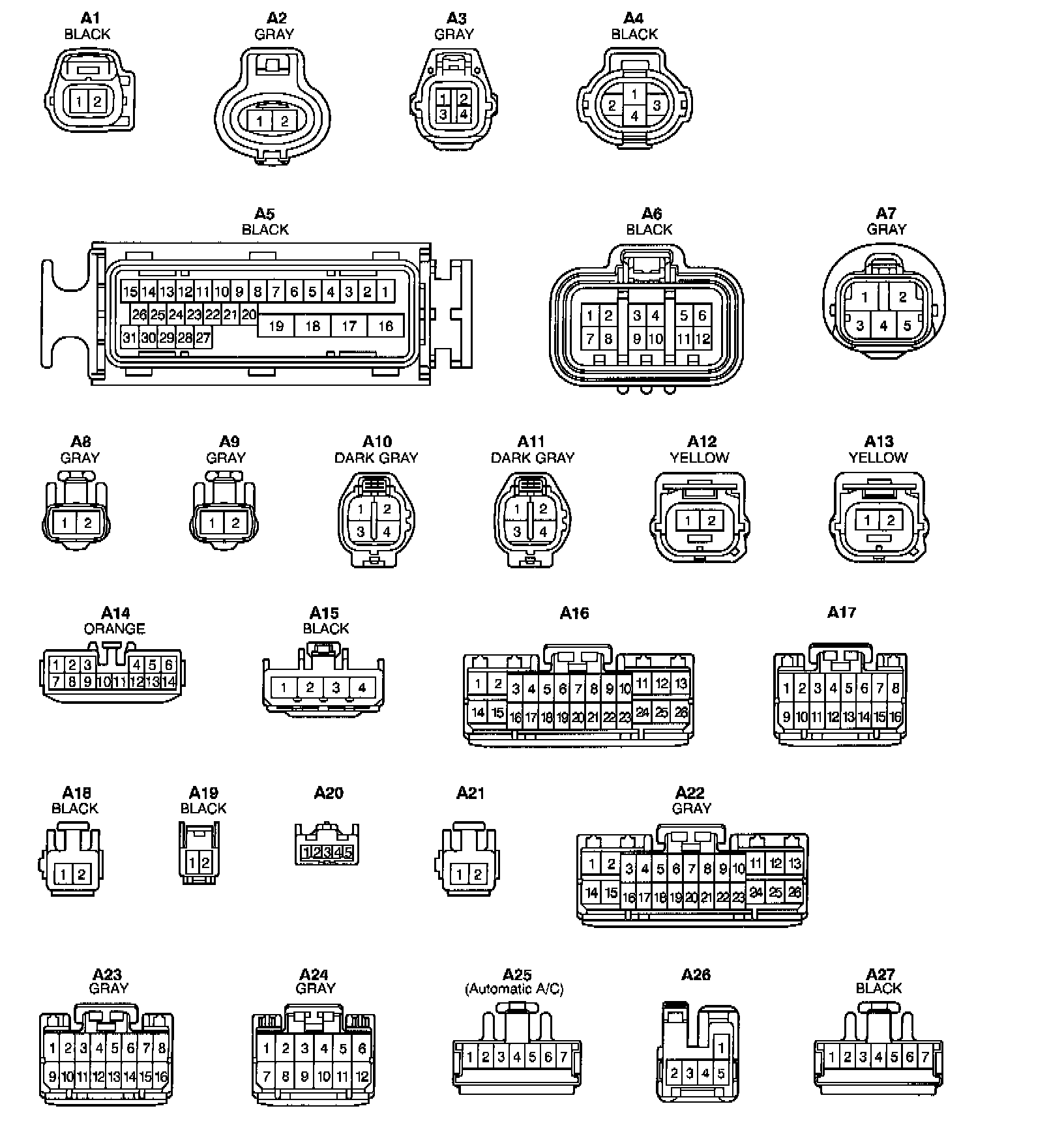

A1 - A27:
A28 - C12:
C13 - D13:

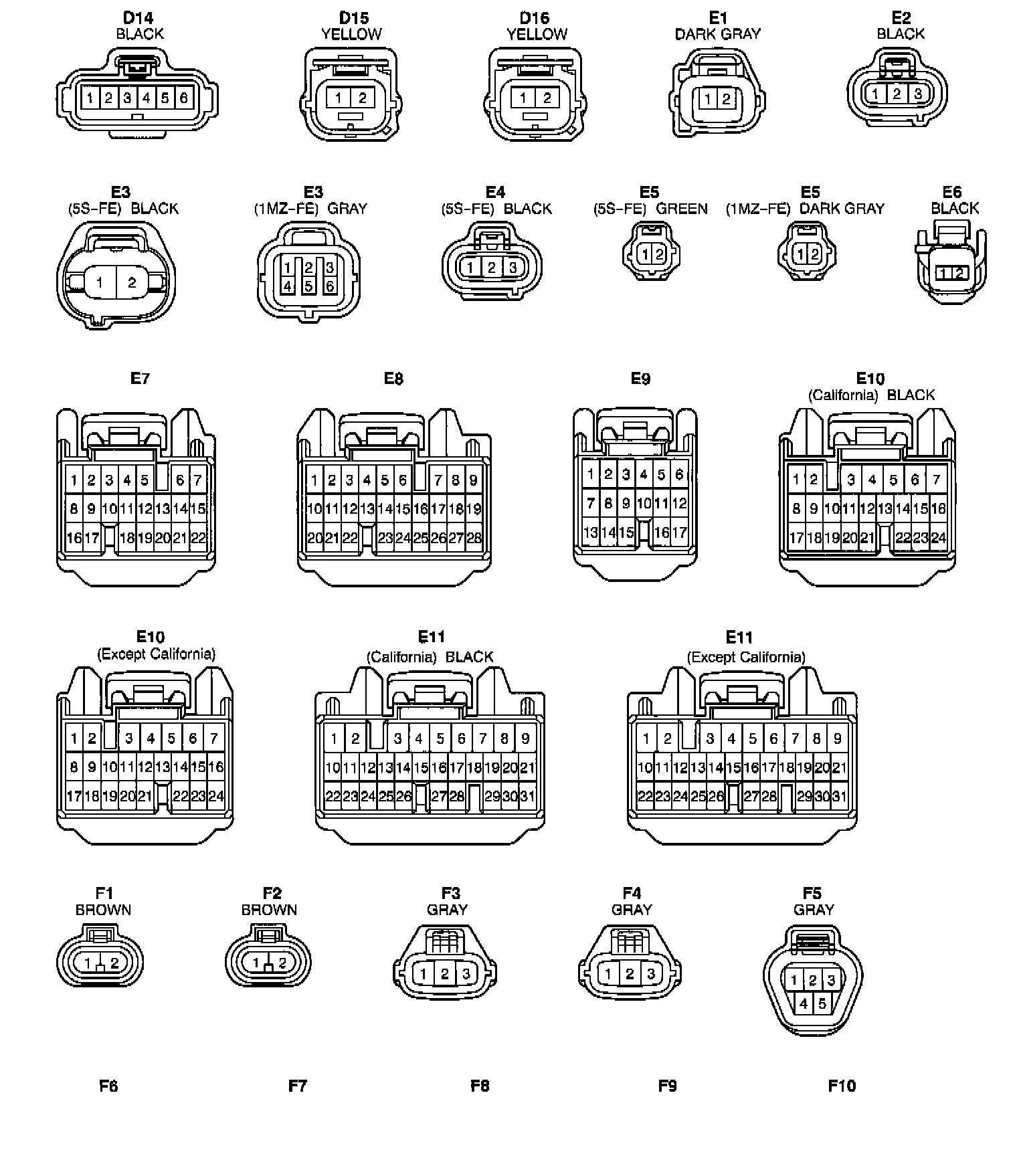

D14 - F10:
F11 - I14:

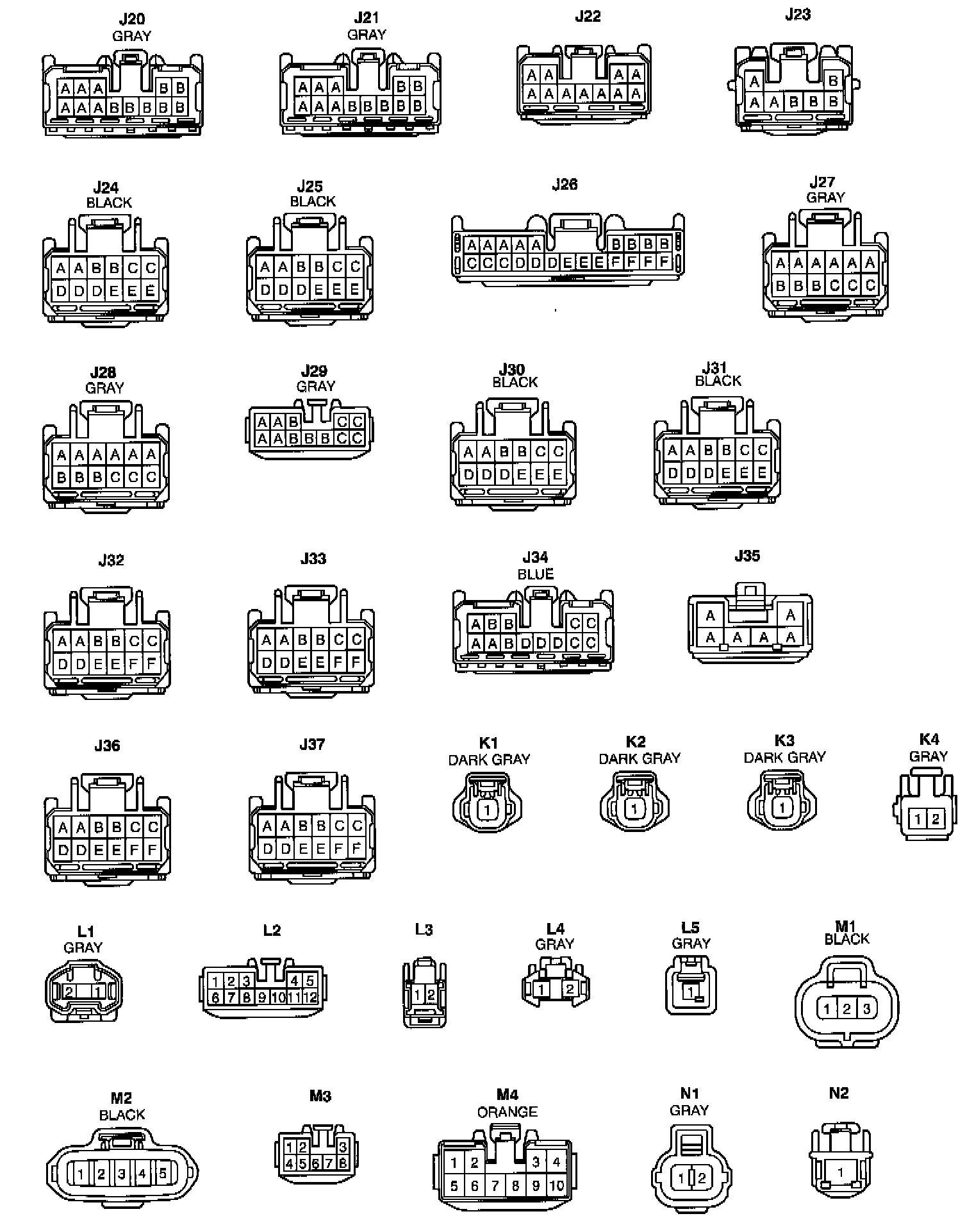

I15 - J19:
J20 - N2:

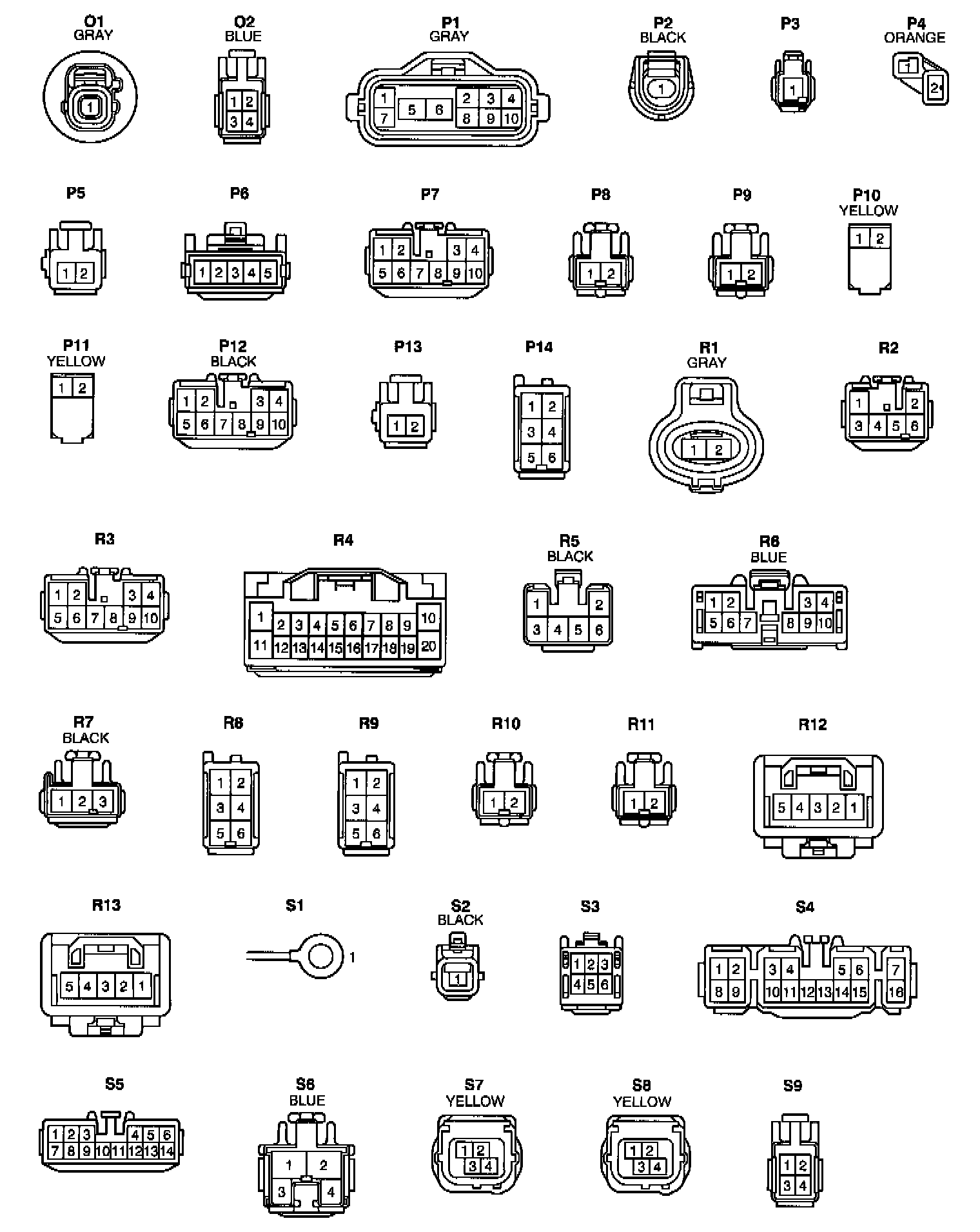

O1 - S9:
S10 - W6:
