Fuse, Relay, and Junction Block Data

Fusible Link Block:

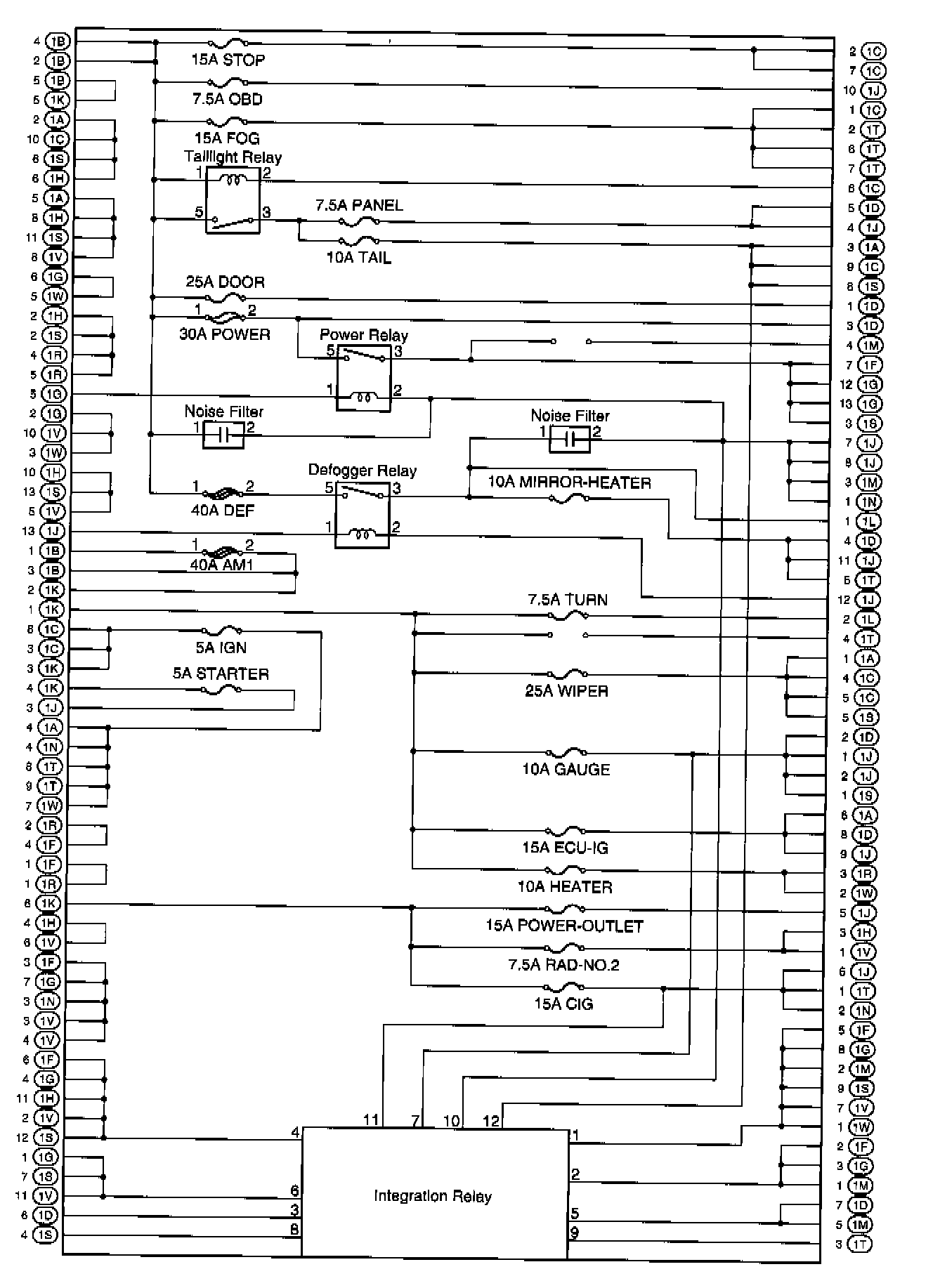

Instrument Panel J/B:

Instrument Panel J/B:

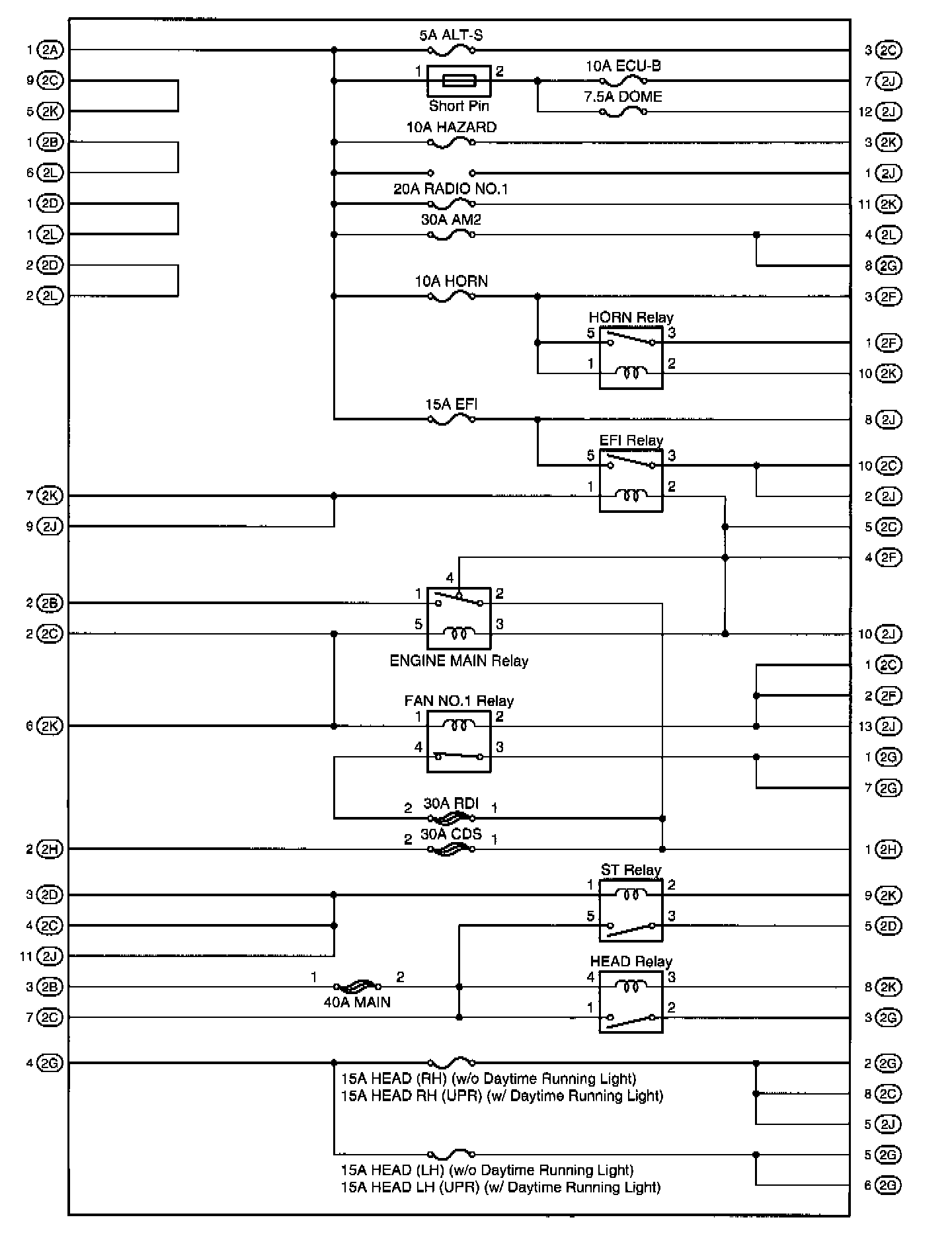

Engine Room J/B No. 2:

Engine Room J/B No. 2:

Engine Room R/B No. 1:

Engine Room R/B No. 2:

Engine Room R/B No. 3:

Fusible Link Block:
