Compressor Clutch Relay: Testing and Inspection

Magnetic Clutch Relay




1. REMOVE MAGNETIC CLUTCH RELAY (Marking: MG CLT) FROM NO.5 RELAY BLOCK

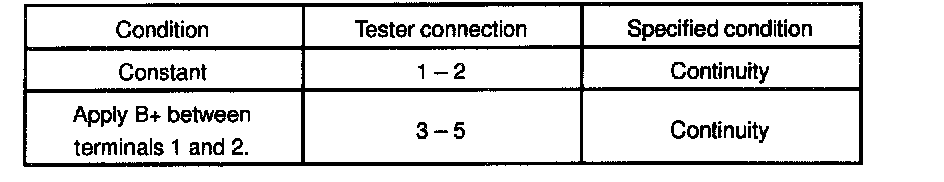

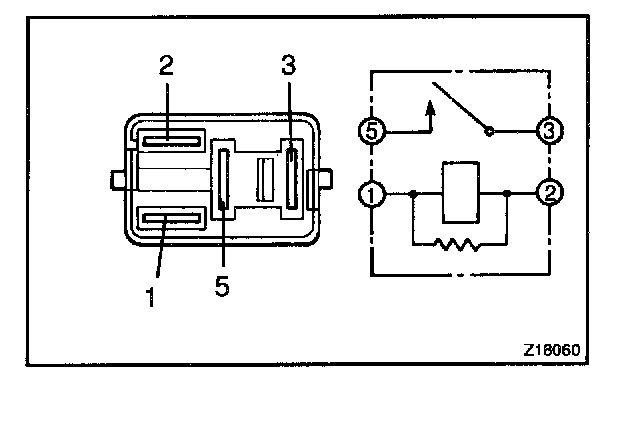

2. INSPECT MAGNETIC CLUTCH RELAY (Marking: MG CLT) CONTINUITY
If continuity is not as specified, replace the relay.
