Pinout Values and Diagnostic Parameters
ECU Views - (A16, A17):

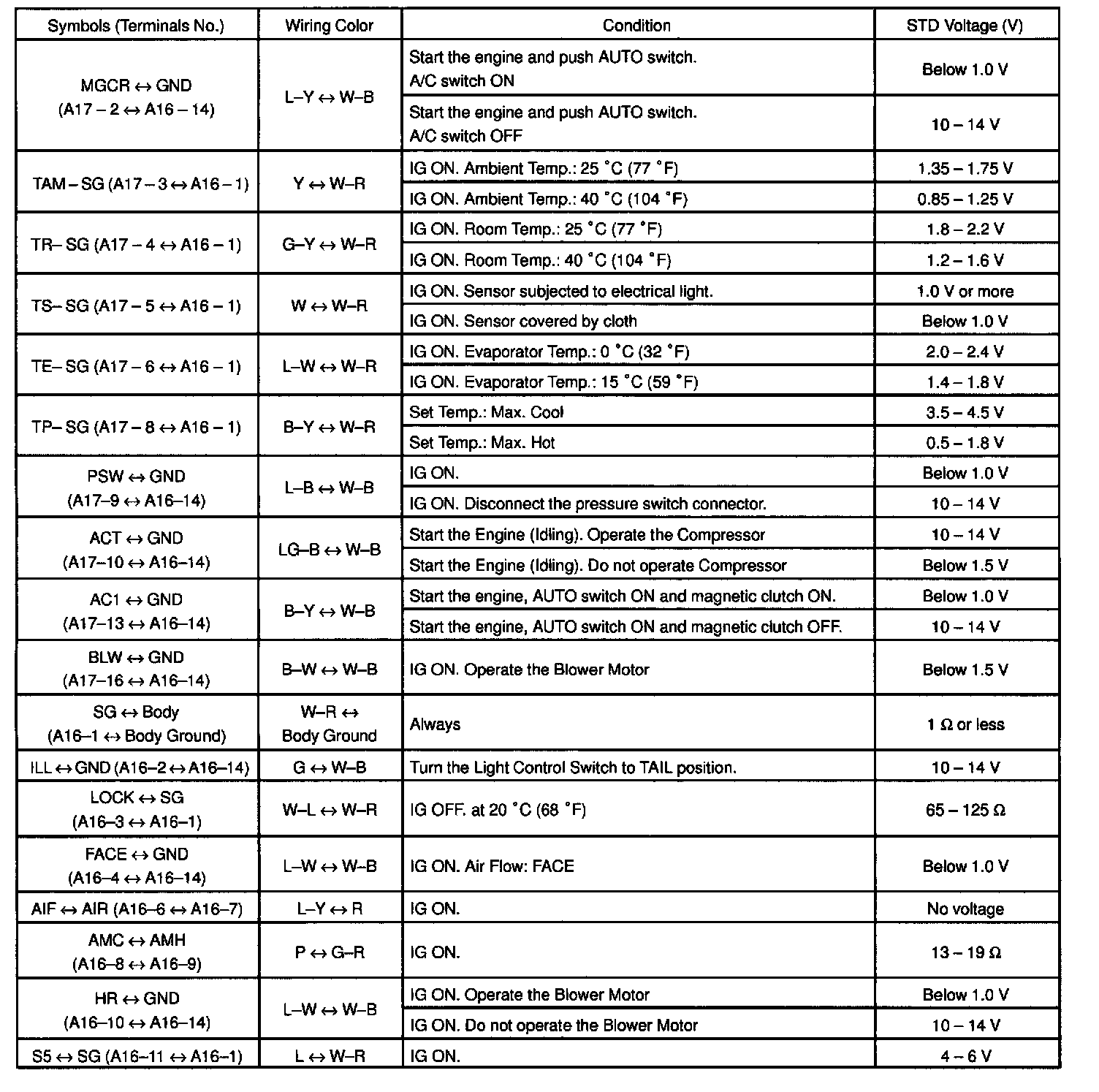

ECU Pinouts - (A16, A17) Part 1 Of 2:
ECU Pinouts - (A16, A17) Part 2 Of 2:
