Symptom Related Diagnostic Procedures

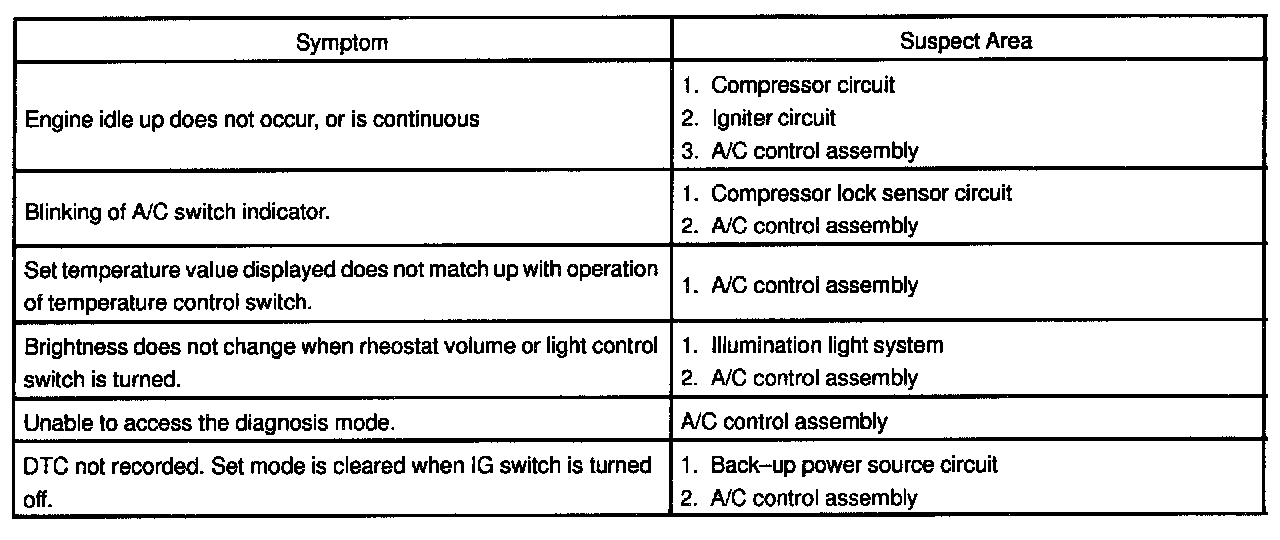

Problem Symptom Table (Part 1 Of 2):

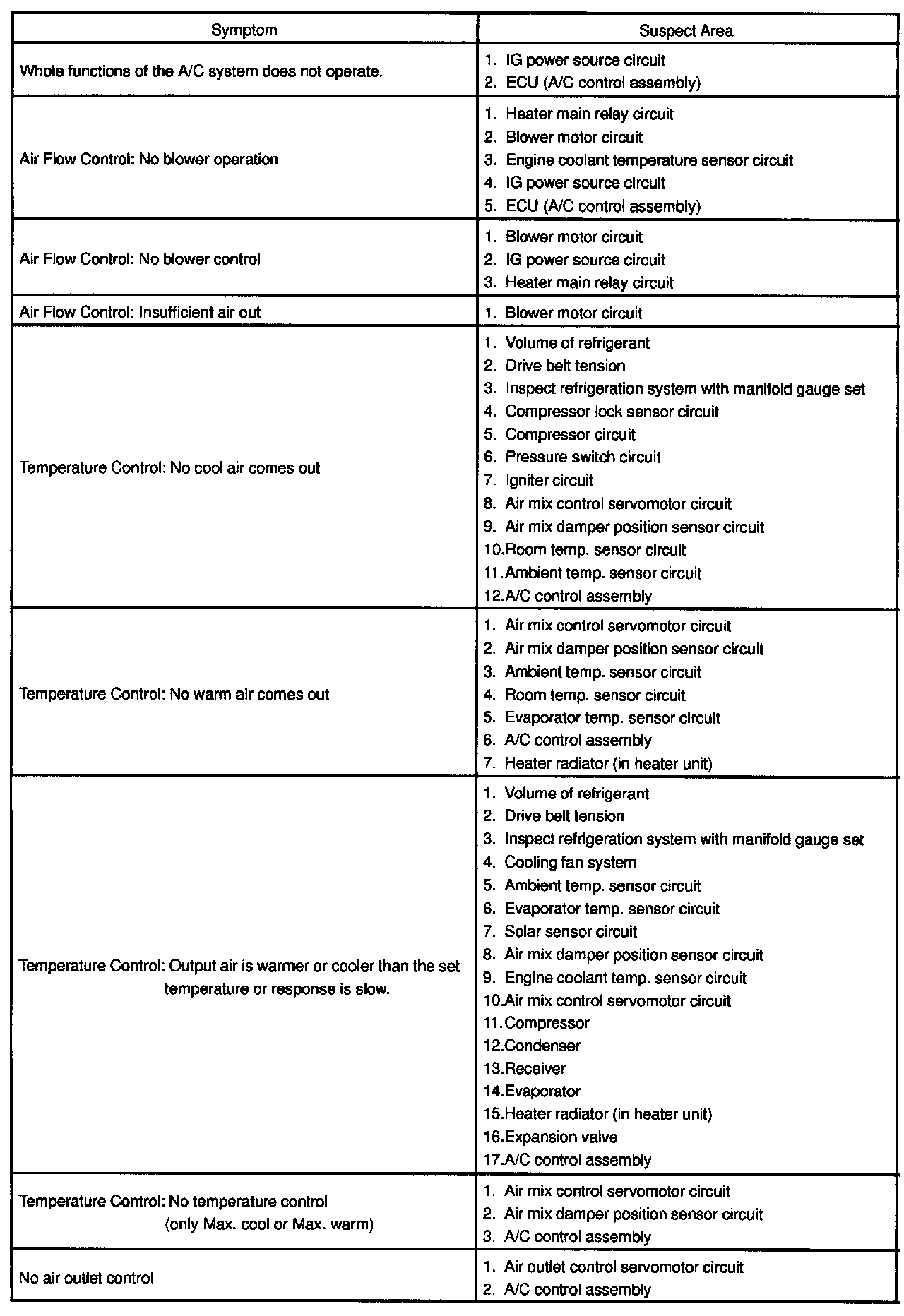

Problem Symptom Table (Part 2 Of 2):

PROBLEM SYMPTOMS TABLES
Use the tables to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, repair or replace the these parts.
