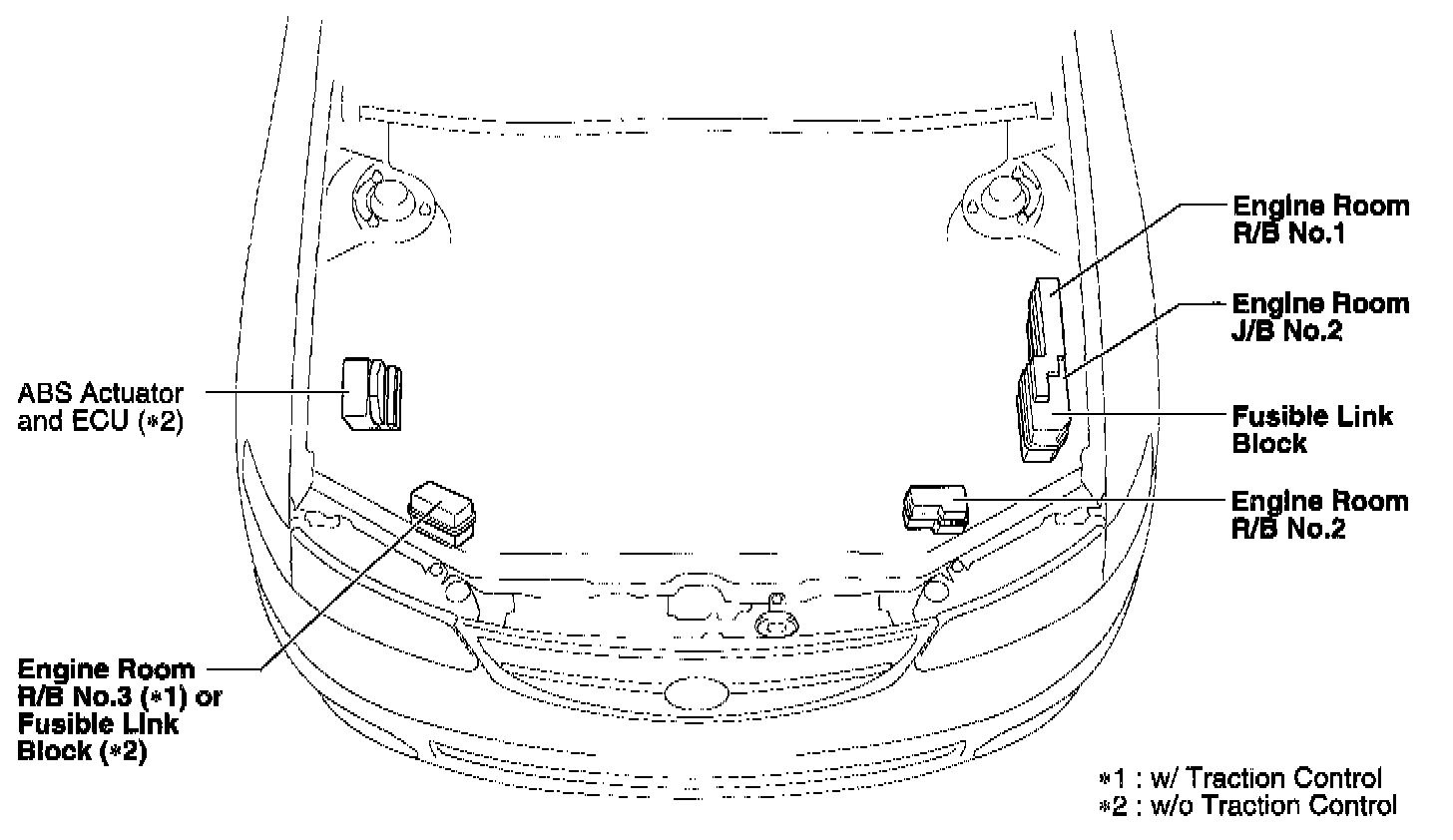

Relay Box: Locations

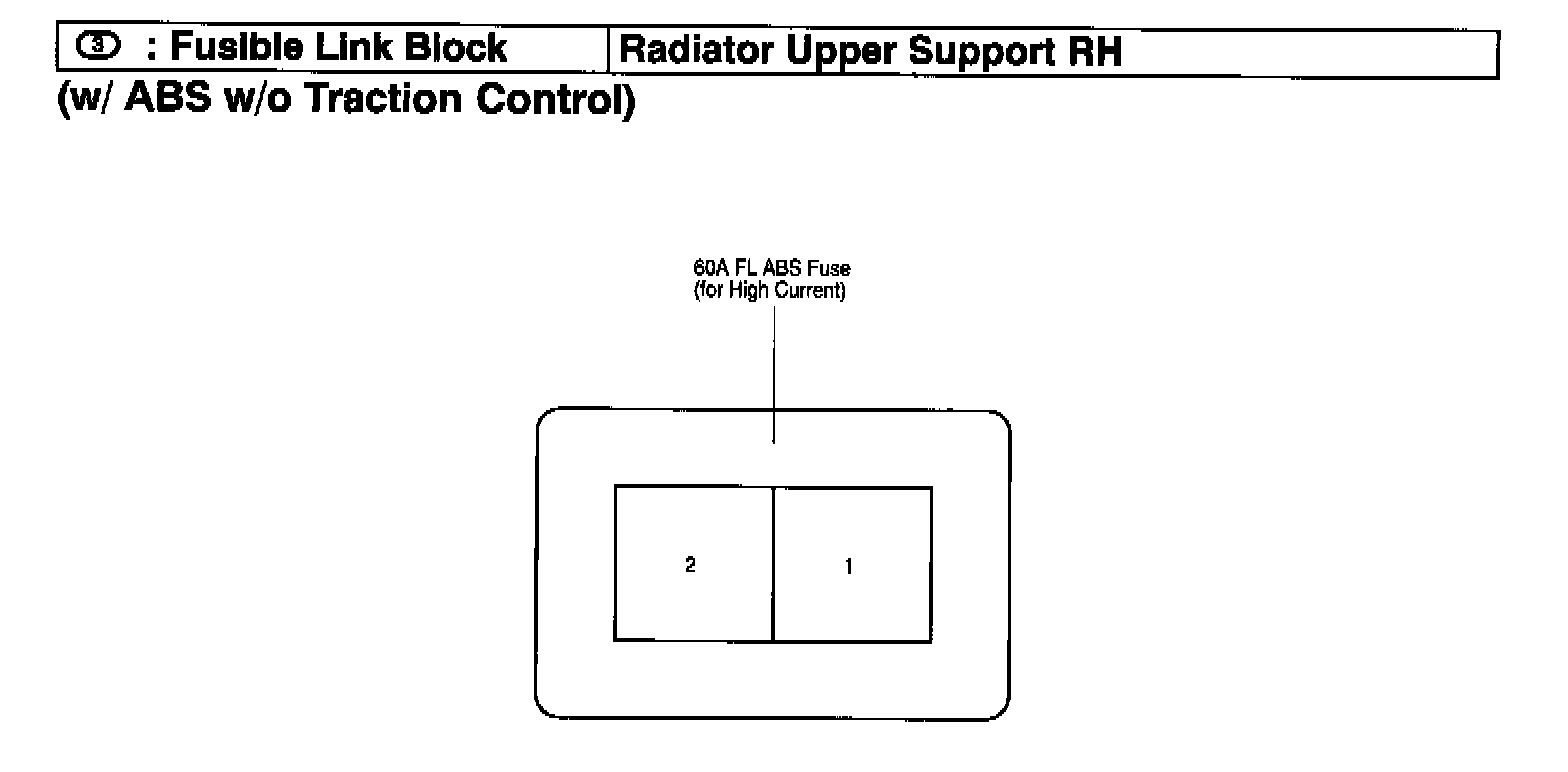

Fusible Link Block:

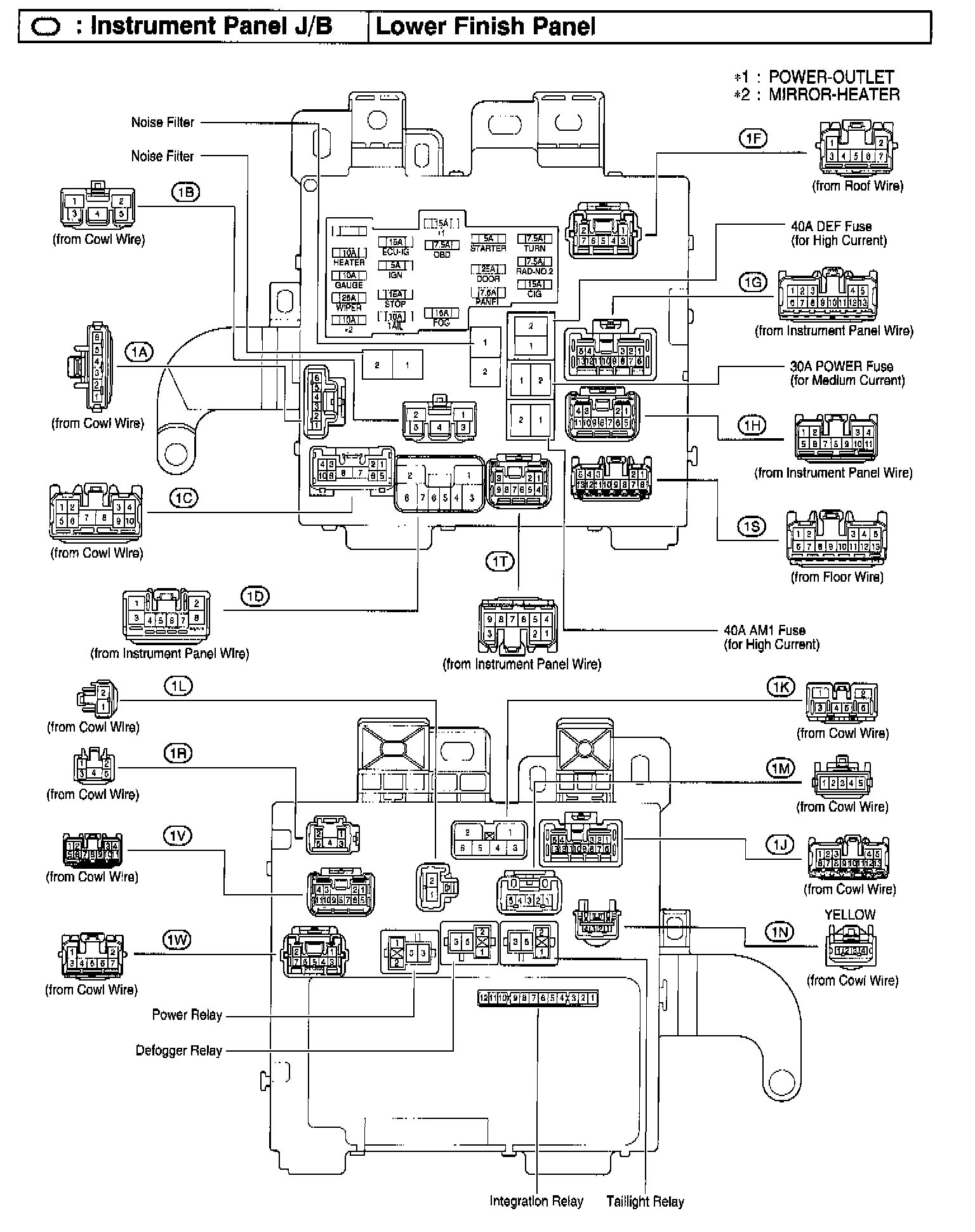

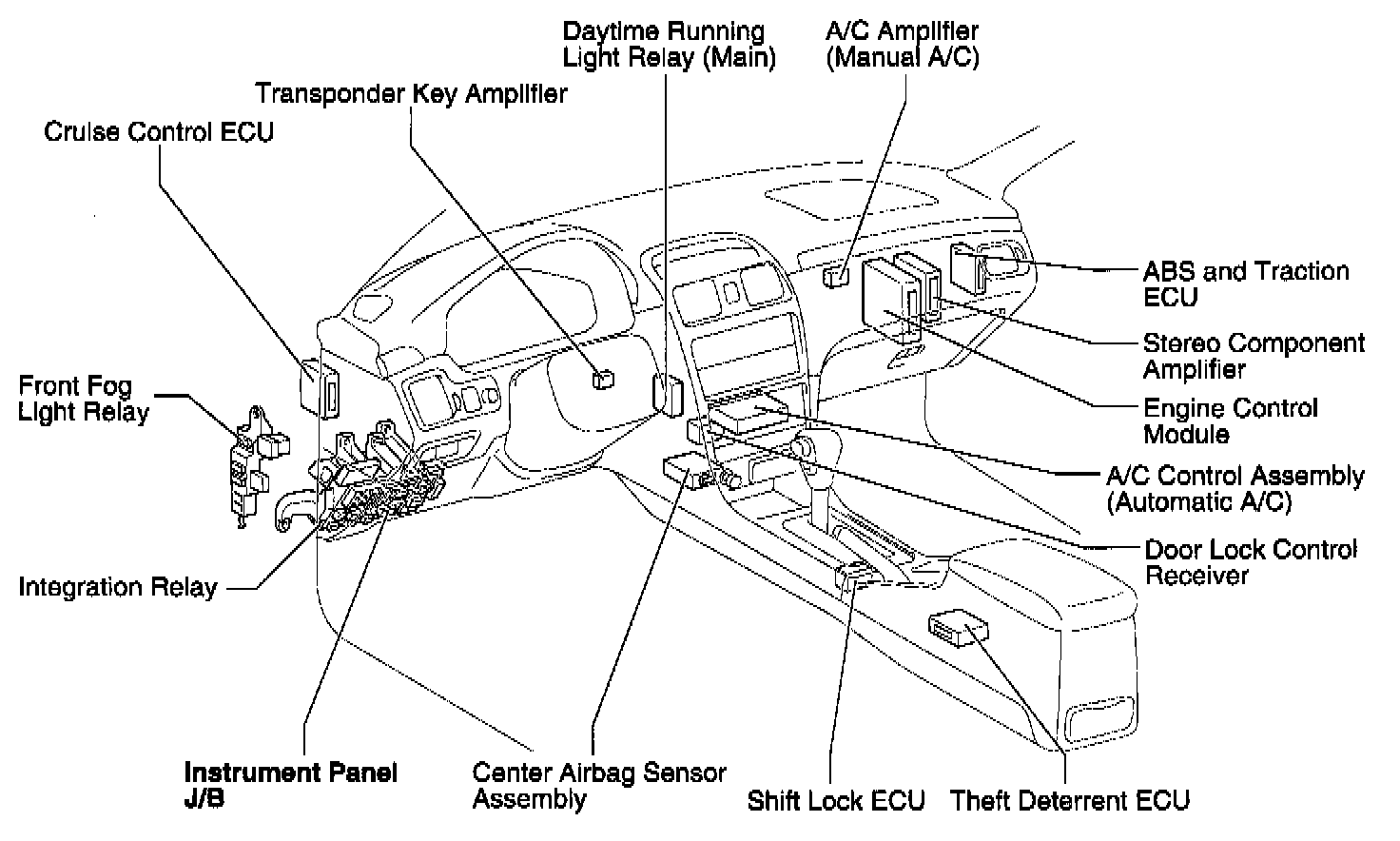

Instrument Panel J/B:




Engine Room J/B No. 2:

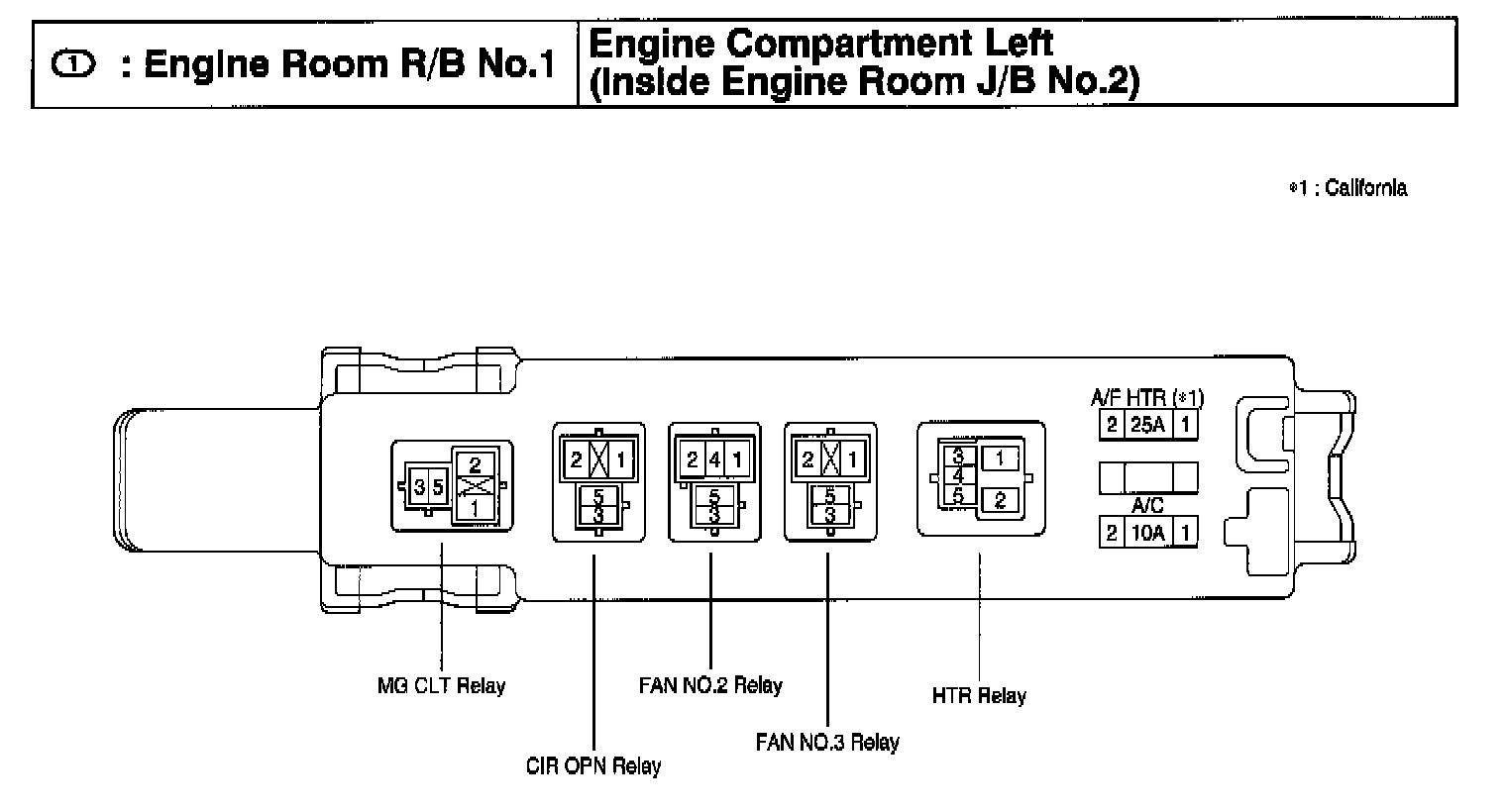

Engine Room R/B No. 1:




Engine Room R/B No. 2:

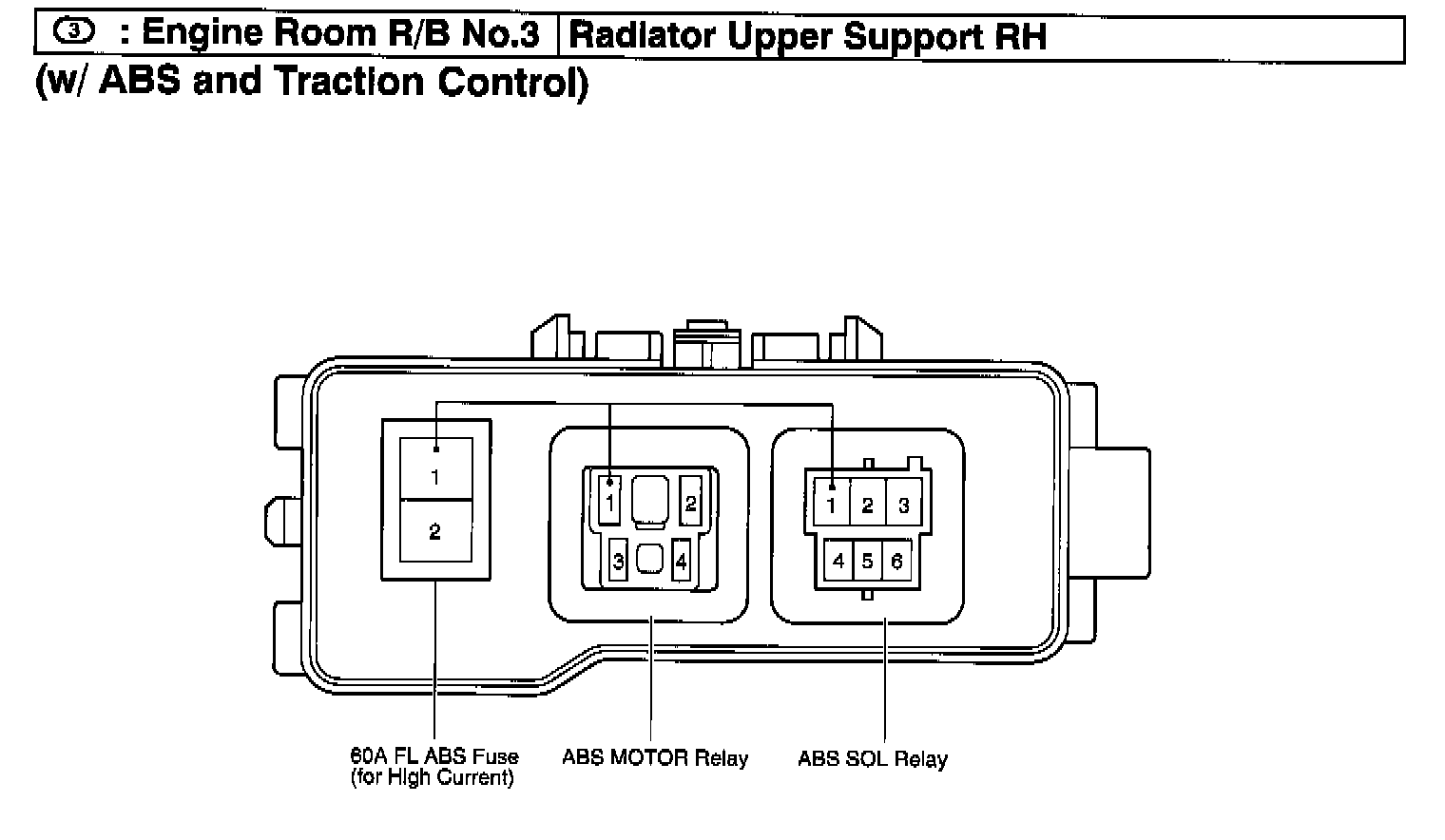

Engine Room R/B No. 3:




Fusible Link Block:
