Convertible - Pull Down Handle Uncomfortably Warm

BODY
BO034-00

December 15, 2000

Title:
NO. 1 BOW HANDLE INSULATION

Models:
'00 Solara Convertible

Introduction
The No.1 bow pull-down handle on the 2000 model year Solara Convertible may, in some instances, become uncomfortably warm if left in direct sun for extended periods. To help insulate the handle, a felt pad can be added as explained in the following procedure.

Applicable Vehicles
^ 2000 model year Solara Convertible.





Production Change Information





Parts Information

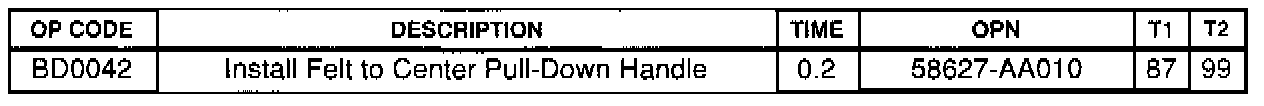

Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Application Procedure

Apply felt pad material to the center pull-down handle of the No. 1 bow.

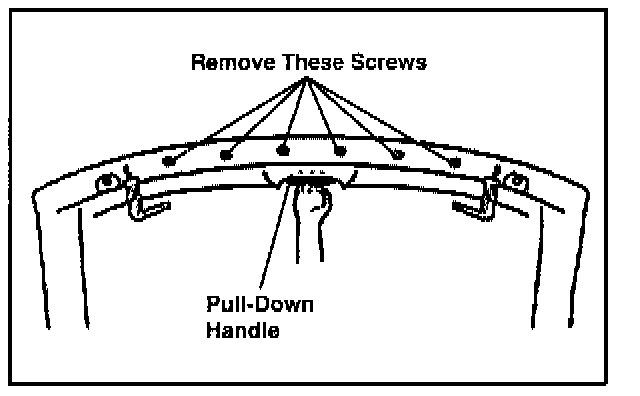

1. Remove the 6 screws (shown in illustration) to gain access to the center pull-down handle.





2. Pull up the black plastic cover of the No. 1 bow to gain access to the underside of the center pull-down handle.





3. Apply the felt pad to the underside of the pull-down handle.

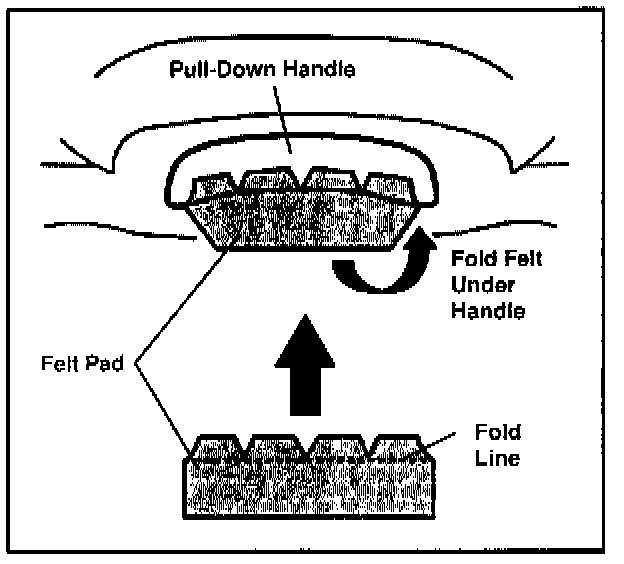

A. Fold felt pad along dotted line.

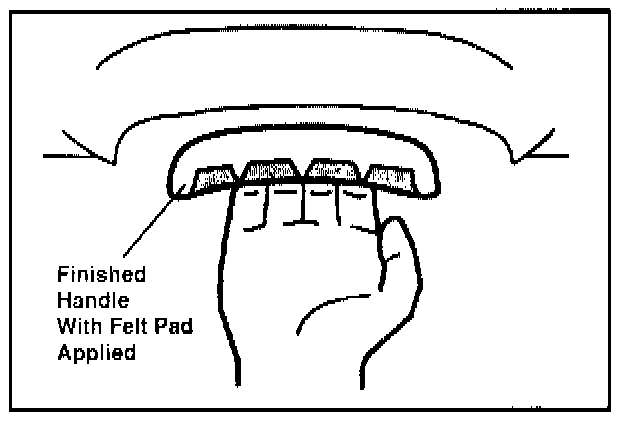

B. Apply to the handle as shown in illustration. Fold should line up with edge of pull-down handle.





4. Reinstall screws.
