C0246

CIRCUIT DESCRIPTION
This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel cylinders thus controlling the braking force.




DETECTING CONDITIONS

HINT:
- DTC No. C0226/21 is for right front solenoid valve.
- DTC No. C0236/22 is for left front solenoid valve.
- DTC No. C0246/23 is for right rear solenoid valve.
- DTC No. C0256/24 is for left rear solenoid valve.

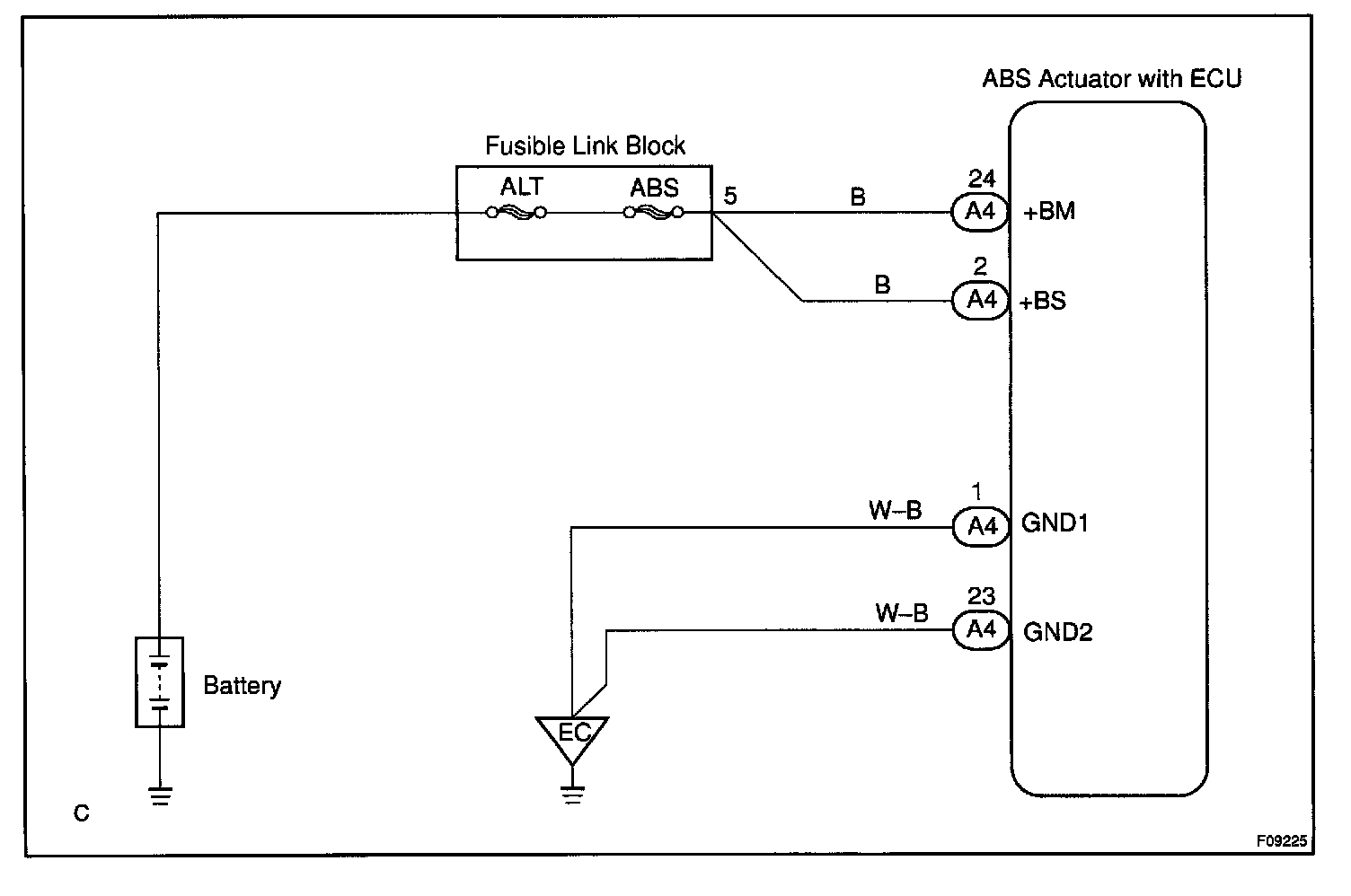

WIRING DIAGRAM

Step 1:

INSPECTION PROCEDURE
