C0279

CIRCUIT DESCRIPTION
This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.




DETECTING CONDITIONS

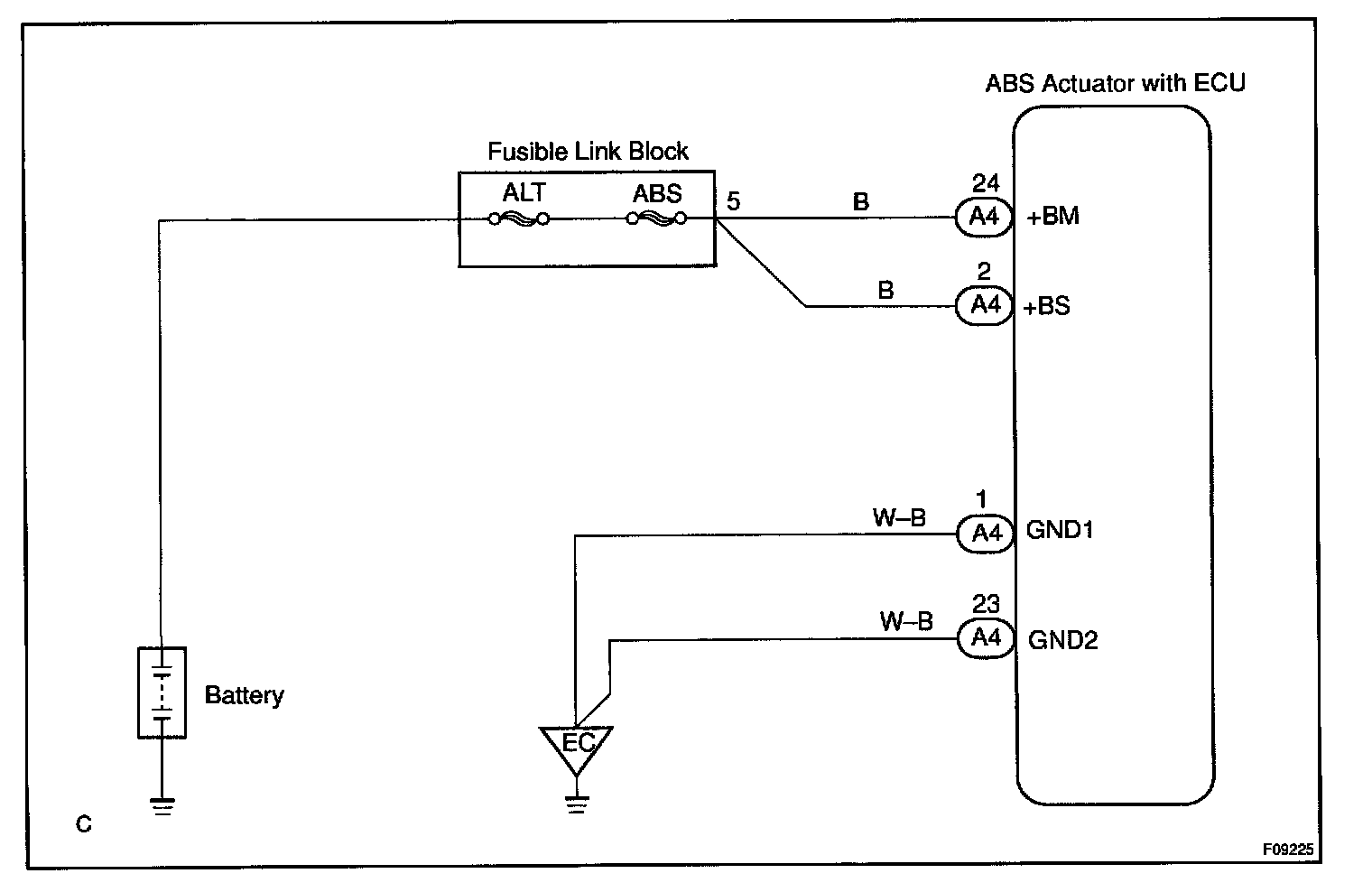

WIRING DIAGRAM

Step 1:

Step 2:

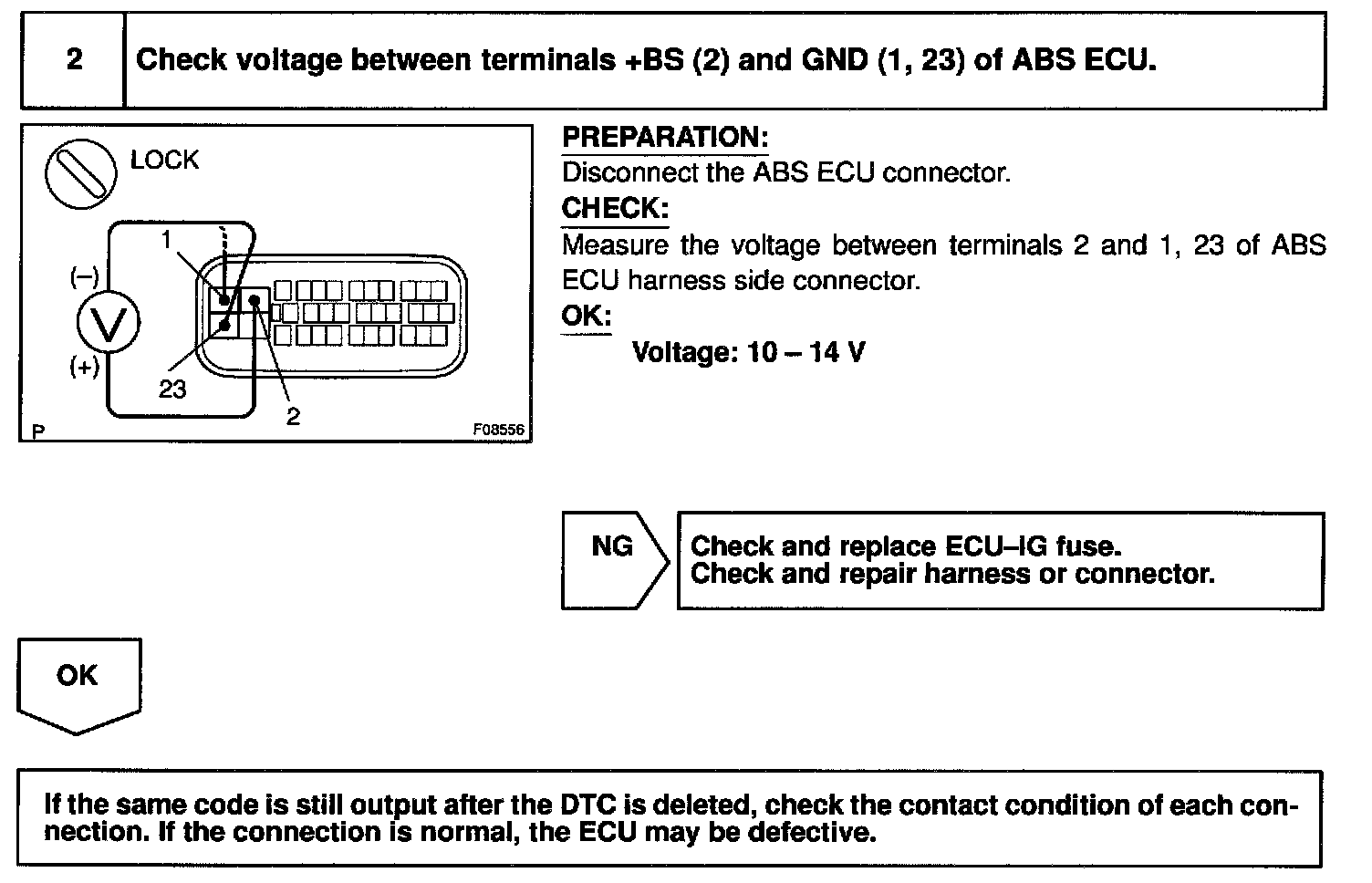

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the TOYOTA hand-held tester and start from step 2 in case of not using the TOYOTA hand-held tester.
