Antitheft and Alarm Systems: Service and Repair

1. OUT LINE OF THEFT DETERRENT SYSTEM
When the theft deterrent system detects any theft, it informs people around with flashing lights and sound.

2. PARTIAL CHANGE OF SYSTEM SETTING METHOD

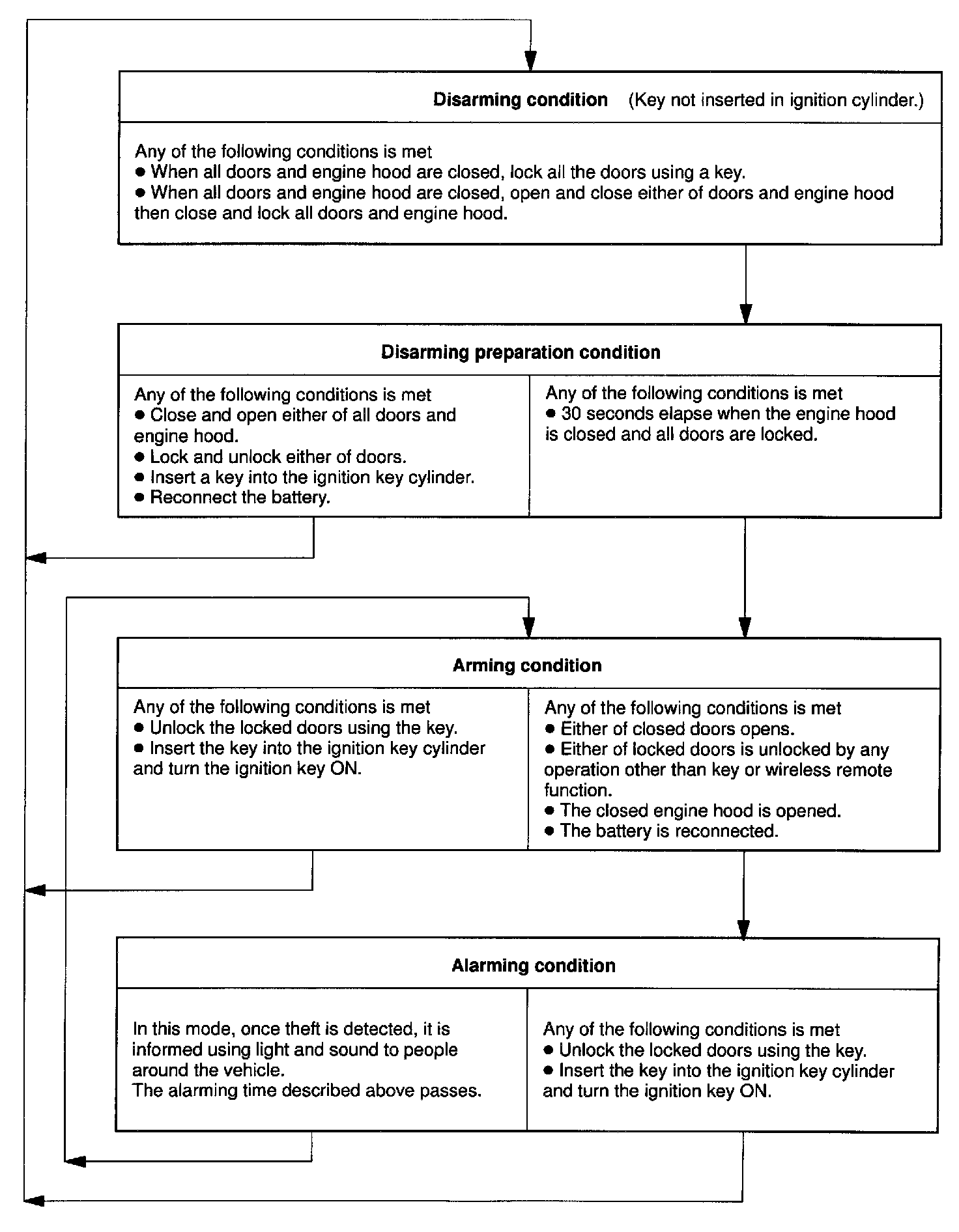

There are 4 conditions in this system which are disarmed state, arming preparation, armed state and alarm sounding.

1. Disarmed state
- When the alarming function does not operate.
- When theft deterrent function is not performed.

2. Arming preparation
- Time until transferring to armed state.
- Theft deterrent function is not performed.

3. Armed state
When theft deterrent function is possible.

4. Alarm sounding:
In this condition, once theft is detected, it is informed using light and sound to people around the vehicle.

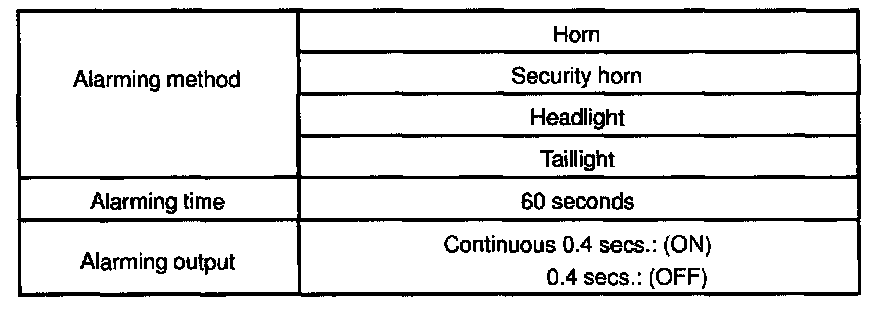

Refer to the table for alarming method or time.

HINT: In the arming condition when either of doors is unlocked with key not in the key cylinder, force lock signal is output.





3. ACTIVE ARMING MODE





Indicator light output:
