Connector Code Lists

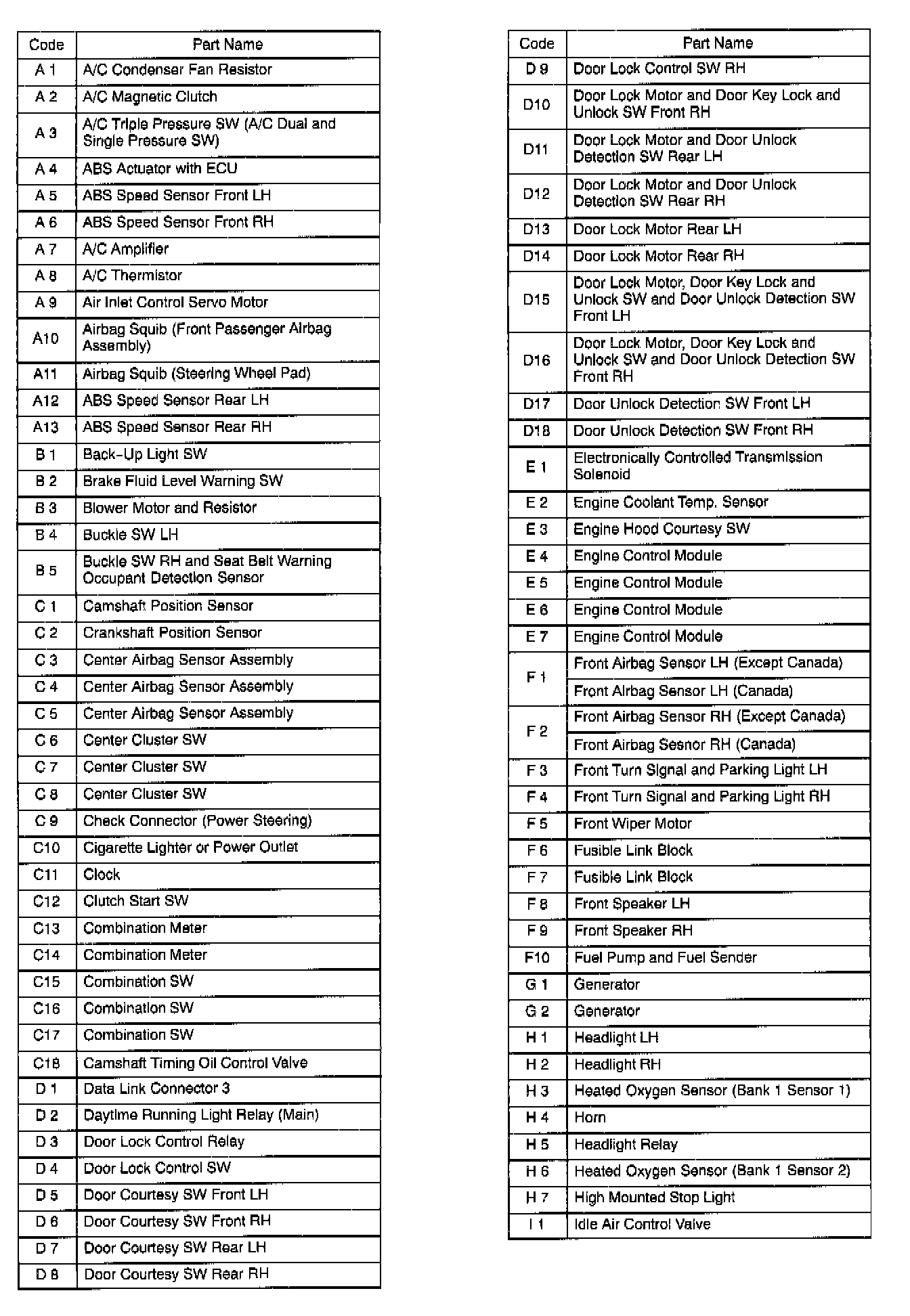

Part 1 Of 2:
Part 2 Of 2:
A1 - C9:

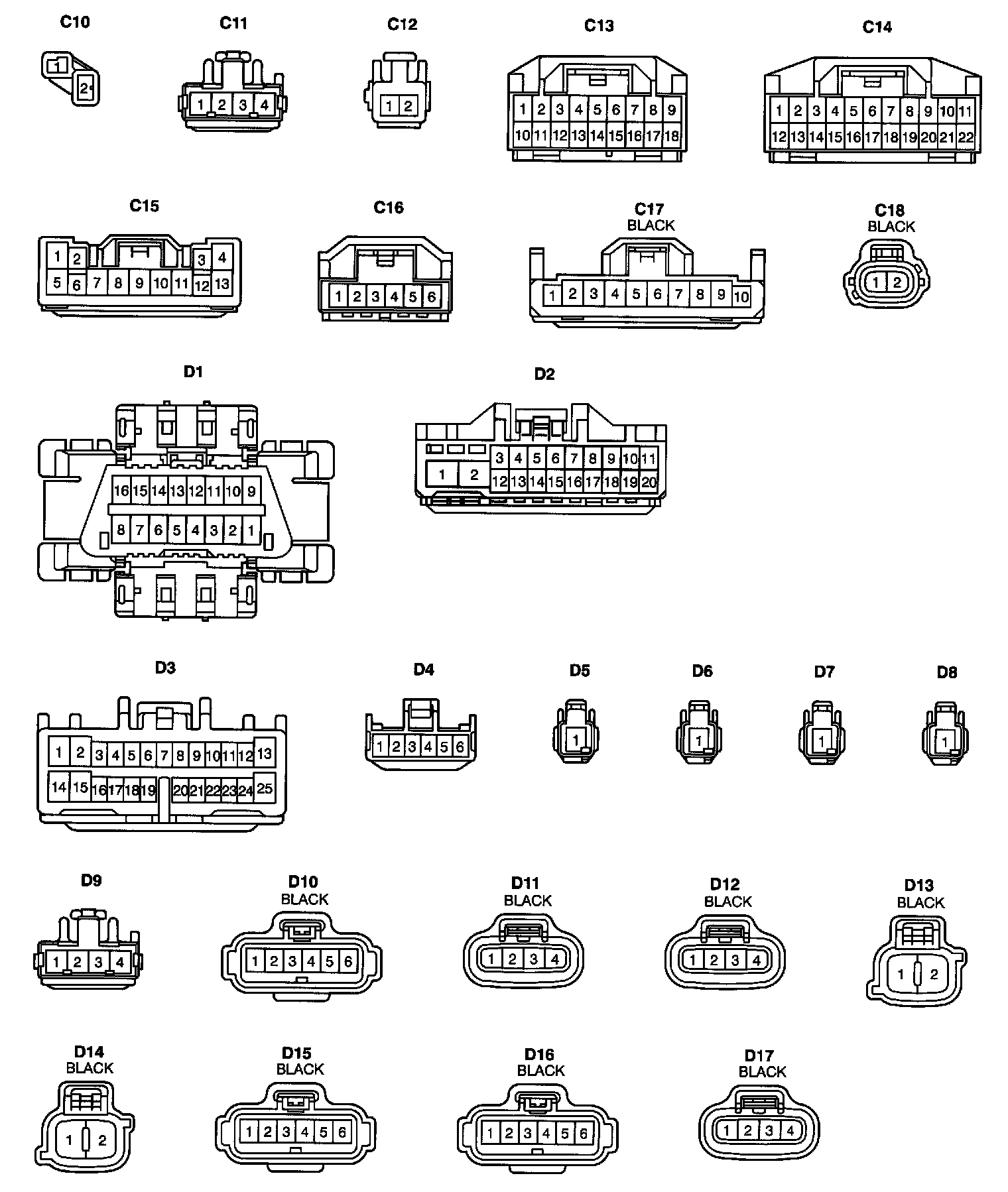

C10 - D17:
D18 - H6:

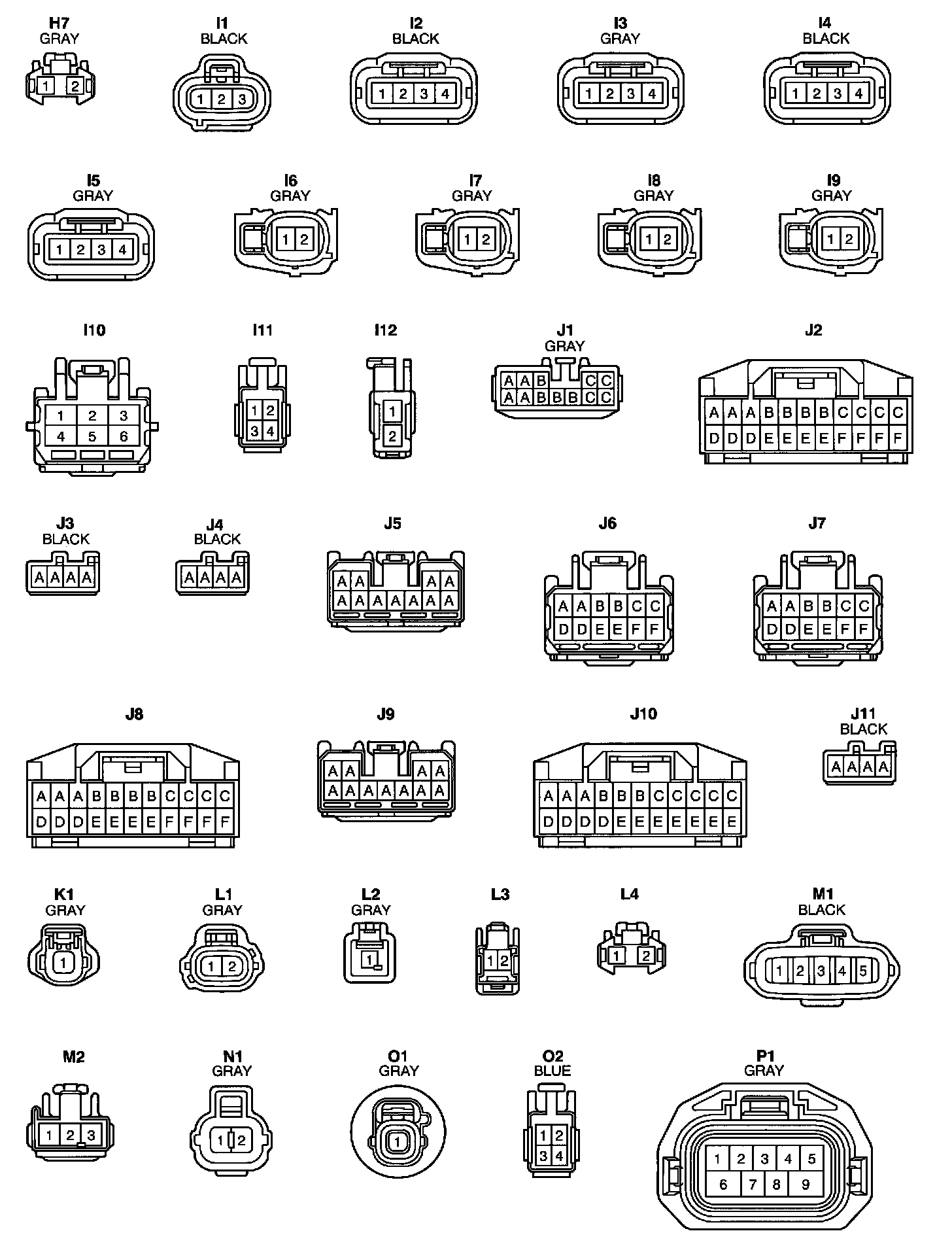

H7 - P1:
P2 - T3:
T4 - W5:
