Symptom Related Diagnostic Procedures

Part 1 Of 2 / Standard:

Part 2 Of 2 / Standard:

Two Way Flow Heater:

PTC Heater:

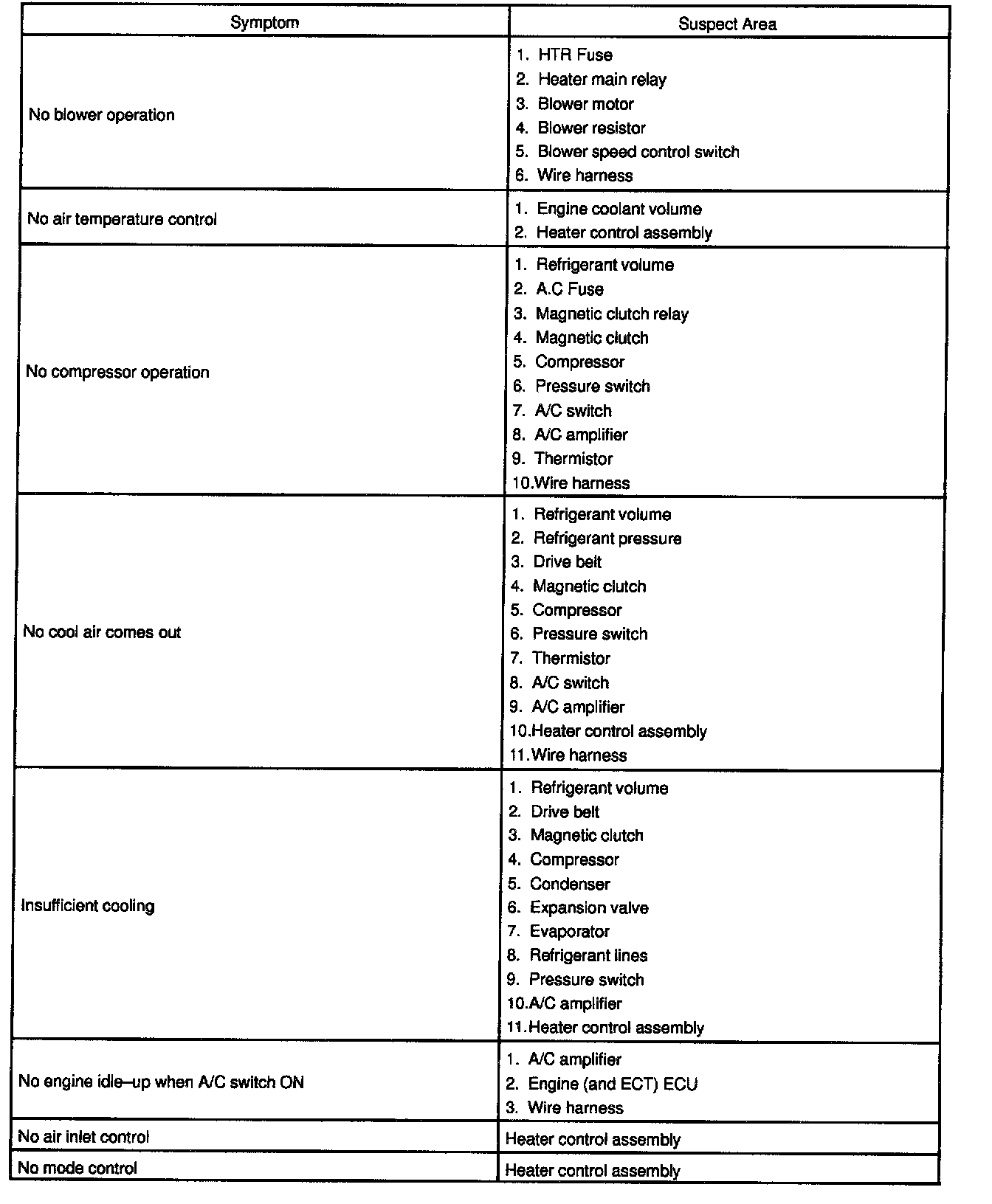

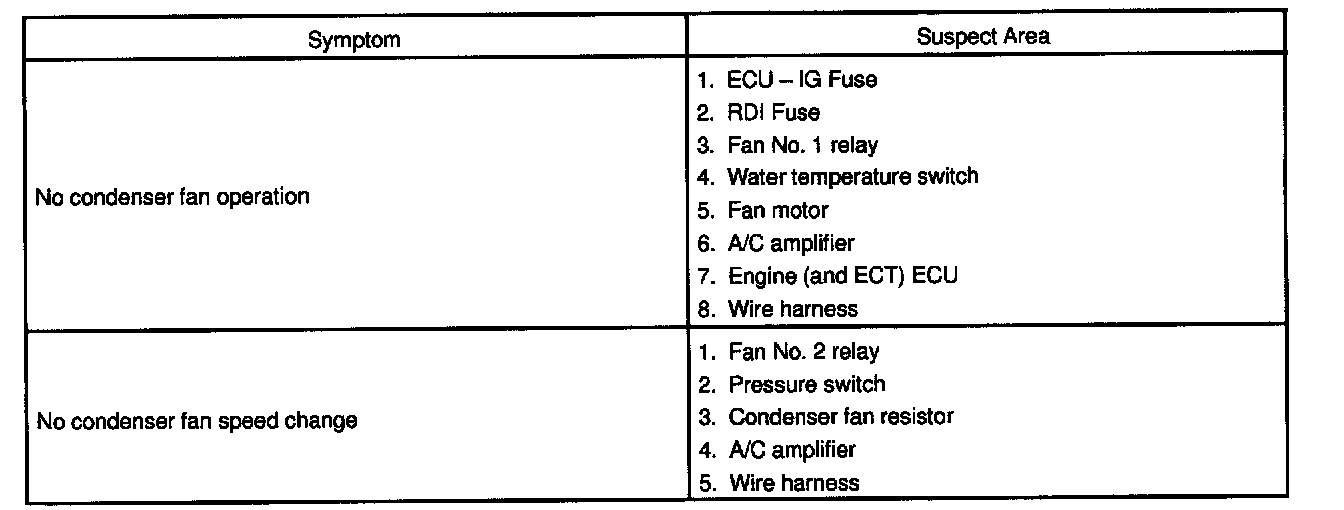

PROBLEM SYMPTOMS TABLES
Use the table to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
