Clock: Testing and Inspection

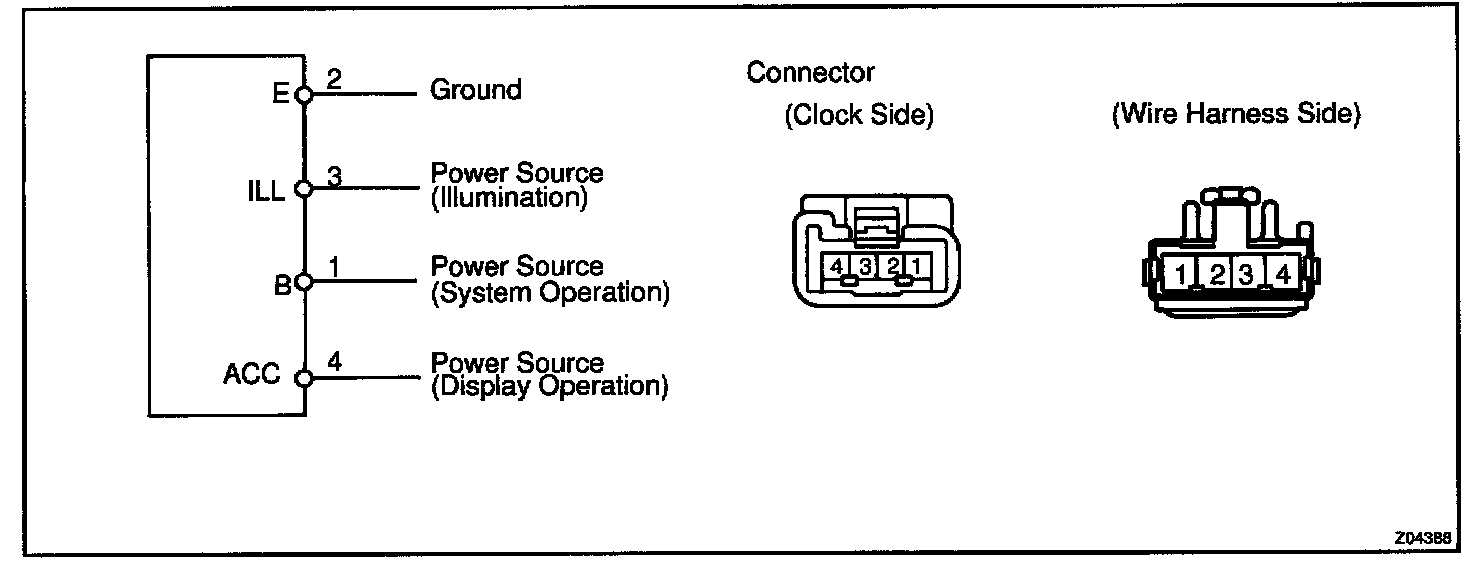

Step 1:




Step 2:

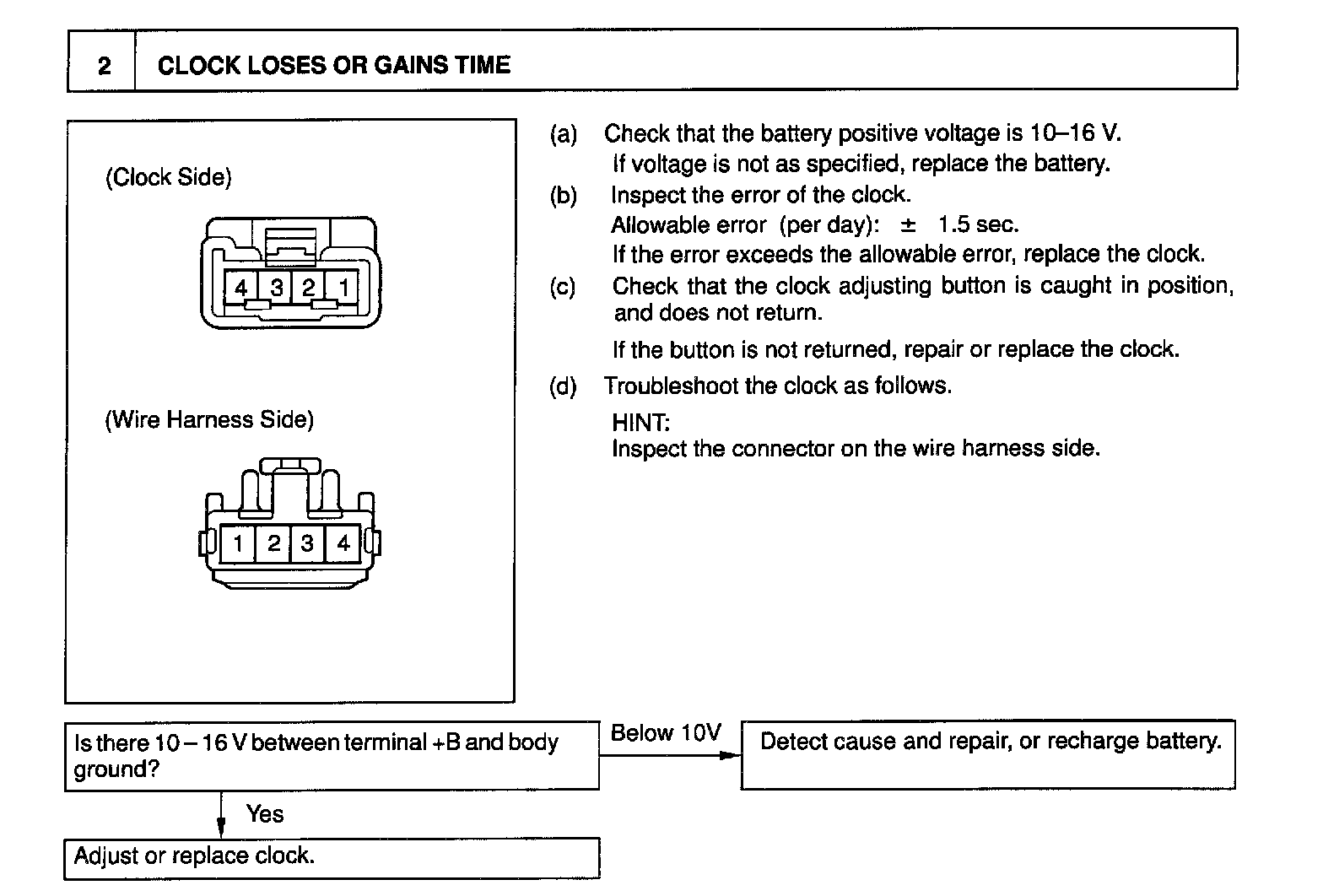

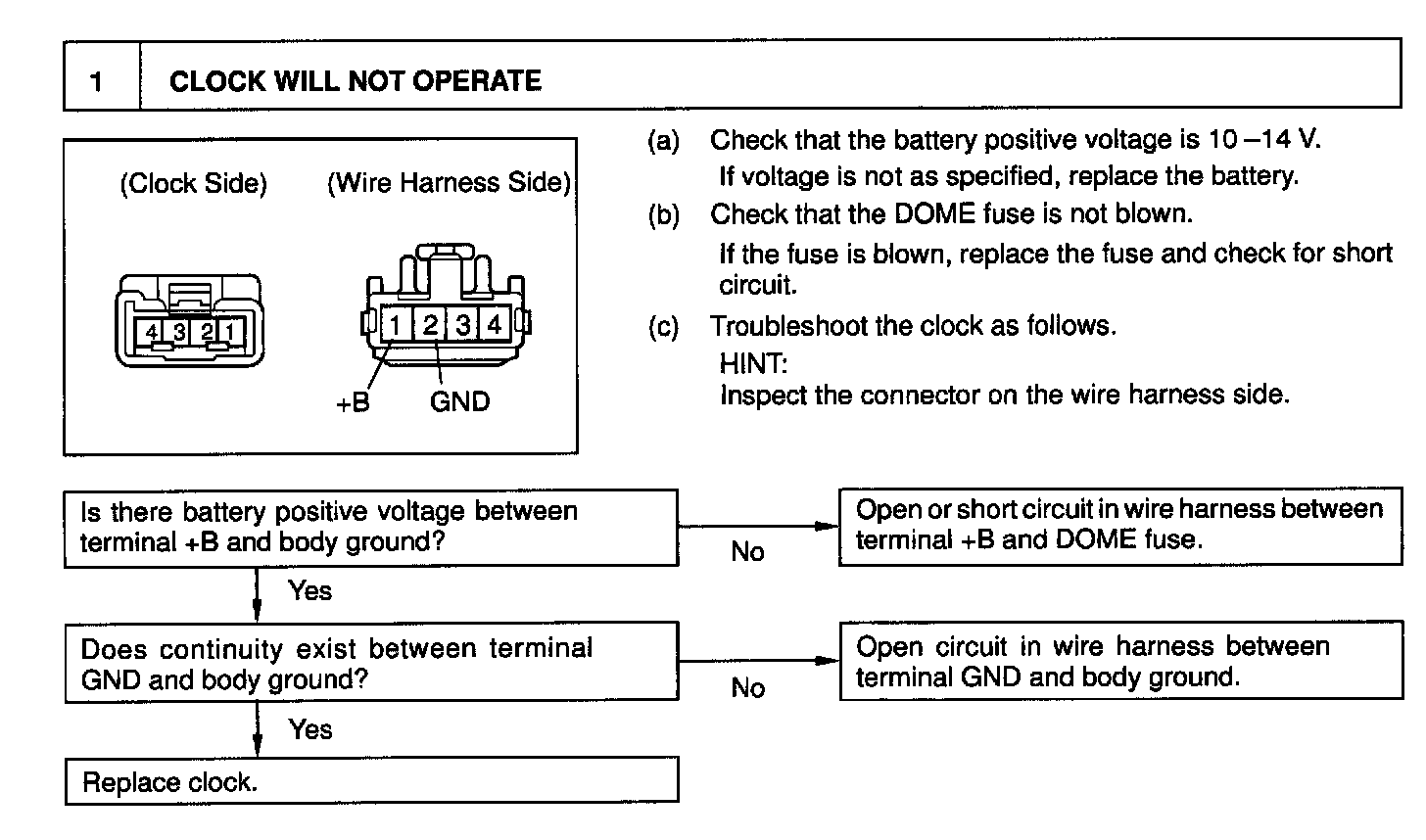

HINT: Troubleshoot the clock according to the table.
