Door Lock Reminder Light: Testing and Inspection




INSPECT OPEN DOOR WARNING LIGHT.

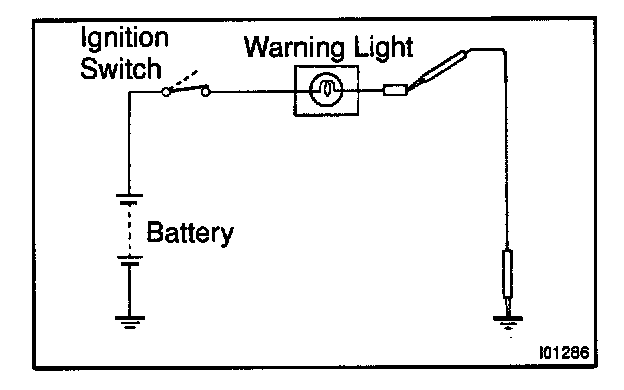

Disconnect the connector from the door courtesy switch and ground terminal 1 on the wire harness side, and check that the warning light lights up.
If the warning light does not light up, inspect the bulb or wire harness.
