Fuel Gauge Sender: Testing and Inspection

INSPECT FUEL SENDER GAUGE RESISTANCE.

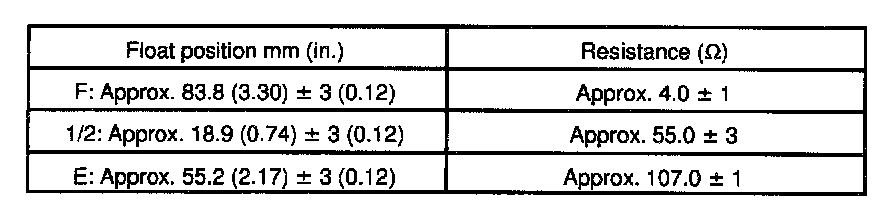

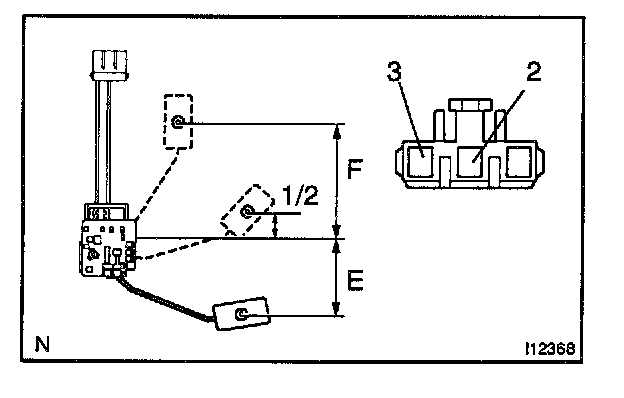

Measure the resistance between terminals 2 and 3 for each float position.
If resistance value is not as specified, replace the sender gauge.
