Brake Light Switch: Testing and Inspection

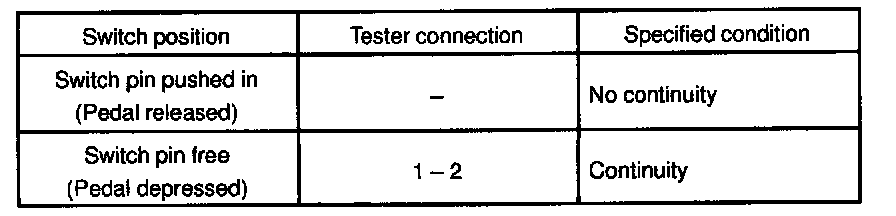

INSPECT STOP LIGHT SWITCH CONTINUITY.
If continuity is not as specified, replace the switch.
