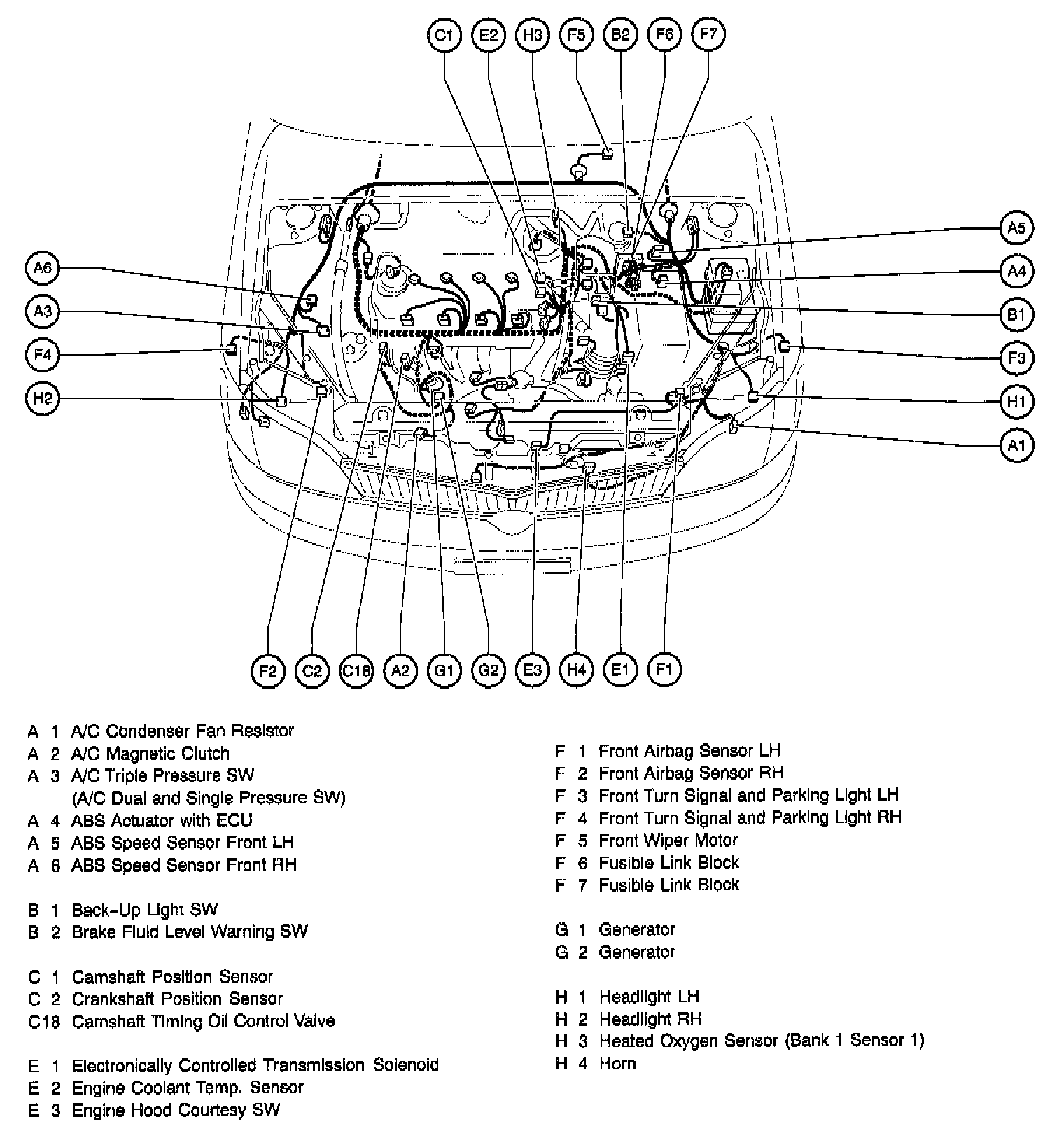

Engine Compartment

A 1 A/C Condenser Fan Resistor
A 2 A/C Magnetic Clutch
A 3 A/C Triple Pressure SW (A/C Dual and Single Pressure SW)
A 4 ABS Actuator with ECU
A 5 ABS Speed Sensor Front LH
A 6 ABS Speed Sensor Front RH

B 1 Back-Up Light SW
B 2 Brake Fluid Level Warning SW

C 1 Camshaft Position Sensor
C 2 Crankshaft Position Sensor
C18 Camshaft Timing Oil Control Valve

E 1 Electronically Controlled Transmission Solenoid
E 2 Engine Coolant Temp. Sensor
E 3 Engine Hood Courtesy SW

F 1 Front Airbag Sensor LH
F 2 Front Airbag Sensor RH
F 3 Front Turn Signal and Parking Light LH
F 4 Front Turn Signal and Parking Light RH
F 5 Front Wiper Motor
F 6 Fusible Link Block
F 7 Fusible Link Block

G 1 Generator
G 2 Generator

H 1 Headlight LH
H 2 Headlight RH
H 3 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 4 Horn

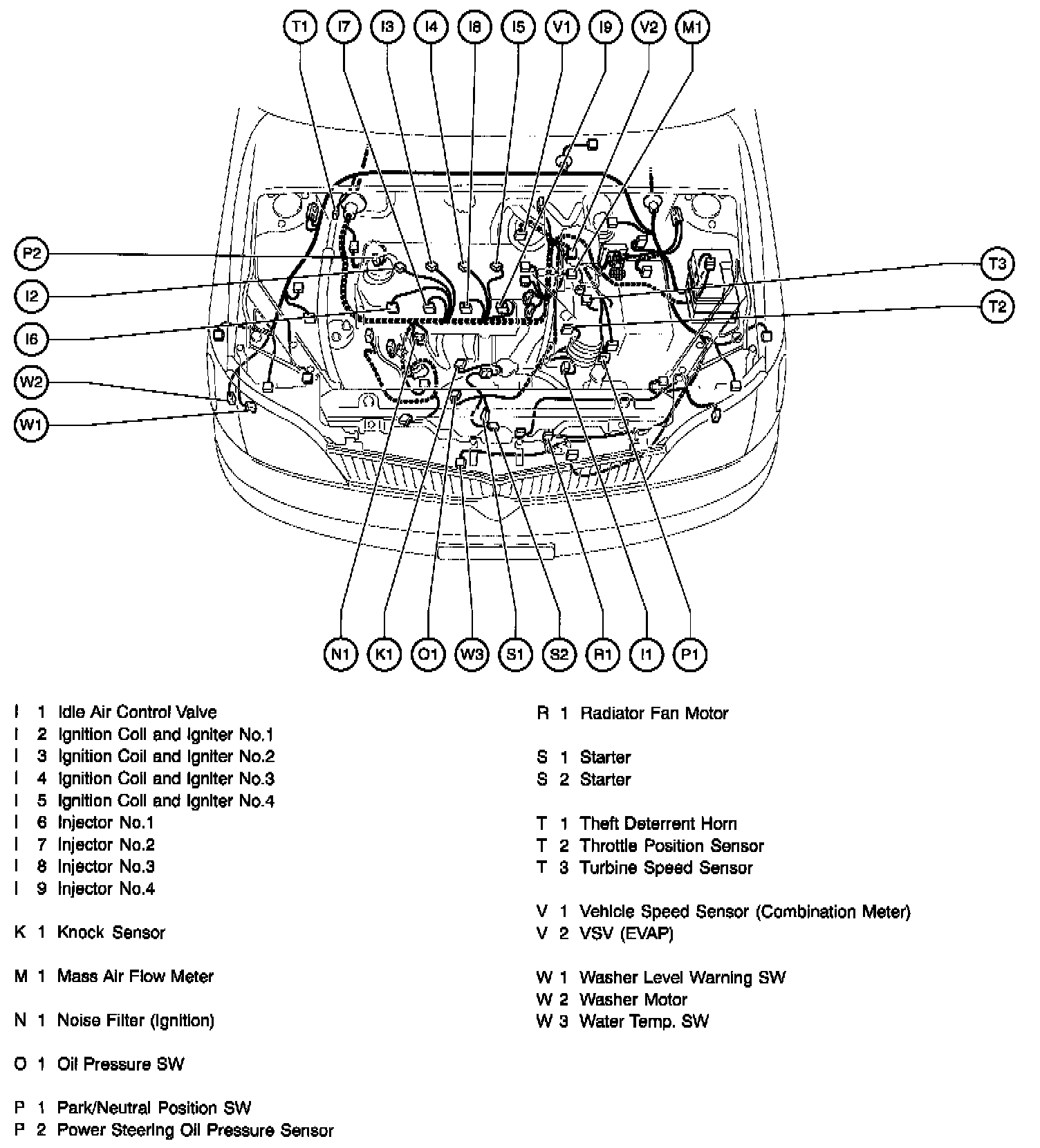

I 1 Idle Air Control Valve
I 2 Ignition Coil and Igniter No.1
I 3 Ignition Coil and Igniter No.2
I 4 Ignition Coil and Igniter No.3
I 5 Ignition Coil and Igniter No.4
I 6 Injector No.1
I 7 Injector No.2
I 8 Injector No.3
I 9 Injector No.4

K 1 Knock Sensor

M 1 Mass Air Flow Meter

N 1 Noise Filter (Ignition)

O 1 Oil Pressure SW

P 1 Park/Neutral Position SW
P 2 Power Steering Oil Pressure Sensor

R 1 Radiator Fan Motor

S 1 Starter
S 2 Starter

T 1 Theft Deterrent Horn
T 2 Throttle Position Sensor
T 3 Turbine Speed Sensor

V 1 Vehicle Speed Sensor (Combination Meter)
V 2 VSV (EVAP)

W 1 Washer Level Warning SW
W 2 Washer Motor
W 3 Water Temp. SW
