Drive Belt: Service and Repair

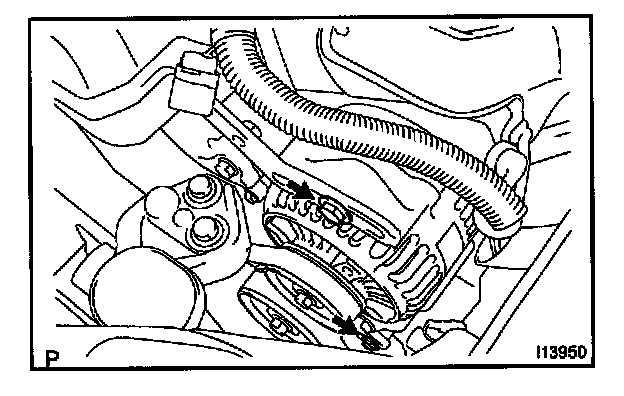

REMOVAL




a. Loosen the pivot bolt.
b. Loosen the drive belt tension by turning adjusting bolt and remove the drive belt.

INSTALLATION




a. Install the drive belt.
b. Apply drive belt tension by turning adjusting bolt.
Drive belt tension:
New belt: 7.0 - 8.5 mm (0.28 - 0.33 in.)
Used belt: 11.0 - 13.0 mm (0.43 - 0.51 in.)
c. Tighten the pivot bolt.
Torque: 54 Nm (540 kg.cm, 39 ft.lb)
