Fuse: Application and ID
Fusible Link Block:
Engine Room R/B:
Instrument Panel J/B:
Instrument Panel J/B:

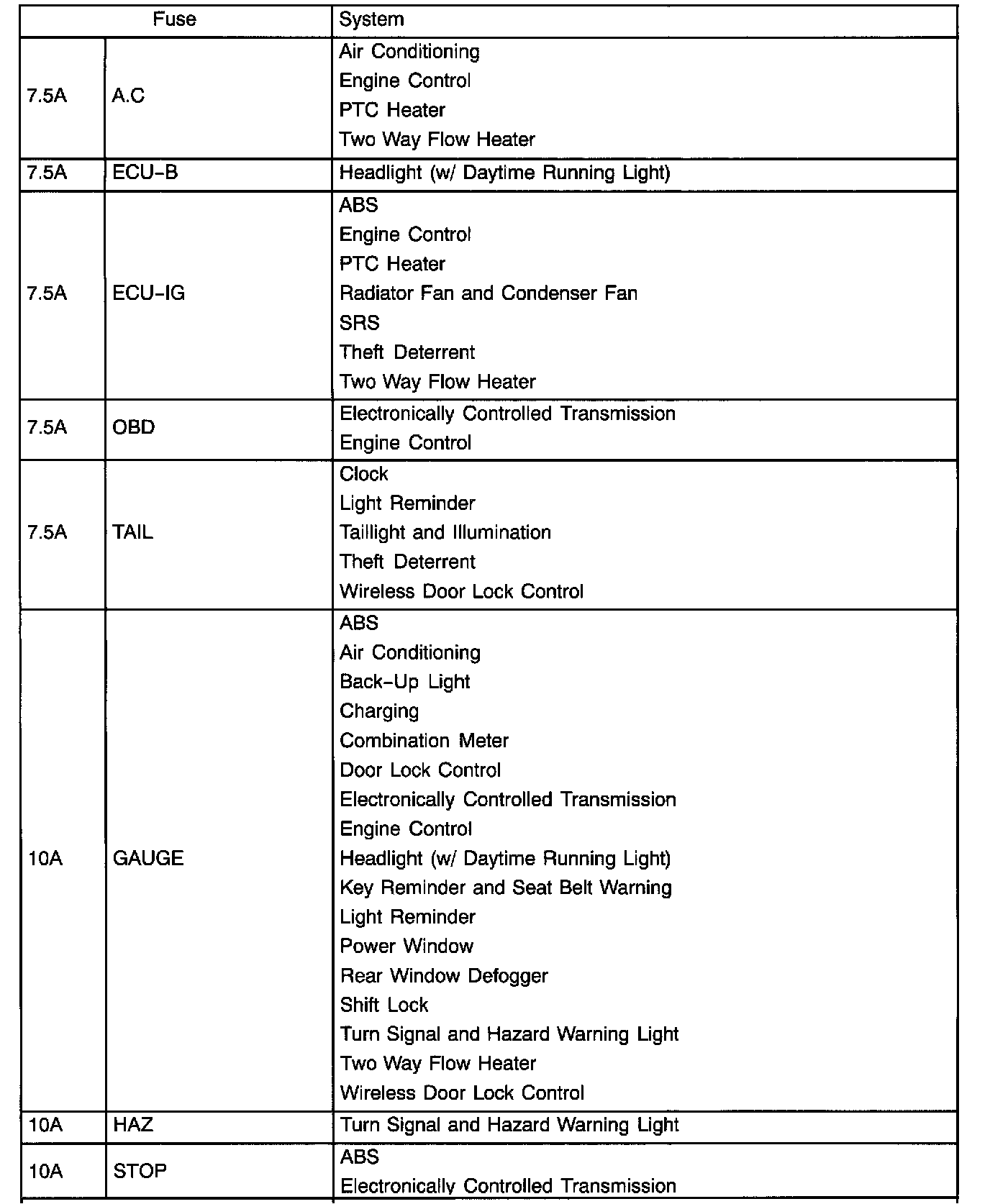

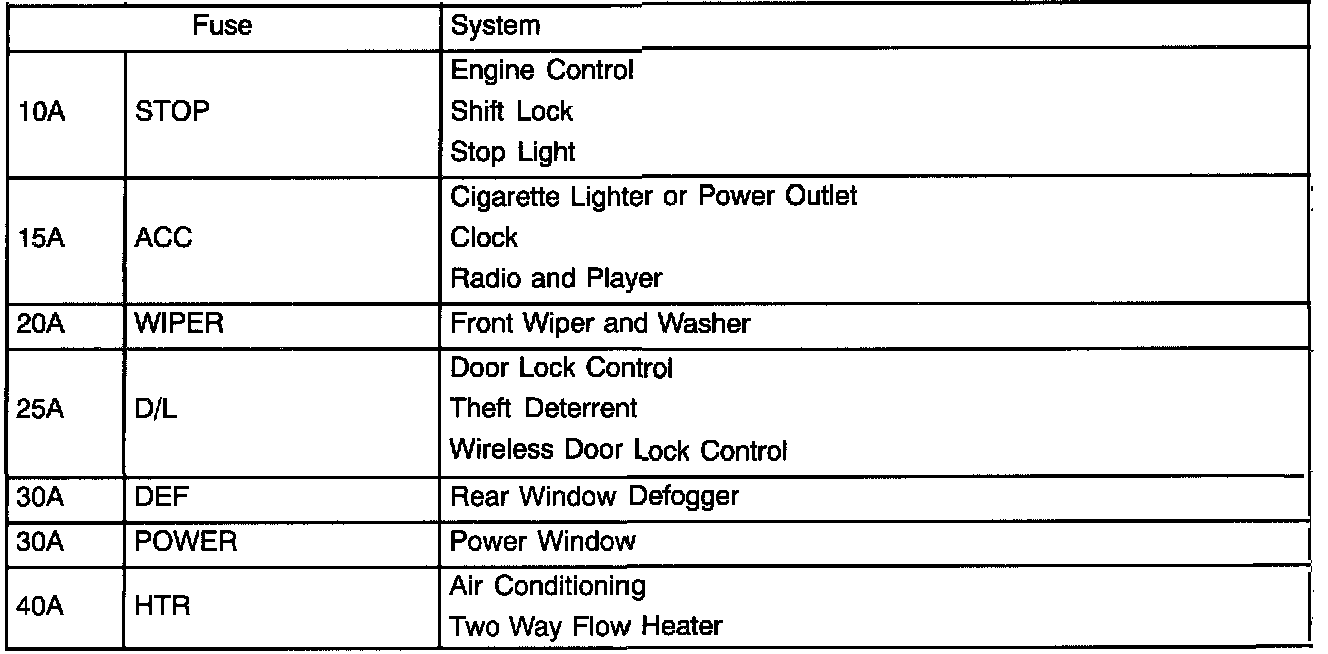

Fuse Identification
