Harness Locations
Harness Locations

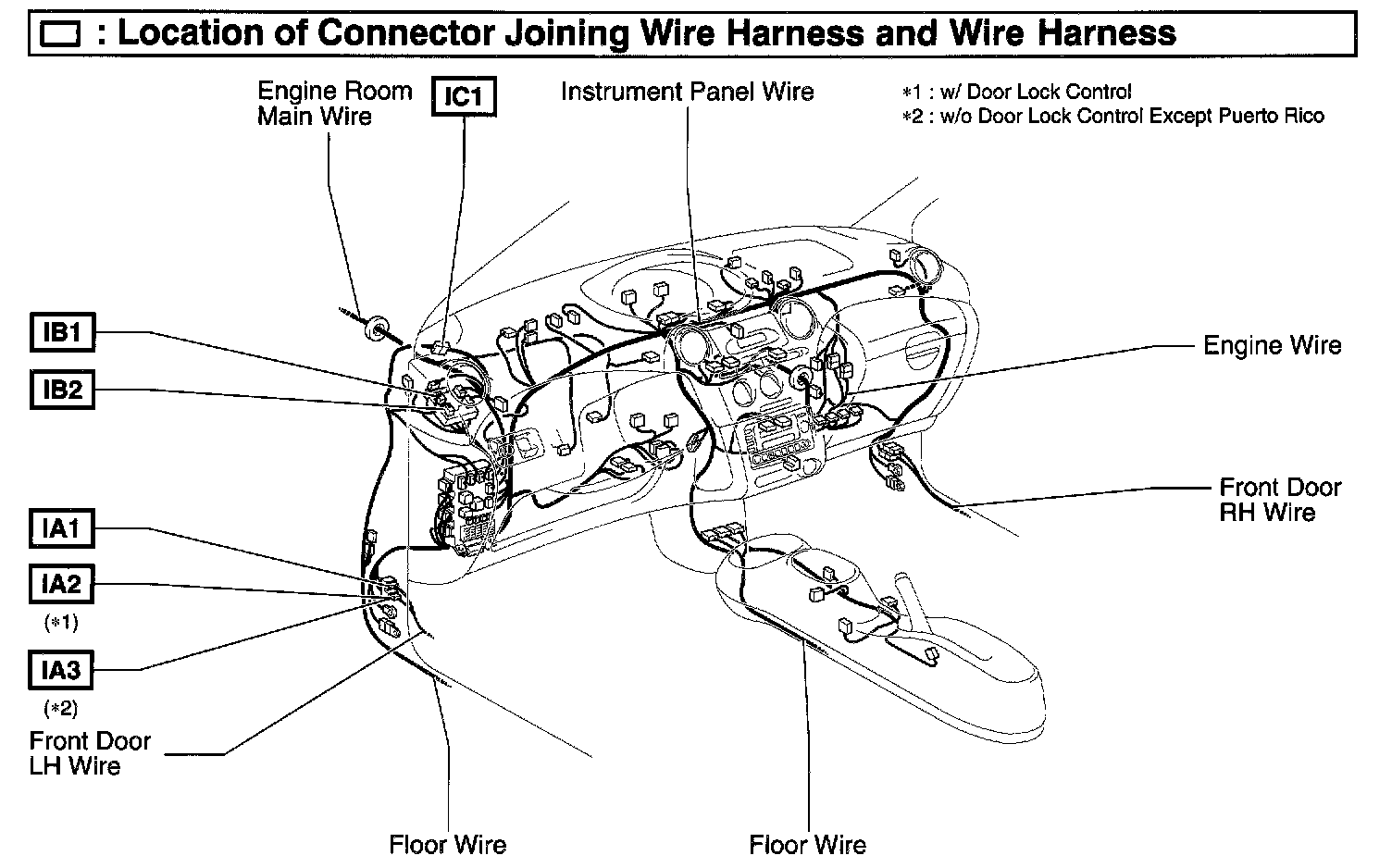

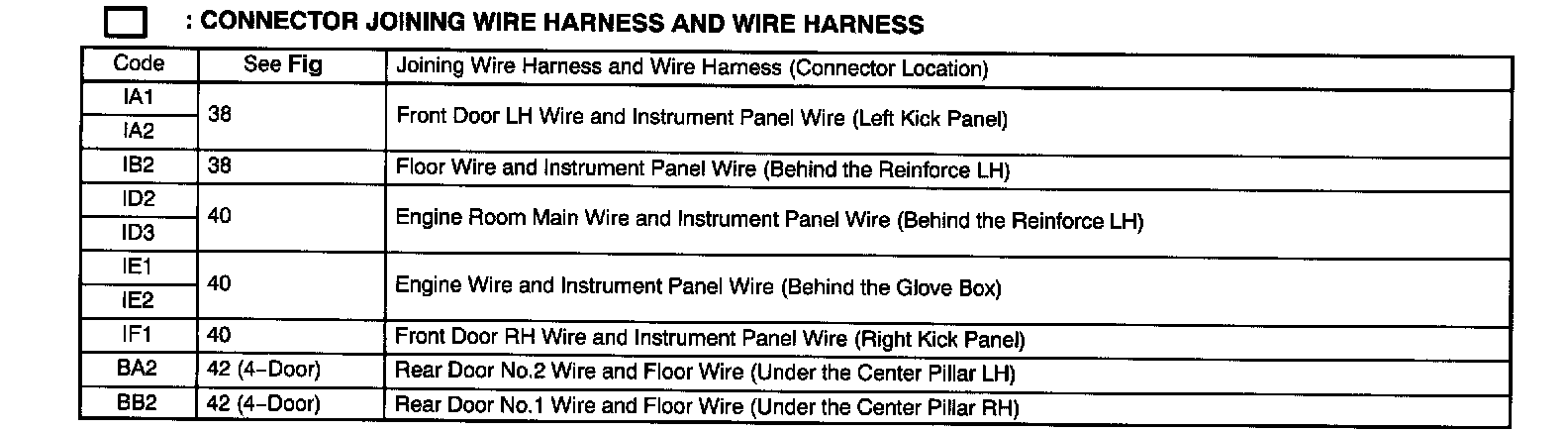

CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
FIG 38
FIG 40
FIG 42
