Multiple Junction Connector: Diagrams

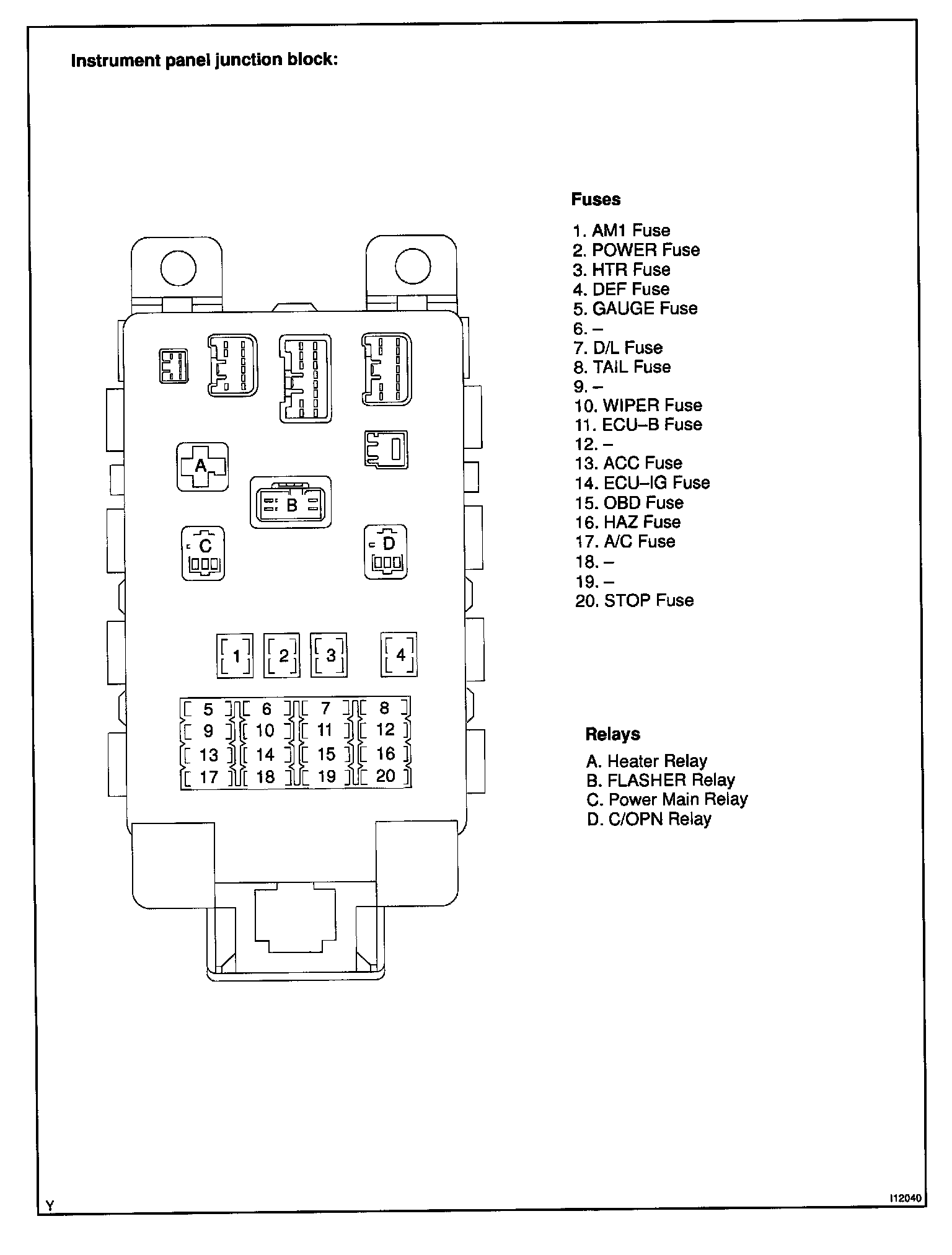

Instrument Panel Junction Block:



Engine Room Relay Block:



Fusible Link Block:
