Canada - MIL ON - DTC P0300/P030# (Misfires)

Bulletin
0902

Issue Date
2000-12-30

Reference
EE-00-001

Model
Echo

Year Range
2000

Market
Canada

Component
EE

Subject:
MIL "ON" P0300, P030#

Under certain conditions, some 2000 ECHO's may exhibit M.I.L. "ON" with DTC P0300 (Random Misfire) and/or P030# (Single Cylinder Misfire). The Engine Control Module (ECM) logic has been modified to correct this condition.

APPLICABLE VEHICLES:
2000 model year ECHO vehicles

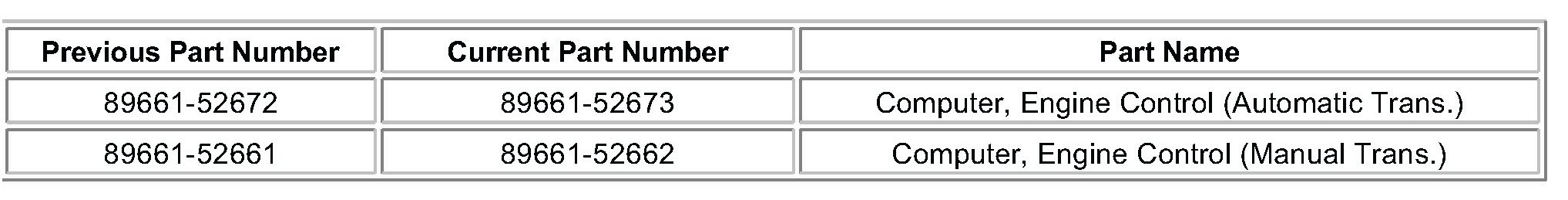

PRODUCTION CHANGE INFORMATION:

REPAIR PROCEDURE:
- Should a M.I.L. "ON" condition with DTC P0300 and/or P030# be encountered, perform diagnostic procedures as described in the Repair Manual.
- If the problem source cannot be identified after checking all affected areas according to the Repair Manual, the cause may be an ECM logic malfunction. In this case, replace the ECM with the updated part.





REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
