Canada - Seats - Front Seat Cushion Sensor Pad Improvements

Bulletin
1190

Issue Date
2003-01-09

Reference
BC-02-030

Model
Echo

Year Range
2000 ~ 2002

Market
Canada

Component
BC

Subject:

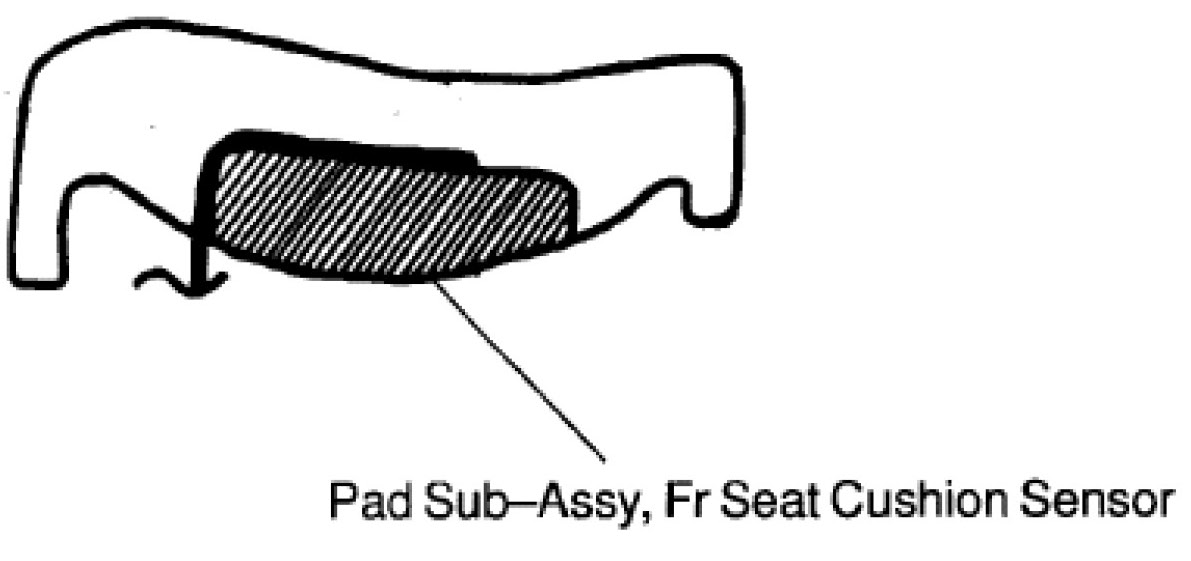

FRONT SEAT CUSHION SENSOR PAD SUB-ASSY







Changes have been made to improve the durability of the seat cushion sensor pad assembly. Repair by replacing the sensor pad sub-assy as indicated in this service bulletin.

APPLICABLE VEHICLES: 2000 - 2002 model year Echo vehicles.







PRODUCTION CHANGE INFORMATION:

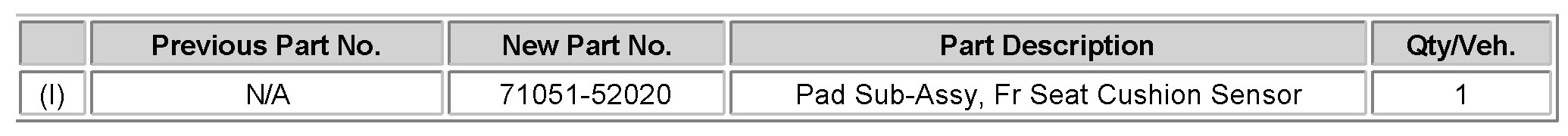

PARTS INFORMATION:

REPAIR PROCEDURE:

Replace the pad sub-assy, front cushion sensor with new service parts.

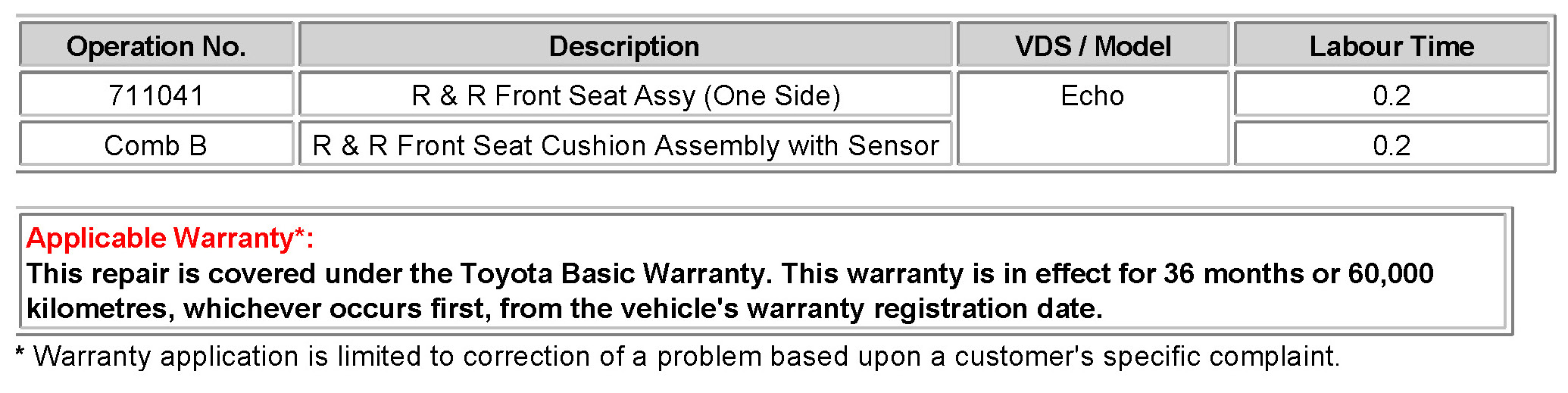

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
