Suspension - Rear Coil Spring Installation
SUSPENSIONSU001-07
Title:
REAR COIL SPRING INSTALLATION
Models:
'00 - '05 ECHO
May 3, 2007
Introduction
In the event that either or both of the rear coil springs are removed for any reason, use the following procedure to ensure the proper installation of the rear coil springs.
Applicable Vehicles
^ 2000 - 2005 model year ECHO vehicles.
Installation Procedure
The installation procedure is the same for both the LH and RH side.
1. Install the lower coil spring insulator onto the axle beam.

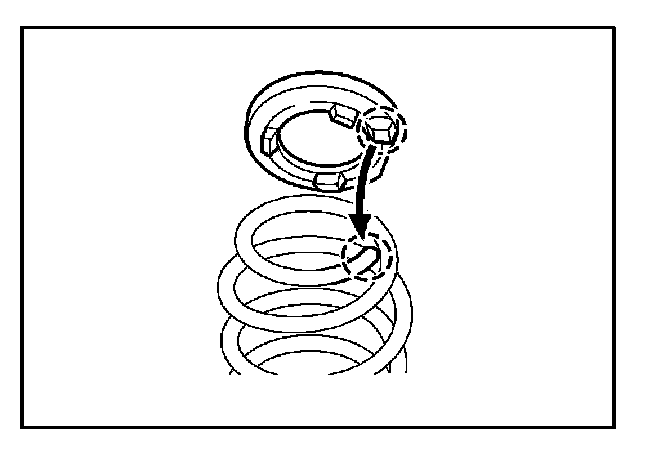

2. Install the upper coil spring insulator so that its gap fits onto the end of the coil spring.
3. Install the coil spring onto the lower coil spring insulator already installed on the axle beam.
The paint mark of the coil spring should be toward the axle beam and rear side of the vehicle.

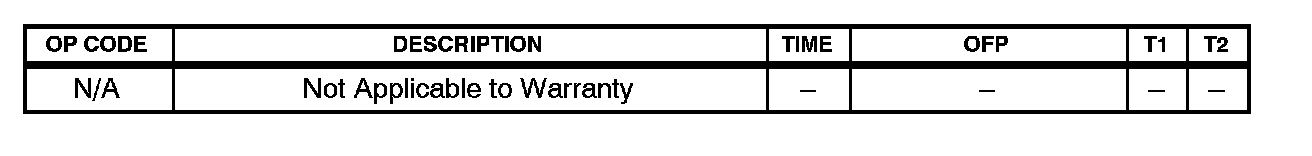

Warranty Information
