Automatic Transmission/Transaxle: Fundamentals and Basics

HOW TO DETERMINE BOLT STRENGTH:

HOW TO DETERMINE BOLT STRENGTH

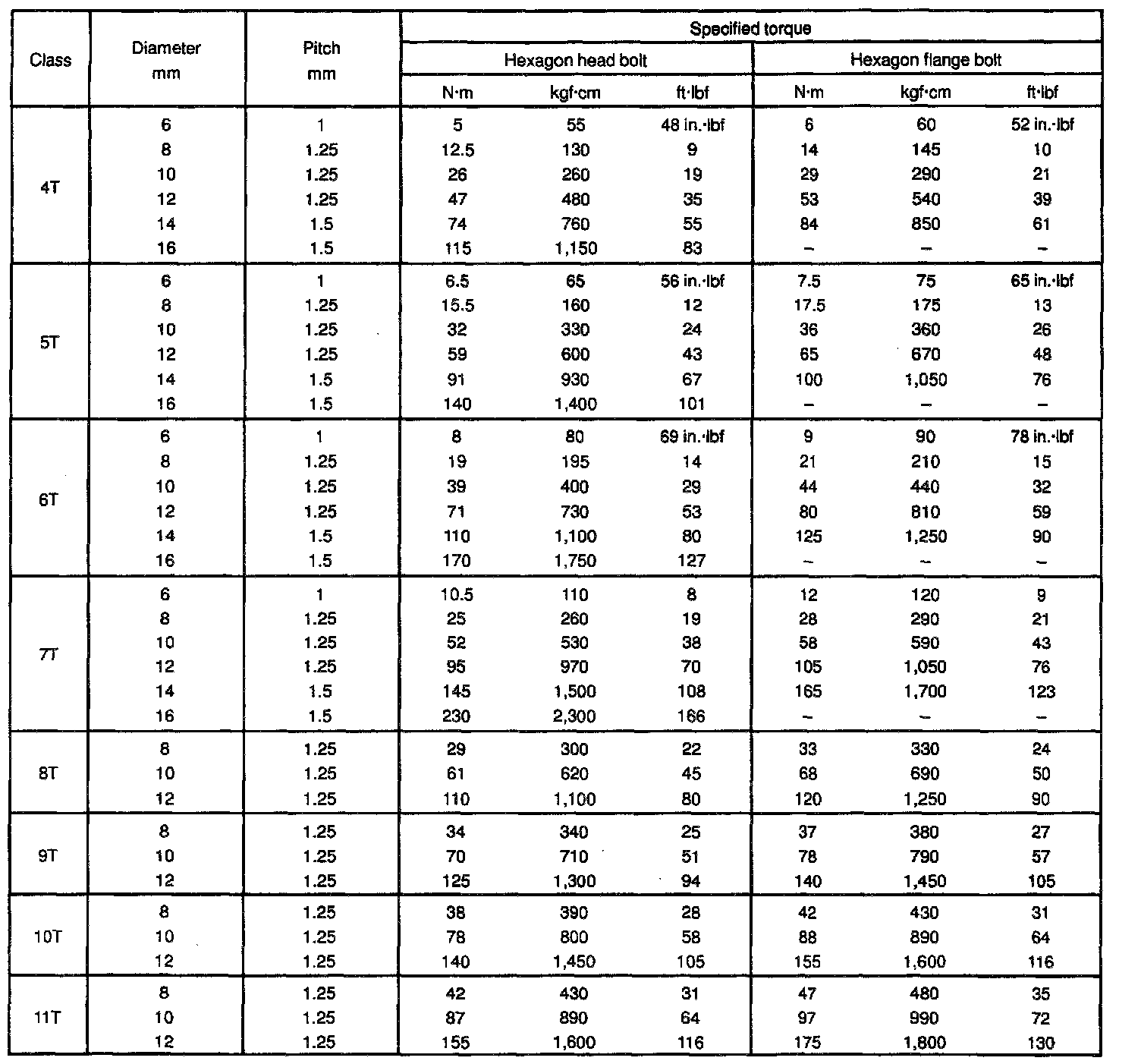

SPECIFIED TORQUE FOR STANDARD BOLTS:

SPECIFIED TORQUE FOR STANDARD BOLTS

HOW TO DETERMINE NUT STRENGTH

HOW TO DETERMINE NUT STRENGTH:

HINT: Use the nut with the same number of the nut strength classification or the greater than the bolt strength classification number when tightening parts with a bolt and nut.
Example: Bolt = 4T
Nut = 4N or more
